Product Details:
|
| Material: | Stainless Steel | Function: | For Automatic Loading Of Plastic Material |
|---|---|---|---|
| Color: | Grey Or Blue | Design: | Compact Design |
| Service Life: | More Than 5 Years | Application: | Plastic Material Automatic Suction |
| Product Name: | Plastic Loader | Usage: | Plastic Ganules Conveying Loading Machine |
| Highlight: | Plastic Granules Auto Hopper Loader,Plastic Resin Auto Hopper Loader |
||
OAL-S Seperate type Loader Auto Loading Machine.pd...
OAL- xxS
① ②
① Orste Auto-Loader
② Motor Power (HP)
S: Separate Type
The control device starts the vacuum motor to take out the air in the hopper, the material valve is closed meanwhile, thus negative pressure is created. With the function of negative pressure, material in the storage tank is delivered to the hopper through material pipe. The vacuum motor stops working when the suction time comes out, the material valve is opened by material, then material falls into injection machine or other equipment.
| Model | Motor Power | Conveying Capacity (kg/hr) | Motor Type | Vertical Conveying Height (m) | Horizontal Distance (m) | Power | Hopper Capacity (L) | |
| kw | hp | |||||||
| OAL-1.5S | 1.1 | 1.5 | 200 | Carbon Brush Type | 4 | 7.5 | 1ф, 230VAC, 50/60Hz | 7.5 |
| OAL-1S | 0.75 | 1 | 300 | Induction Type | 4 | 8 | 3ф, 400VAC, 50/60Hz | 7.5 |
| OAL-2S | 1.5 | 2 | 350 | Induction Type | 7 | 20 | 7.5 | |
| OAL-3S | 2.25 | 3 | 420 | Induction Type | 9.5 | 50 | 7.5 | |

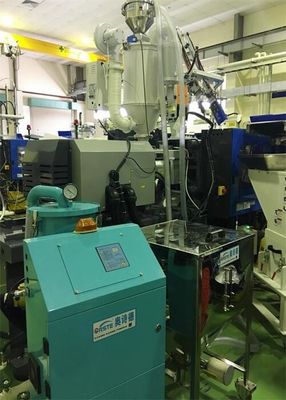

Two auto loaders take the task of feeding plastic materials to 4 pcs of hopper receivers which are installed at the top of a gravimetric blender. In this way, labor cost is greatly reduced and production capacity is significantly improved.

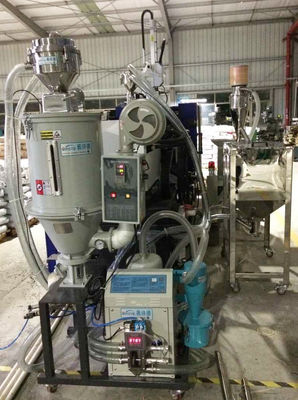

The auto loader is responsible for loading plastic resins from the plastic storage tank beside it and loading the dried plastic resins from the hopper dryer to the feed port of the injection molding machine for products production.

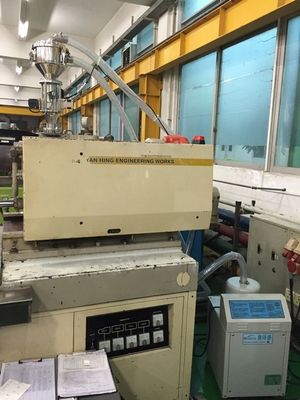

In this application, OAL-1S is placed beside the injection molding machine, and it is equipped with a photo-sensor hopper receiver, which is directly installed at the feed port of the injection machine. A photo-sensor hopper receiver is always applied when the plastic is hygroscopic and it is easy to absorb moisture after drying. In this way, when the dried plastic material is empty in the hopper receiver, the auto loader feed dried material from the dryer with appropriate volume.
