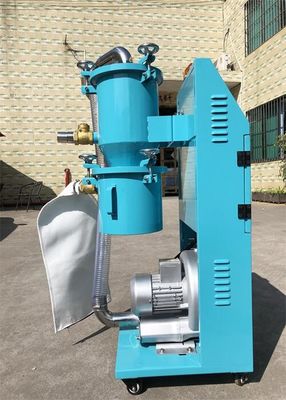

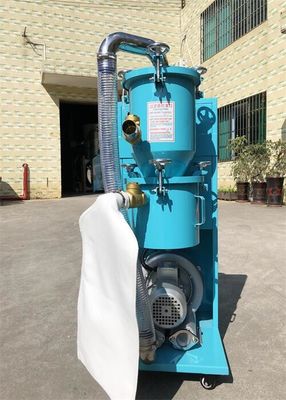

Plastic Separated Vacuum Auto Loader Feeder Loading Machine for Injection Extrusion

OAL-S Seperate type Loader Auto Loading Machine.pd...

Product Features of Plastic Granule Auto Loader

• Microprocessor for ease of use and accurate control.

• Stainless hopper receiver ensures no material contamination.

• Motor overload protector ensures long service life of motor.

• OAL-S loaders adopts stainless steel mesh thus avoids damage for the motor.

• Complete safety protection function device, like electricity indicator, phase-reversing alarm, material shortage and motor overloading alarm.

• Both micro-switch hopper (OMH) and photo-sensor hopper (OPH) can be directly mounted on the feed port of molding machine.

Functional Schem of Plastic Granule Auto Loader

The control device starts the vacuum motor to take out the air in the hopper, the material valve is closed meanwhile, thus negative pressure is created. With the function of negative pressure, material in the storage tank is delivered to the hopper through material pipe. The vacuum motor stops working when the suction time comes out, the material valve is opened by material, then material falls into injection machine or other equipment.

Specification of Plastic Granule Auto Loader

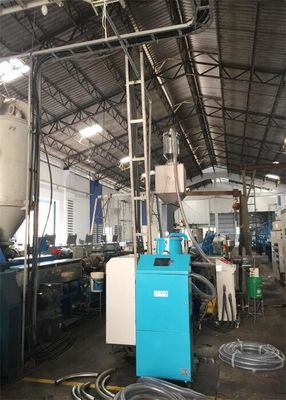

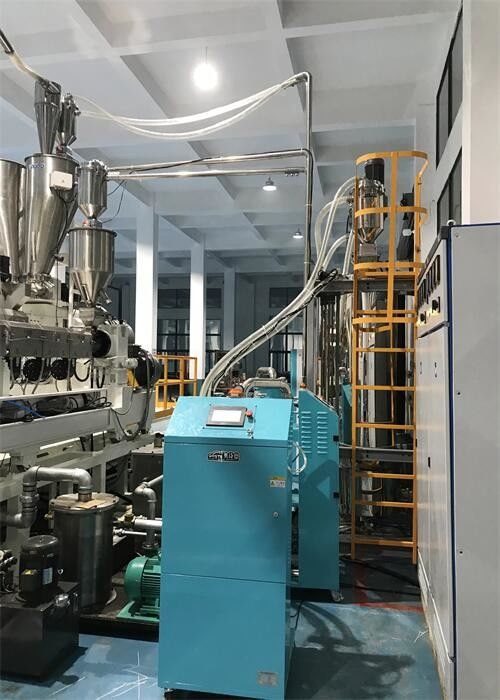

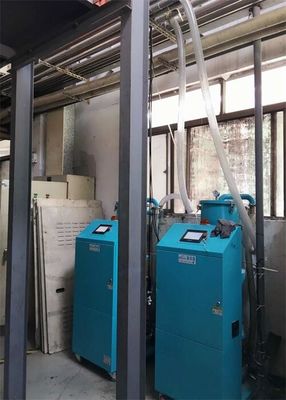

Application Cases of Plastic Granule Auto Loader

OAL-S series vacuum auto loader is usually work with micro-switch hopper receiver or photo-sensor hopper receiver to load the plastic materials to a specific location through the negative air pressure. Our latest OAL-S vacuum loader is standard equipped with auto dust collector function, significantly lower the frequency of filter cleaning and improve the lifespan of the machine.

Electric cabinet of OAL-S series is uniquely designed and equipped with water & dust proof seals to prevent dust and water from entering the electric cabinet to pollute the electric parts and shorten the lifespan of the machine. Air-dust window is installed at the right down place to air ventilation for the cabinet to lower the temperature when running.

OAL-S models can be customized according to the actual application, the vertical and horizontal distance, the plastic pellet bulk density affects the loading capacity. So normal information is required for correct model selection.

Exemption Clause

The following statements clarify the responsibilities and regulations born by any buyer or user who purchases products and accessories from ORSTE (including employees and agents).

ORSTE is exempted from liability for any costs, fees, claims and losses caused by reasons below:

1. Any careless or man-made installations, operation and maintenances upon machines without referring to the Manual prior to machine using.

2. Any incidents beyond human reasonable controls, which include man-made vicious or deliberate damages or abnormal power, and machine faults caused by irresistible natural disasters including fire, flood, storm and earthquake.

3. Any operational actions that are not authorized by ORSTE upon machine, including adding or replacing accessories, dismantling, delivering or repairing.

4. Employing consumables or oil media that are not appointed by ORSTE.

Note of Maintenance

1) Turn off the main switch and control switch and unplug the cord from power supply before service and maintenance.

2) Be sure not to modify electrical wiring or reassemble the electrical components inside of the control box.

3) Always refer to the electrical diagram of this manual to check and maintain the electrical wiring problems.

4) Service and maintenance of the electrical parts should only be carried out by qualified electricians.
