Plastic Automatic Loading Machine Hopper Loader with Environmental Color OAL-5S

OAL-S Seperate type Loader Auto Loading Machine.pd...

Plastic Loading Machine, Hopper Loader, Plastic Auto Loader, Plastic Loader, Plastic Machine

NAMING PRINCIPLE of Hopper Loader Vacuum Conveying

OAL- xxS

① ②

① Orste Auto-Loader

② Motor Power (HP)

S: Separate Type

FEATURES of Hopper Loader Vacuum Conveying

• Microprocessor for ease of use and accurate control.

• Stainless hopper receiver ensures no material contamination.

• Motor overload protector ensures long service life of motor.

• OAL-S loaders adopts stainless steel mesh thus avoids damage to the motor.

• For OAL-S series, auto dust-removing device is standardly equipped which saves labor cost for cleaning of filters and expand the lifespan of the machine.

• Complete safety protection function device, like electricity indicator, phase-reversing alarm, material shortage and motor overloading alarm.

• Both micro-switch hopper (OVH) and photo-sensor hopper (OPH) can be directly mounted on the feed port of molding machine.

FUNCTIONAL SCHEME of Hopper Loader Vacuum Conveying

The control device starts the vacuum motor to take out the air in the hopper, the material valve is closed meanwhile, thus negative pressure is created. With the function of negative pressure, material in the storage tank is delivered to the hopper through material pipe. The vacuum motor stops working when the suction time comes out, the material valve is opened by material, then material falls into injection machine or other equipment.

PARAMETERS of Hopper Loader Vacuum Conveying

Machine Details of Hopper Loader Vacuum Conveying

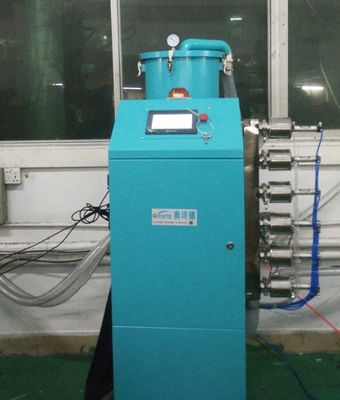

ORSTE's OAL-S series auto loader features flexibility in movement, compact in size, novel in design. It is standardly equipped with auto self-cleaning for the filters, greatly lowered the frequency for cleaning filters manualy and expand the service life of the machine.
