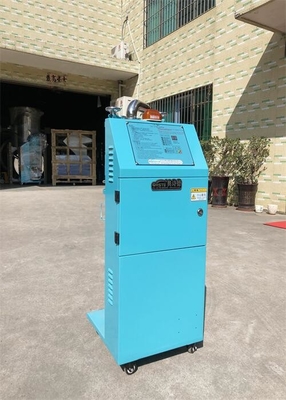

Detachable Vacuum Auto Loader Large Flow Blower Automatic Loading Machine 3.7KW

Detachable Vacuum Auto Loader Large Flow Blower Automatic Loading Machine 3.7KW
Detachable Vacuum Auto Loader Large Flow Blower Automatic Loading Machine 3.7KW Detachable Vacuum Auto Loader Large Flow Blower Automatic Loading Machine 3.7KW Detachable Vacuum Auto Loader Large Flow Blower Automatic Loading Machine 3.7KW Detachable Vacuum Auto Loader Large Flow Blower Automatic Loading Machine 3.7KW

Large Image :  Detachable Vacuum Auto Loader Large Flow Blower Automatic Loading Machine 3.7KW

Product Details:
Place of Origin: Dongguan, China
Brand Name: ORSTE
Certification: CE, ISO, SGS
Model Number: OAL-5S
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set / Order
Price: USD 890 / SET
Packaging Details: Standard Export Packing
Delivery Time: 7-15 days
Payment Terms: TT, LC, Paypal, West Union, Cash
Supply Ability: 500-3000 Sets / Year

Detachable Vacuum Auto Loader Large Flow Blower Automatic Loading Machine 3.7KW

Description
Color: Gray Material: Stainless Steel
Application: Conveying Plastic Resin Function: Vacuum Loading
Lifetime: More Than 5 Years Motor Type: Induction
Motor: 3.7Kw Warranty: 12 Months,1 Year+Lifetime Technical Support
Highlight:

Detachable Vacuum Auto Loader

,

3.7KW Vacuum Auto Loader

,

SGS Vacuum Automatic Loading Machine

Detachable Vacuum Auto Loader Large Flow Blower Automatic Loading Machine

OAL-S Seperate type Loader Auto Loading Machine.pd...



Autoloader, Material Loader, Material Loading Machine, Plastic Loader, Plastic Loading Machine, Plastic Loading Equipment, Vacuum Loader, Automatic Loader, Detachable Loader, Detachable Vacuum Loader, Auto Loader



NAMING PRINCIPLE of Auto Hopper Loader



OAL- xxS

①      ②

① Orste Auto-Loader

② Motor Power (HP)

S: Separate Type



FEATURES of Auto Hopper Loader

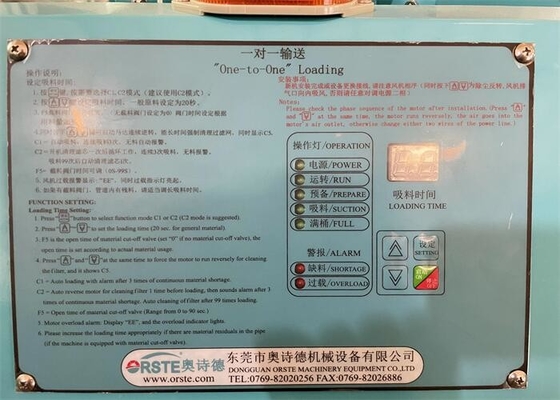

  • Microprocessor for ease of use and accurate control.
  • Stainless hopper receiver ensures no material contamination.
  •  Motor overload protector ensures long service life of motor.
  • OAL-S loaders adopts stainless steel mesh thus avoids damage to the motor.
  • Complete safety protection function device, like electricity indicator, phase-reversing alarm, material shortage and motor overloading alarm.
  • Auto De-dusting function is standard equipped for OAL-S series.
  • Both micro-switch hopper (OVH) and photo-sensor hopper (OPH) can be directly mounted on the feed port of molding machine.



FUNCTIONAL SCHEME of Auto Hopper Loader



The control device starts the vacuum motor to take out the air in the hopper, the material valve is closed meanwhile, thus negative pressure is created. With the function of negative pressure, material in the storage tank is delivered to the hopper through material pipe. The vacuum motor stops working when the suction time comes out, the material valve is opened by material, then material falls into injection machine or other equipment.



PARAMETERS of Auto Hopper Loader



Model

Motor Power

Conveying Capacity (kg/hr)

Motor Type

Vertical Conveying Height (m)

Horizontal Distance (m)

Power

Hopper Capacity (L)

kw

hp

OAL-1.5S

1.1

1.5

200

Carbon Brush Type

4

7.5

1ф, 230VAC, 50/60Hz

7.5

OAL-1S

0.75

1

300

Induction Type

4

8

3ф, 400VAC, 50/60Hz

7.5

OAL-2S

1.5

2

350

Induction Type

7

20

7.5

OAL-3S

2.25

3

420

Induction Type

9.5

50

7.5

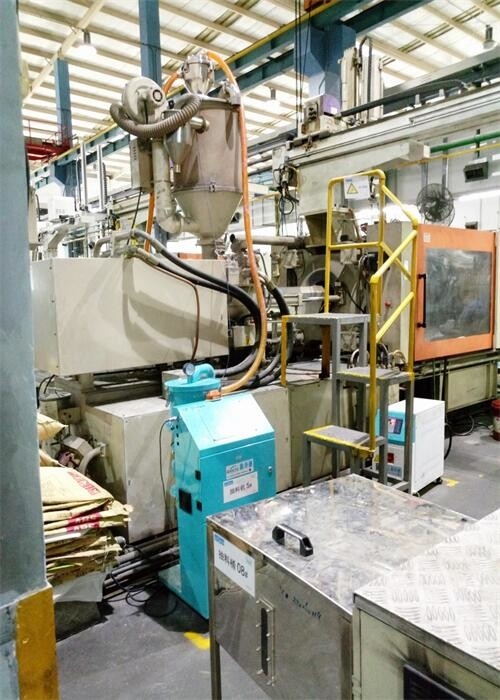

APPLICATION CASES of Auto Hopper Loader



Detachable Vacuum Auto Loader Large Flow Blower Automatic Loading Machine 3.7KW 0



OAL-S series vacuum auto loader is usually work with micro-switch hopper receiver or photo-sensor hopper receiver to load the plastic materials to a specific location through the negative air pressure. Our latest OAL-S vacuum loader is standard equipped with auto dust collector fucntion, significantly lower the frequency of filter cleaning and improve the lifespan of the machine.



Detachable Vacuum Auto Loader Large Flow Blower Automatic Loading Machine 3.7KW 1



Matters Needing Attention



Electrical installation of the machine should be done by qualified electricians.



Connecting the cooling water (if needed) after the machine is installed in a appointing place, make sure the inlet and outlet water pipe is in good condition.



Before connecting to AC Power Source, turn power switch to OFF position. While AC power source is connected, make sure specifications and overload protection rating of the power switch are suitable and reliable. When the machine is under care or maintenance, turn off both power switch and automatic operation switch.
