Plastic Rotary Honeycomb Industrial Desiccant Dehumidifier ORD-1000H PET PCTG Drying

ORD-H Honeycomb Desiccant Dehumidifier Dryer.pdf

Product Features of Industrial Desiccant Dehumidifier

• P.I.D temperature controller to accurately control regenerative temperature.
• Adopt Japan Nichias molecular sieve honeycomb rotor which ensures good stable dehumidifying effect.
• Detachable cooler is equipped for over-sized model, easy for maintenance and keeps a low return air temperature.
• High density return air filter ensures no contamination to the honeycomb.
• For models below ORD-400H, air cooling method is applied. No need to apply chilled water to cool down the temperature of return air. Thus saves energy and humistic.
• Temperature indication function for dehumidified outlet air temperature.
• Efficient oil filter is optional. 99% of oil can be removed, thus product quality can be greatly improved.

Application of Industrial Desiccant Dehumidifier

ORD-H series rotary honeycomb dehumidifiers are mainly used to dry hygroscopic engineering plastics or regrind materials. Under ideal conditions, the dew-point of dehumidified dry air can be lower than -60^oC, the largest of which can provide dry air up to a quantity of 4,000 m³/hr.

Specifications of Industrial Desiccant Dehumidifier

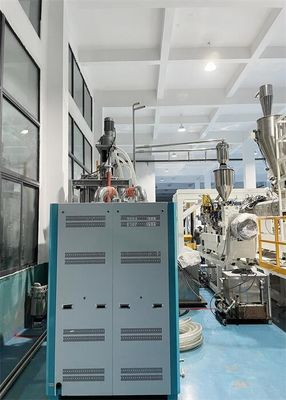

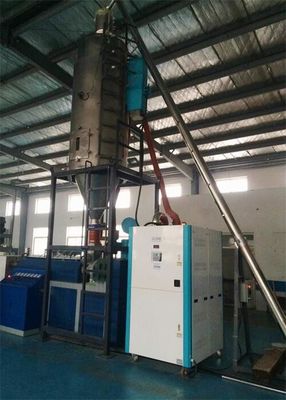

Application Cases of Industrial Desiccant Dehumidifier

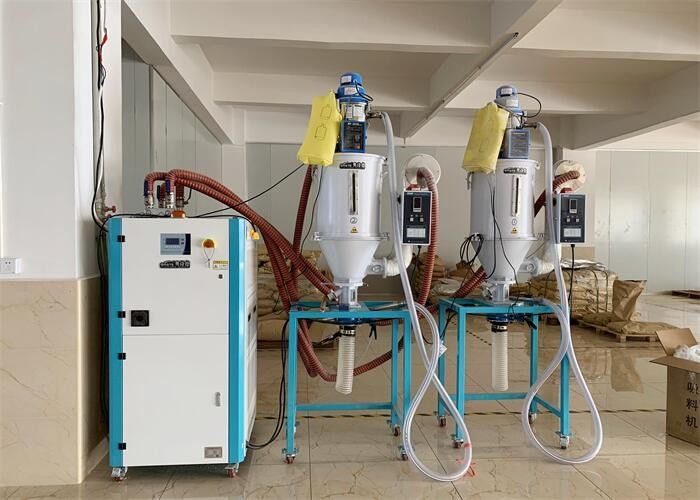

ORD-H series honeycomb dehumidifier is powerful for its low dew point, low energy consumption, long service life, less maintenance cost, easy installation in application. A dehumidifier can be equipped with 1 or more OHD-O hopper dryers to provide dry air for a better drying effect. It is specially suitable for drying of hygroscopic plastic resins, like TPU, PET, PLA, PC, PA, PETG, PCTG, PPA and etc.

Matters Needing Attention

Electrical installation of the machine should be done by qualified electricians.

Before connecting to AC Power Source, turn power switch to OFF position. While AC power source is connected, make sure specifications and overload protection rating of the power switch are suitable and reliable. When the machine is under care or maintenance, turn off both power switch and automatic operation switch.
