Industrial Desiccant Dehumidifier ORD-1000H Provide Dry Air Hygroscopic Resin TPU

Industrial Desiccant Dehumidifier ORD-1000H Provide Dry Air Hygroscopic Resin TPU
Industrial Desiccant Dehumidifier ORD-1000H Provide Dry Air Hygroscopic Resin TPU
Industrial Desiccant Dehumidifier ORD-1000H Provide Dry Air Hygroscopic Resin TPU Industrial Desiccant Dehumidifier ORD-1000H Provide Dry Air Hygroscopic Resin TPU Industrial Desiccant Dehumidifier ORD-1000H Provide Dry Air Hygroscopic Resin TPU Industrial Desiccant Dehumidifier ORD-1000H Provide Dry Air Hygroscopic Resin TPU Industrial Desiccant Dehumidifier ORD-1000H Provide Dry Air Hygroscopic Resin TPU

Large Image :  Industrial Desiccant Dehumidifier ORD-1000H Provide Dry Air Hygroscopic Resin TPU

Product Details:
Place of Origin: Dongguan, China
Brand Name: ORSTE
Certification: CE, ISO, SGS
Model Number: ORD-1000H
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set / Order
Price: 2,000~8,000 USD/Set
Packaging Details: Standard Export Packing
Delivery Time: 7-15 days
Payment Terms: TT, LC, Paypal, West Union, Cash
Supply Ability: 500-3000 Sets / Year
Minimum Order Quantity: 1 Set

Industrial Desiccant Dehumidifier ORD-1000H Provide Dry Air Hygroscopic Resin TPU

Description
Drying Method: Hot Dry Air Color: Customized
Function: Generate Dry Air Option: Heat Recovery System
Condition: New After-sales Service Provided: Online Support
Warranty: 1 Year,12~36 Months Certification: CE, IOS, SGS
Highlight:

Resin Industrial Desiccant Dehumidifier

,

ISO Industrial Desiccant Dehumidifier

,

TPU Honeycomb Desiccant Dehumidifier

Industrial Desiccant Dehumidifier ORD-1000H Provide Dry Air Hygroscopic Resin TPU

ORD-H Honeycomb Desiccant Dehumidifier Dryer.pdf



Product Features of Plastic Material Dehumidifying Dryer

  • P.I.D temperature controller to accurately control regenerative temperature.
  • Adopt Japan Nichias molecular sieve honeycomb rotor which ensures good stable dehumidifying effect.
  • Detachable cooler is equipped for over-sized model, easy for maintenance and keeps a low return air temperature.
  • High density return air filter ensures no contamination to the honeycomb.
  • Temperature indication function for dehumidified outlet air temperature.
  • Efficient oil filter is optional. 99% of oil can be removed, thus product quality can be greatly improved.
  • On-line dew point monitor is optional for on-time display of drying effect.
  • For models below ORD-300H, air-cooling method is optional for energy-saving and easy to move for flexible applications.

Application of Plastic Material Dehumidifying Dryer



ORD-H series rotary honeycomb dehumidifiers are mainly used to dry hygroscopic engineering plastics or regrind materials. Under ideal conditions, the dew-point of dehumidified dry air can be lower than -50oC, the largest of which can provide dry air up to a quantity of 4,000 m3/hr.



Drying Capacity of Plastic Material Dehumidifying Dryer



Material Drying Temp. (oC) Drying Time (hr) Specific Heat (kcg/kg. oC) Bulk Density (kg/L) Moisture Content before Drying (%) Moisture Content after Drying (%) Drying Capacity (kg/hr) ORD-
60H 80H 120H 150H 200H 300H 400H 700H 1000H 1500H 2000H 3000H 4000H
ABS 80 2-3 0.34 0.6 0.3 0.02 18 27 35 71 105 180 210 355 425 710 1065 1500 1600
CA 75 2-3 0.5 0.5 1 0.02 15 22 30 60 90 150 180 295 355 590 885 1200 1330
CAB 75 2-3 0.5 0.5 0.8 0.02 15 22 30 60 90 150 180 295 355 590 885 1200 1330
CP 75 2-3 0.6 0.6 1 0.02 18 27 35 71 106 180 210 355 425 710 1060 1500 1600
LCP 150 4 0.6 0.6 0.04 0.02 13 20 27 55 80 135 160 265 320 530 800 1150 1200
POM 100 2 0.35 0.6 0.2 0.02 27 40 53 105 160 265 320 530 640 1060 1600 1800 2400
PMMA 80 3 0.35 0.65 0.5 0.02 19 29 38 77 115 192 230 383 460 767 1150 1530 1730
IONOMER 90 3-4 0.55 0.5 0.1 0.04 11 17 22 44 66 111 133 220 265 442 663 750 1000
PA6/6.6/6.10 75 4-6 0.4 0.65 1 0.05 10 14 19 38 58 96 115 192 230 383 575 960 1040
PA11 75 4-5 0.58 0.65 1 0.05 12 17 23 46 69 115 138 230 275 460 690 780 1150
PA12 75 4-5 0.28 0.65 1 0.05 12 17 23 46 69 115 138 230 275 460 690 780 1150
PC 120 2-3 0.28 0.7 0.3 0.01 21 31 41 83 124 206 250 413 495 826 1238 1400 1860
PU 90 2-3 0.45 0.65 0.3 0.02 19 29 38 77 115 190 230 383 460 767 1150 1530 2080
PBT 130 3-4 0.3-0.5 0.7 0.2 0.02 15 23 31 62 93 155 186 310 372 620 930 1100 1600
PE 90 1 0.55 0.6 0.01 <0.01 53 80 106 212 318 531 637 1062 1275 2125 3185 3600 4800
PEI 150 3-4 0.6 0.6 0.25 0.02 13 20 27 53 80 133 160 265 320 530 800 1030 1370
PET 160 4-6 0.3-0.5 0.85 0.2 0.05 13 19 25 50 75 125 150 250 300 500 750 1150 1360
PETG 70 3-4 0.6 0.6 0.5 0.02 13 20 27 53 80 133 160 265 320 530 800 1030 1370
PEN 170 5 0.85 0.85 0.1 0.05 15 23 30 60 90 150 180 300 360 600 900 1150 1360
PES 150 4 0.7 0.7 0.8 0.02 15 23 30 60 90 150 180 300 360 600 900 1050 1400
PMMA 80 3 0.65 0.65 0.5 0.02 19 29 28 77 115 190 230 385 460 765 1150 1530 1730
PPO 110 1-2 0.4 0.5 0.1 0.04 22 33 44 88 133 220 265 440 530 885 1330 1730 2660
PPS 150 3-4 0.6 0.6 0.1 0.02 13 20 27 53 80 133 160 265 320 530 800 1030 1370
PI 120 2 0.27 0.6 0.4 0.02 27 40 53 105 160 265 320 530 640 1060 1600 1800 2400
PP 90 1 0.46 0.5 0.1 0.02 44 66 88 180 265 442 530 885 1060 1770 2655 3500 4000
PS(GP) 80 1 0.28 0.5 0.1 0.02 44 66 88 180 265 442 531 885 1062 1770 2655 3500 4000
PSU 120 3-4 0.31 0.65 0.3 0.02 14 22 29 60 85 145 173 290 345 575 865 1300 1485
PVC 70 1-2 0.2 0.5 0.1 0.02 22 33 44 90 135 220 265 442 530 885 1330 1730 2660
SAN(AS) 80 1-2 0.32 0.5 0.1 0.05 22 33 44 90 135 220 265 442 530 885 1330 1730 2660
TPE 110 3 0.7 0.7 0.1 0.02 20 30 40 85 125 205 250 413 495 826 1238 1650 1860



PARAMETERS of Plastic Material Dehumidifying Dryer



Model ORD- 60H 80H 120H 150H 200H 300H 400H 500H 700H 1000H 1500H 2000H 3000H 4000H
Rege. Heater (kw) 2.5 2.5 2.5 2.5 2.5 8 8 12 12 15 20 20 32 40
Rege. Blower (kw) 0.2 0.2 0.2 0.2 0.4 0.7 0.7 1.3 1.6 1.6 2.2 3 2.2*2 3×2
Process Heater (kw) * 2.5 4 6 8 12 15 18 21 24 32 58 80 96 128
Process Blower (kw) 0.4 0.7 0.7 1.3 1.1 3 4 5.5 5.5 8.5 12.5 18.5 12.5×2 15×2
Drying Air Quantity (m3/hr) 60 80 120 150 200 300 400 500 700 1000 1500 2000 3000 4000
Pipe Dia. (inch) 2〞 2〞 2〞 2〞 2〞 3〞 3〞 4〞 5〞 5〞 6〞 8〞 8〞 12〞
Dimension H (mm) 1260 1510 1360 1560 1560 1745 1745 1935 1935 2145 2060 2060 2240 2060
W (mm) 480 600 600 660 660 900 700 900 900 1300 1410 1410 2035 2750
D (mm) 755 761 761 1050 1050 1100 1255 1380 1380 1550 2150 2150 2160 2250
Weight (kg) 145 170 220 260 285 320 330 470 480 700 1010 1300 1600 2200

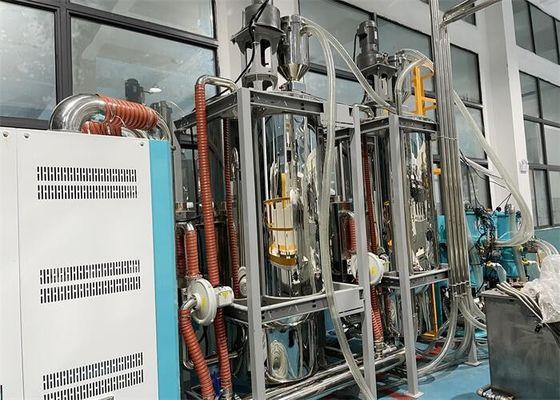

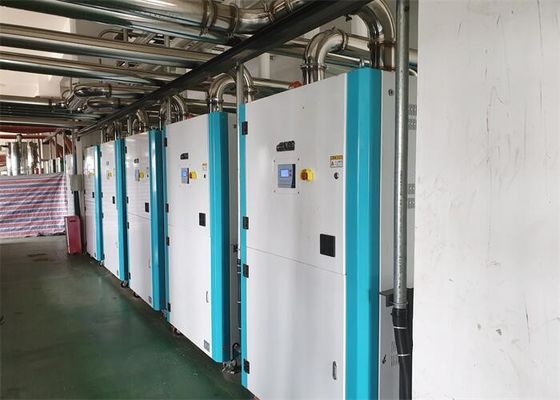

Application Cases of Plastic Material Dehumidifying Dryer




Industrial Desiccant Dehumidifier ORD-1000H Provide Dry Air Hygroscopic Resin TPU 0Industrial Desiccant Dehumidifier ORD-1000H Provide Dry Air Hygroscopic Resin TPU 1
