Product Details:
|
Material: | Stainless Steel And Spare Parts | Structure: | Steel Structure |
---|---|---|---|
Color: | Blue And White | Application: | In Hygroscopic Plastic Resin Drying |
Condition: | New | Warranty: | 12~36 Months |
After-sales Service Provided: | Overseas Third-party Support Available | Certification: | CE,ISO |
Highlight: | Plastic Resin Desiccant Dehumidifier Industrial,PET Desiccant Dehumidifier Industrial,Honeycomb Wheel PET Drying Machine |
ORD-H Honeycomb Desiccant Dehumidifier Dryer.pdf
ORD-H series rotary honeycomb dehumidifiers are mainly used to dry hygroscopic engineering plastics or regrind materials. Under ideal conditions, the dew-point of dehumidified dry air can be lower than -60oC, the largest of which can provide dry air up to a quantity of 4,000 m3/hr.
Model ORD- | 60H | 80H | 120H | 150H | 200H | 300H | 400H | 500H | 700H | 1000H | 1500H | 2000H | 3000H | 4000H | |
Rege. Heater (kw) | 2.5 | 2.5 | 2.5 | 4 | 6 | 8 | 8 | 12 | 12 | 15 | 20 | 20 | 32 | 40 | |
Rege. Blower (kw) | 0.2 | 0.2 | 0.2 | 0.4 | 0.4 | 0.7 | 0.7 | 1.3 | 1.6 | 1.6 | 2.2 | 3 | 2.2*2 | 3×2 | |
Process Heater (kw) | 2.5 | 4 | 6 | 8 | 12 | 15 | 18 | 21 | 24 | 32 | 58 | 80 | 96 | 128 | |
Process Blower (kw) | 0.4 | 0.7 | 0.7 | 1.3 | 1.3 | 3 | 4 | 5.5 | 5.5 | 8.5 | 12.5 | 18.5 | 12.5×2 | 15×2 | |
Drying Air Quantity (m3/hr) | 60 | 80 | 120 | 150 | 200 | 300 | 400 | 500 | 700 | 1000 | 1500 | 2000 | 3000 | 4000 | |
Pipe Dia. (inch) | 2〞 | 2〞 | 2.5〞 | 2.5〞 | 2.5〞 | 3〞 | 3〞 | 4〞 | 5〞 | 5〞 | 6〞 | 8〞 | 8〞 | 12〞 | |
Dimension | H (mm) | 1260 | 1360 | 1360 | 1560 | 1560 | 1745 | 1745 | 1935 | 1935 | 2145 | 2060 | 2060 | 2240 | 2060 |
W (mm) | 480 | 530 | 530 | 660 | 660 | 700 | 700 | 900 | 900 | 1300 | 1410 | 1410 | 2035 | 2750 | |
D (mm) | 755 | 820 | 820 | 1050 | 1050 | 1255 | 1255 | 1380 | 1380 | 1550 | 2150 | 2150 | 2160 | 2250 | |
Weight (kg) | 145 | 170 | 220 | 260 | 285 | 320 | 330 | 470 | 480 | 700 | 1010 | 1300 | 1600 | 2200 |

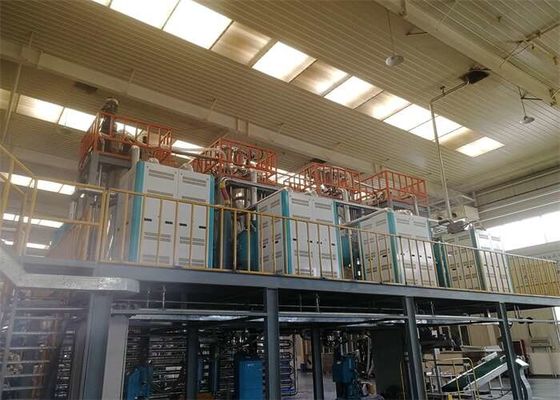

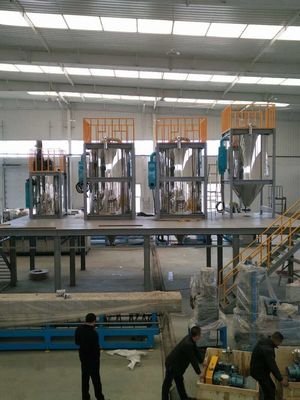

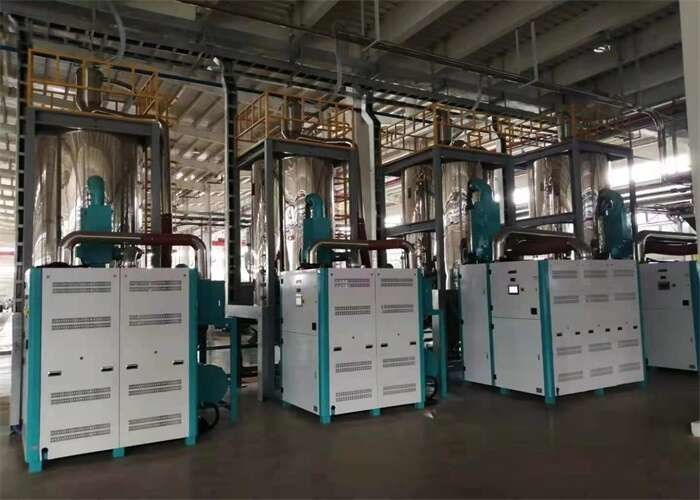

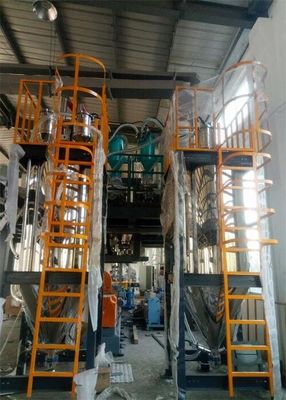

ORD-H series honeycomb dehumidifier is powerful for its low dew point, low energy consumption, long service life, less maintenance cost, easy installation in application. A dehumidifier can be equipped with 1 or more OHD-O hopper dryers to provide dry air for a better drying effect. It is specially suitable for drying of hygroscopic plastic resins, like TPU, PET, PLA, PC, PA, PETG, PCTG, PPA and etc.
ORSTE’s large scale Central Material Conveying System and cooling water circulation system including three major systems of centralized raw material drying, water temperature control and metering & mixing, are extensively applied in plastic injection molding industry.
The main products of the company are a series of high-tech products including Desiccant Honeycomb Dehumidifiers, Hopper Dryers, “Three-in-one” Compact Dryers, Auto / Semi-auto Weighing & Packing Machine (for plastic 25kg packages), Auto-loaders, Mold Temperature Controllers, Industrial Chillers, Mixers and Blenders, Masterbatch Dosers, Granulators, and Vibrating Screens.
