Plastic Resin Single Vacuum Auto loader Machine 200 Kg/H Throughput

OAL-12X 1-to-more Loader Loading Machine.pdf


Autoloader, Plastic Loader, Plastic Autoloader, Vacuum Loader, Automatic Loader, Loading Machine, Material Autoloader

NAMING PRINCIPLE of Plastic Auto Loader

OAL- xxx - xx
①   ②   ③
① Orste Auto-Loader
② Motor Power (HP)
③ Notes
P: Equipped with Photo-sensor hopper receiver


FEATURES of Plastic Auto Loader

• OAL adopts carbon brush motor with fast rotating speed and large air quantity.
• Small space occupation and easy movement and installation.
• Wire-control controller is user-friendly,automatic cleaning function is optional.
• Hopper and base mount positions are adjustable.
• Equipped with micro-switch with high sensitivity and stable quality
• Equipped with hinged handle hopper lid that connected by hinges for easy mesh cleaning.
• Complete safety protection function device, like material shortage alarm.
• Completely avoid the danger of manually loading material, thus save manpower cost and improve work efficiency.

FUNCTIONAL SCHEME of Plastic Auto Loader

The control device starts the vacuum motor to take out the air in the hopper, the material valve is closed meanwhile, thus negative pressure is created. With the function of negative pressure, material in the storage tank is delivered to the hopper through material pipe. The vacuum motor stops working when the suction time comes out, the material valve is opened by material, then material falls into injection machine or other equipment.


PARAMETERS of Plastic Auto Loader


Application Cases of Plastic Auto Loader

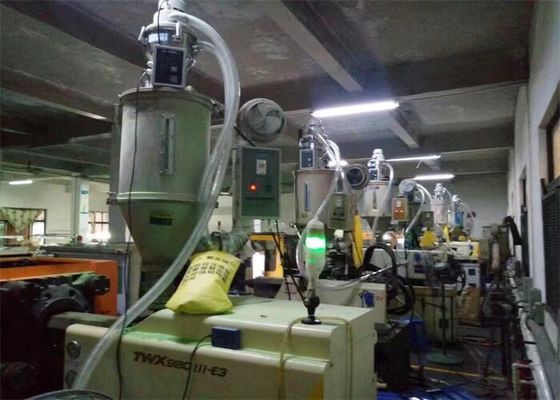

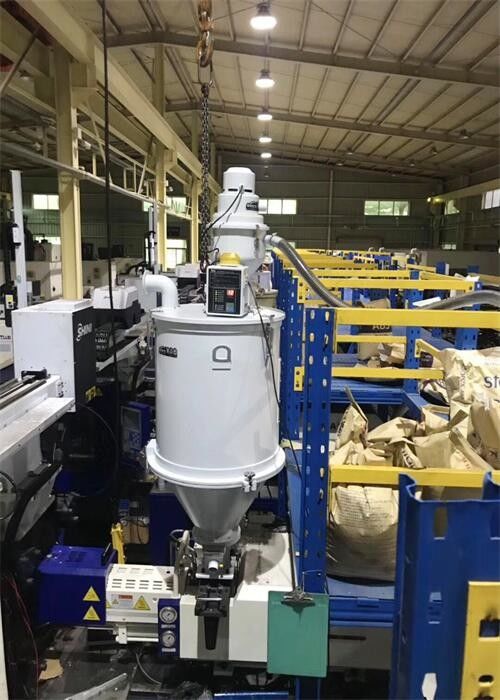

OAL self-contained auto loaded is directly mounted at the top of hopper dryer for feeding plastic resin to the dryer. The plastic resin fall to the feed port of the injection molding machine after drying for production of plastic products. The volume of an OAL is similar to that of an Hopper Receiver, so it saves a lot space for a normal separate-type auto loader which is always placed beside the molding machine.

A Dehumidifier provides dry air with low dew point for the 2 hopper dryers, the 2 sets of OAL auto loader feed plastic resins to the hopper dryer. Hopper dryers are equipped with a valve at the outlet for discharging the dried material.

Exemption Clause

The following statements clarify the responsibilities and regulations born by any buyer or user who purchases products and accessories from ORSTE (including employees and agents).

ORSTE is exempted from liability for any costs, fees, claims and losses caused by reasons below:

1. Any careless or man-made installations, operation and maintenances upon machines without referring to the Manual prior to machine using.

2. Any incidents beyond human reasonable controls, which include man-made vicious or deliberate damages or abnormal power, and machine faults caused by irresistible natural disasters including fire, flood, storm and earthquake.

3. Any operational actions that are not authorized by ORSTE upon machine, including adding or replacing accessories, dismantling, delivering or repairing.

4. Employing consumables or oil media that are not appointed by ORSTE.

Note of Maintenance

1) Turn off the main switch and control switch and unplug the cord from power supply before service and maintenance.

2) Be sure not to modify electrical wiring or reassemble the electrical components inside of the control box.

3) Always refer to the electrical diagram of this manual to check and maintain the electrical wiring problems.

4) Service and maintenance of the electrical parts should only be carried out by qualified electricians.
