Two In One Compact Plastic Drying Loader Dryers Drying Hopper Loading Dryers ODL-80

ODL Drying Loader Drying Hopper.pdf

Naming Principle of Plastic Pellet Hopper Dryer

ODL – xxx – xxx

① ② ③

① Orste Drying Loader

② Hopper Capacity (L)

③ Loader Model

Product Features of Plastic Pellet Hopper Dryer

• Material-contact surface made of stainless steel to eliminate material contamination.

• The closely casting aluminum shell ensures excellent insulation.

• Hot air inlet elbow design can effectively avoid burning caused by dust piling up at the bottom of the pipe heaters.

• The hopper design is convenient for cleaning and material change.

• Accurate temperature controller guarantees easy control of temperature.

• Overheat protection device makes machine run safely and reliably.

• Dust-proof mute blower prevents dust from polluting material.

• Material window in hopper and base makes it convenient to observe the material usage.

Working Principle of Plastic Pellet Hopper Dryer

The plastic resin is loaded by the vacuum loader to the drying hopper, after drying, the dried resin is loaded to the feeding port of the molding machine. It's suitable for normal plastic resin drying, not suitable for hygroscopic resin drying. For drying of hygroscopic plastic granules, low dew-point dehumidifying dryers are needed for drying.

Parameters / Specifications of Plastic Pellet Hopper Dryer

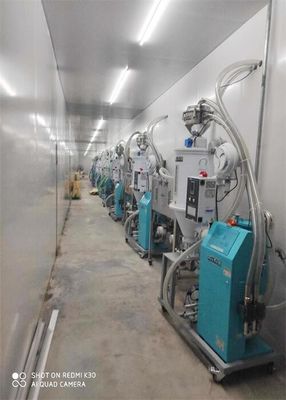

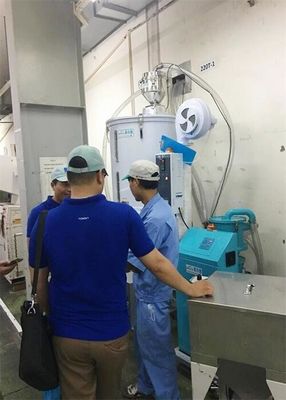

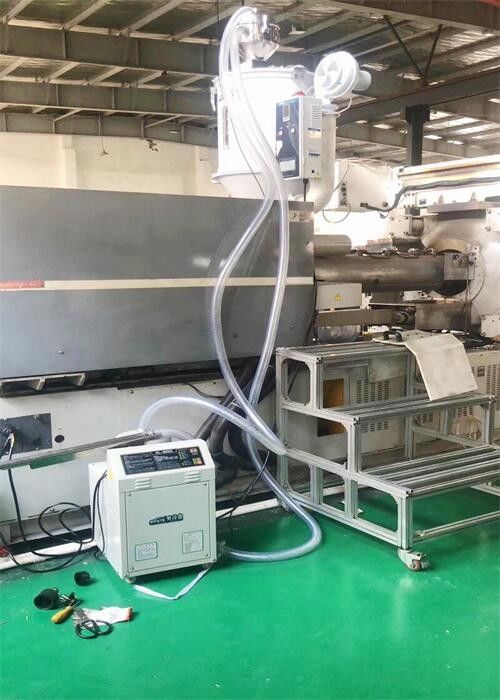

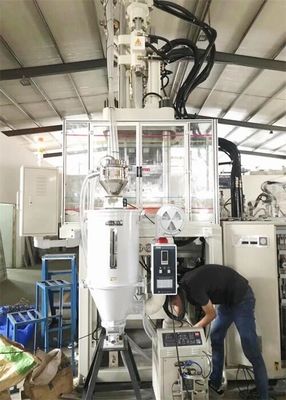

Application Case of Plastic Pellet Hopper Dryer

Simple Introduction of Plastic Pellet Hopper Dryer

ODL drying loader series is the combination of hopper dryer and vacuum auto loader, it has the function of drying and loading by itself. Usually, the auto loader is responsible for two directions loading, load the plastic materials to the hopper dryer and load the dried resin to the IMM or extruder or other place. Two piece of OMH micro-switch hopper receivers or one piece of OMH and one piece of OPH photo-sensor hopper is equipped for the machine.

It is suitable for drying of non-hygroscopic plastic pellets, like PVC, PP, PE and etc. A floor stand is always applied for both the hopper dryer and the auto loader, for models below ODL-240, castors are standard equipped for easy movement, for bigger models, castors are not equipped. The machine should be installed within 5 meter from the molding machine.

Matters Needing Attention

Electrical installation of the machine should be done by qualified electricians.

Connecting the cooling water (if needed) after the machine is installed in a appointing place, make sure the inlet and outlet water pipe is in good condition.

Before connecting to AC Power Source, turn power switch to OFF position. While AC power source is connected, make sure specifications and overload protection rating of the power switch are suitable and reliable. When the machine is under care or maintenance, turn off both power switch and automatic operation switch.
