Stainless Steel 6KW Plastic Hopper Dryer Machine OHD-160-O For PE PP PVC Drying

OHD-O Stainless Steel Hopper Dryer.pdf

Keywords: Plastic Drying Machine, Hopper Dryer, Stainless Steel Hopper Dryer, Plastic Machine, Plastic Dryer

Naming Principle of Hopper Dryer for Extrusion

OHD - xxx - O

① ② ③

① Orste Hopper Dryer

② Hopper Capacity (L)

③ Optical Grade

Product Features of Hopper Dryer for Extrusion

• The whole body of the hopper is made of stainless steel, and both inside and outside surface are specially polished.

• Unique design, no dust, easy cleaning, it is specially applicable to production of optical and food grade product.

• Unique filter screen at the air suction end in hopper can avoid blockage in air pipe caused by material.

• Air filter at the blower is optional, no dust in dry air, thus greatly reduce defects rates.

• Material window in hopper and base makes it convenient to observe the material usage.

• Hopper wall is specially embedded with thicken insulating layer, together with down-blow hot air pipe design, the hot dry air is evenly sprayed and little will be lost. Drying efficiency is greatly improved.

• Overheat protection device makes machine run safely and reliably.

• Low energy consumption, environmental friendly.

Options of Hopper Dryer for Extrusion

24-hour auto start/stop timer, hot air recycler, exhaust air filter,

magnetic base, floor stand, optical vacuum hopper, hopper magnet

Application of Hopper Dryer for Extrusion

OHD-O series hopper dryer can be used to dry mildly hygroscopic plastic materials singly, also can be applied with honeycomb rotor dehumidifier to achieve a better drying effect and shorten the time of drying. It can be directly mounted at the feed port of the molding machine, or placed at the floor or a platform with a floor stand, and equipped with a vacuum auto loader for feeding the dried material to the molding machine.

Parameters of Hopper Dryer for Extrusion

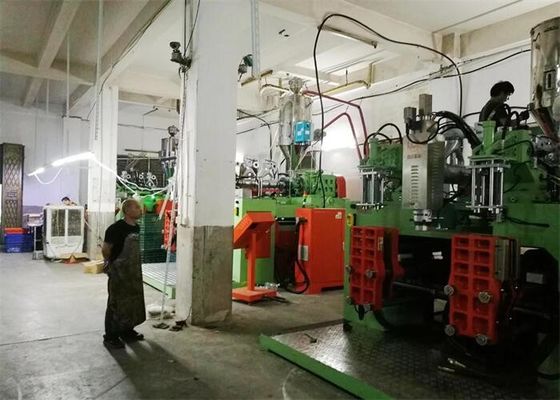

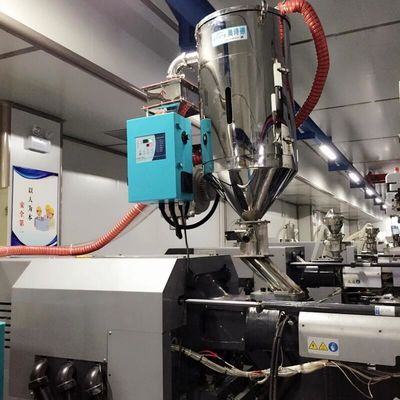

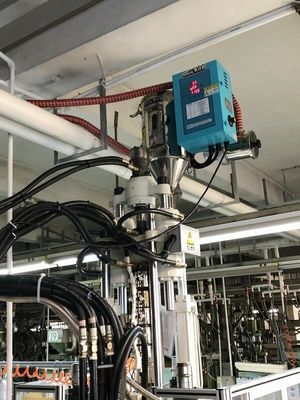

Application Cases of Hopper Dryer for Extrusion
