Product Details:
|
| Material: | Aluminum | Application: | Plastic Resin Drying |
|---|---|---|---|
| Color: | Gray | Origin: | China |
| Warranty: | 12 Months | Usage: | Plastic Industry,Plastic Injection Equipment,Plastic Injection Equipment/PE PP PET ABS PVC,Dry Plastic,New Design High Speed Plastic Film Dryer Machine |
| Blower Power: | 90~1100W | Name: | Industrial Plastic Pellet Hopper Dryer In China,Hopper Dryer,Hot-air Dryers,Plastic Hopper Dryer Machine / Hopper Dryer For Plastic |
| Highlight: | Granules Plastic Hopper Dryer,Resin Plastic Hopper Dryer |
||

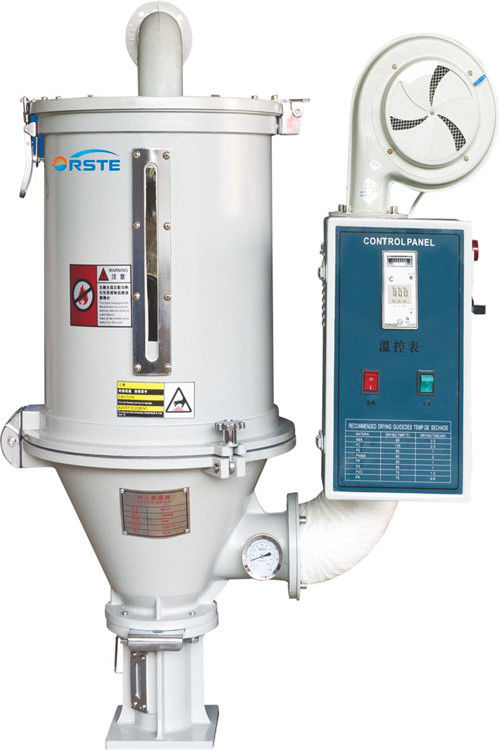

OHD Economic Hopper Dryer for Engineering Plastic ...
OHD series adopt hot air diffuser to gain an even hot air flow to improve drying efficiency.
Material-contact surface made of stainless steel to eliminate material contamination.
The closely casting aluminum shell ensures excellent insulation.
Hot air inlet elbow design can effectively avoid burning caused by dust piling up at the bottom of the pipe heaters.
The hopper design is convenient for cleaning and material change.
Accurate temperature controller guarantees easy control of temperature.
Overheat protection device makes machine run safely and reliably.
Dust-proof mute blower prevents dust from polluting material.
Material window in hopper and base makes it convenient to observe the material usage in the hopper.
ORSTE Hopper Dryer is widely applied in Plastic Resin Drying for Extruding and Injection Molding service. It's ideal choice for normal plastic resin drying. For hygroscopic resin like PET, PETG,. PA and others, low dew point dehumidifying dryers is needed for drying.
|
Model |
Capacity |
Heating (kw) |
Blower (w) |
Measurement (mm) |
Installation (mm) |
Power |
Weight (kg) |
|
|
L |
kg |
|||||||
|
OHD-20 |
20 |
12 |
2.0 |
90 |
630*400*825 |
110*110 |
1ф, 230VAC, 50/60Hz |
35 |
|
OHD-40 |
40 |
25 |
3.5 |
135 |
750*420*1030 |
160*160 |
40 |
|
|
OHD-80 |
80 |
50 |
4.5 |
155 |
850*500*1200 |
160*160 |
3ф, 400VAC, 50/60Hz |
45 |
|
OHD-120 |
120 |
75 |
6.5 |
155 |
950*580*1300 |
160*160 |
55 |
|
|
OHD-160 |
160 |
100 |
6.5 |
215 |
1050*640*1360 |
180*180 |
70 |
|
|
OHD-240 |
240 |
150 |
15 |
215 |
1060*720*1560 |
180*180 |
85 |
|
|
OHD-300 |
300 |
200 |
15 |
320 |
1180*838*2020 |
230*230 |
100 |
|
|
OHD-480 |
480 |
300 |
18 |
320 |
1280*850*1750 |
230*230 |
130 |
|
|
OHD-600 |
600 |
400 |
18 |
0.75 |
1480*1050*2020 |
275*275 |
165 |
|
|
OHD-800 |
800 |
500 |
20 |
550 |
1480*1050*2350 |
275*275 |
200 |
|
|
OHD-900 |
900 |
600 |
20 |
1.1 |
1580*1158*2400 |
280*280 |
240 |
|
Machine Details of Plastic Resin Hopper Dryer
