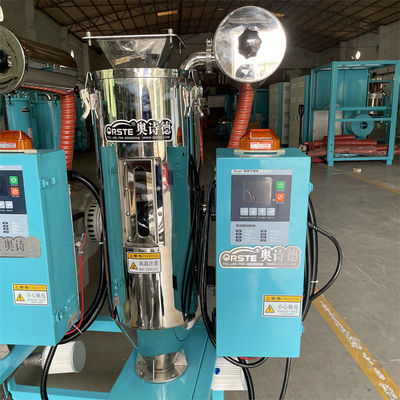

4KW Mildly Hygroscopic Plastic Hopper Dryer Blank SUS OHD-80-O​

OHD-O Stainless Steel Hopper Dryer.pdf

Keywords: Plastic Drying Machine, Hopper Dryer, Stainless Steel Hopper Dryer, Plastic Machine, Plastic Dryer

Naming Principle of Plastic Material Hopper Dryer

OHD - xxx - O

① ② ③

① Orste Hopper Dryer

② Hopper Capacity (L)

③ Optical Grade

Product Features of Plastic Material Hopper Dryer

• The whole body of the hopper is made of stainless steel, and both inside and outside surface are specially polished.

• Unique design, no dust, easy cleaning, it is specially applicable to production of optical and food grade product.

• Unique filter screen at the air suction end in hopper can avoid blockage in air pipe caused by material.

• Air filter at the blower is optional, no dust in dry air, thus greatly reduce defects rates.

• Material window in hopper and base makes it convenient to observe the material usage.

• Hopper wall is specially embedded with thicken insulating layer, together with down-blow hot air pipe design, the hot dry air is evenly sprayed and little will be lost. Drying efficiency is greatly improved.

• Overheat protection device makes machine run safely and reliably.

• Low energy consumption, environmental friendly.

Options of Plastic Material Hopper Dryer

24-hour auto start/stop timer, hot air recycler, exhaust air filter,

magnetic base, floor stand, optical vacuum hopper, hopper magnet

Application of Plastic Material Hopper Dryer

OHD-O series hopper dryer can be used to dry mildly hygroscopic plastic materials singly, also can be applied with honeycomb rotor dehumidifier to achieve a better drying effect and shorten the time of drying. It can be directly mounted at the feed port of the molding machine, or placed at the floor or a platform with a floor stand, and equipped with a vacuum auto loader for feeding the dried material to the molding machine.

Parameters of Plastic Material Hopper Dryer

Machine Details of Plastic Material Hopper Dryer

The heater of the Stainless steel hopper dryer is located at the rear of the electrical cabinet, and there is a space between the heater shell and the electrical cabinet. In this way, the heat from the heater won't affect the performance of the electric parts in the cabinet. The electrical cabinet and the heater is connected to the hopper body by fast-assembling clamp for easy repairing or maintenance.

For small capacity OHD-O hopper dryers with strict standard for dust removing, unique filter is equipped for the machine, the dust in the ambient air can be eliminated by 99% from entering into the hopper to pollute the plastic material.

Audible alarm is standard part of the machine, it will sound alarm to remind the operator once there is any error occur. Multiple safetyp measures ensures good and stable performance of the machine
