Product Details:
|
Material: | Stainless Steel & Aluminum | Application: | Plastic Drying & Loading |
---|---|---|---|
Color: | Gray & Green | Origin: | China |
Certification: | CE,ISO9001,SGS | Warranty: | 12 Months |
After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Overseas Third-party Support Available,Overseas Service Center Available | Name: | Industrial Plastic Pellet Hopper Dryer In China,Hopper Dryer,Hot-air Dryers,Plastic Hopper Dryer Machine / Hopper Dryer For Plastic |
Highlight: | Plastic Hopper Loader Dryer,Compact Hopper Loader Dryer,ISO Plastic Drying Machine |
ODL Drying Loader Drying Hopper.pdf
ODL – xxx – xxx
① ② ③

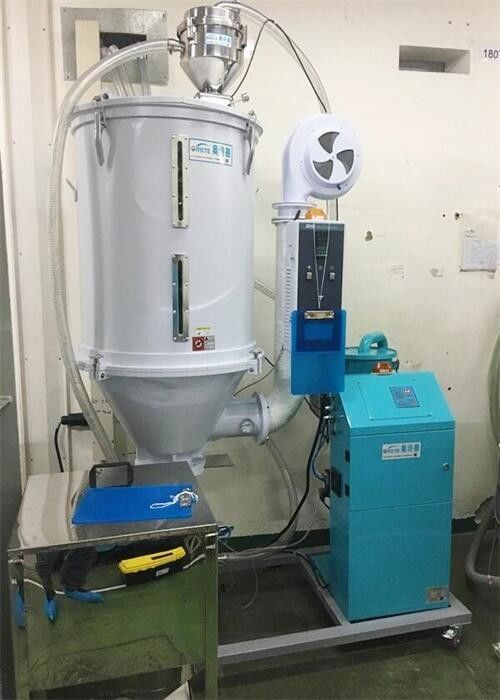

① Orste Drying Loader
② Hopper Capacity (L)
③ Loader Model
Material-contact surface made of stainless steel to eliminate material contamination.
The closely casting aluminum shell ensures excellent insulation.
Hot air inlet elbow design can effectively avoid burning caused by dust piling up at the bottom of the pipe heaters.
The hopper design is convenient for cleaning and material change.
Accurate temperature controller guarantees easy control of temperature.
Overheat protection device makes machine run safely and reliably.
Dust-proof mute blower prevents dust from polluting material.
Material window in hopper and base makes it convenient to observe the material usage.

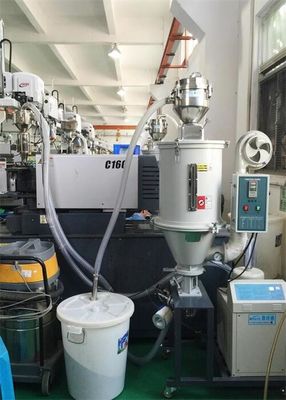

The plastic resin is loaded by the vacuum loader to the drying hopper, after drying, the dried resin is loaded to the feeding port of the molding machine. It's suitable for normal plastic resin drying, not suitable for hygroscopic resin drying. For drying of hygroscopic plastic granules, low dew-point dehumidifying dryers are needed for drying.
Model |
Applicable Dryer |
Applicable Loader |
Vacuum Hopper Receiver |
Conveying Capacity (kg/hr) |
Hopper Capacity (L) |
Measurement (mm) |
Weight (kg) |
|
ODL-40 |
OHD-40 |
OAL-1.5S |
OAL-1S |
1 x OMH-7.5L |
300 |
1*7.5 |
620*1000*640 |
95 |
OAL-2S |
1 x OPH-7.5L 1 x OMH-7.5L |
450 |
2*7.5 |
|||||
ODL-80 |
OHD-80 |
OAL-1.5S |
OAL-1S |
1 x OMH-7.5L |
300 |
1*7.5 |
750*1000*640 |
110 |
OAL-2S |
1 x OPH-7.5L 1 x OMH-7.5L |
450 |
2*7.5 |
|||||
ODL-120 |
OHD-120 |
OAL-1.5S |
OAL-1S |
1 x OMH-7.5L |
300 |
1*7.5 |
850*1000*640 |
115 |
OAL-2S |
1 x OPH-7.5L 1 x OMH-7.5L |
450 |
2*7.5 |
|||||
ODL-160 |
OHD-160 |
OAL-1.5S |
OAL-1S |
1 x OMH-7.5L |
300 |
1*7.5 |
950*1080*710 |
155 |
OAL-2S |
1 x OPH-7.5L 1 x OMH-7.5L |
450 |
2*7.5 |
|||||
ODL-300 |
OHD-300 |
OAL-1S |
1 x OMH-7.5L |
300 |
1*7.5 |
2000*1080*710 |
160 |
|
OAL-2S |
1 x OPH-7.5L 1 x OMH-7.5L |
450 |
2*7.5 |
|||||
ODL-600 |
OHD-600 |
OAL-2S |
1 x OMH-7.5L |
400 |
12 |
3850*1140*840 |
210 |
|
OAL-3S |
1 x OPH-7.5L 1 x OMH-7.5L |
700 |
2*12 |
The following statements clarify the responsibilities and regulations born by any buyer or user who purchases products and accessories from ORSTE (including employees and agents).
ORSTE is exempted from liability for any costs, fees, claims and losses caused by reasons below:
1. Any careless or man-made installations, operation and maintenances upon machines without referring to the Manual prior to machine using.
2. Any incidents beyond human reasonable controls, which include man-made vicious or deliberate damages or abnormal power, and machine faults caused by irresistible natural disasters including fire, flood, storm and earthquake.
3. Any operational actions that are not authorized by ORSTE upon machine, including adding or replacing accessories, dismantling, delivering or repairing.
4. Employing consumables or oil media that are not appointed by ORSTE.
Note of Maintenance
1) Turn off the main switch and control switch and unplug the cord from power supply before service and maintenance.
2) Be sure not to modify electrical wiring or reassemble the electrical components inside of the control box.
3) Always refer to the electrical diagram of this manual to check and maintain the electrical wiring problems.
4) Service and maintenance of the electrical parts should only be carried out by qualified electricians.
