Product Details:
|
| Application: | Plastic Drying | Material: | Aluminum & Stainless Steel |
|---|---|---|---|
| Color: | Gray & Green | Origin: | China |
| Warranty: | 12 Months | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Overseas Third-party Support Available,Overseas Service Center Available |
| Capacity: | 12kg~1000kg | Usage: | Plastic Industry,Plastic Injection Equipment,Plastic Injection Equipment/PE PP PET ABS PVC,Dry Plastic,New Design High Speed Plastic Film Dryer Machine |
| Highlight: | Injection Molding Plastic Hopper Dryer,ISO Plastic Hopper Dryer,Economic Plastic Granules Dryer |
||

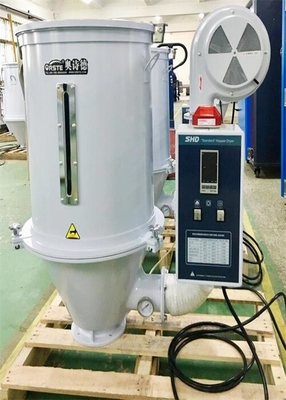

OHD Economic Hopper Dryer for Engineering Plastic ...
Keywords: Economic Dryer, Hopper Dryer, Drying Hopper, Plastic Machine, Plastic Drying Machine, Plastic Auxilliary Equipment
OHD - xxx
① ②
① Orste Hopper Dryer
② Hopper Capacity (L)
OHD series adopt hot air diffuser to gain an even hot air flow to improve drying efficiency.
Material-contact surface made of stainless steel to eliminate material contamination.
The closely casting aluminum shell ensures excellent insulation.
Hot air inlet elbow design can effectively avoid burning caused by dust piling up at the bottom of the pipe heaters.
The hopper design is convenient for cleaning and material change.
Accurate temperature controller guarantees easy control of temperature.
Overheat protection device makes machine run safely and reliably.
Dust-proof mute blower prevents dust from polluting material.
Material window in hopper and base makes it convenient to observe the material usage.
|
Model |
Capacity |
Heating (kw) |
Blower (kw) |
Measurement (mm) |
Installation (mm) |
Weight (kg) |
|
|
L |
kg |
||||||
|
OHD-20 |
20 |
12 |
1.8 |
0.05 |
610*320*925 |
110*110 |
35 |
|
OHD-40 |
40 |
25 |
3.5 |
0.09 |
760*486*1035 |
150*150 |
40 |
|
OHD-80 |
80 |
50 |
4.5 |
0.1 |
865*542*1210 |
160*160 |
45 |
|
OHD-120 |
120 |
75 |
6.5 |
0.25 |
940*605*1310 |
160*160 |
55 |
|
OHD-160 |
160 |
100 |
6.5 |
0.25 |
1012*695*1406 |
200*200 |
70 |
|
OHD-300 |
300 |
200 |
12 |
0.3 |
1180*838*2020 |
230*230 |
100 |
|
OHD-600 |
600 |
400 |
15 |
0.75 |
1475*1058*2020 |
275*275 |
165 |
|
OHD-900 |
900 |
600 |
20 |
1.1 |
1580*1158*2400 |
280*280 |
240 |
OHD series economic type hopper dryer is normally applied for drying engineering plastic with non-hygroscopic or mildly hygroscopic features. The drying effect is affected by the ambient air moisture, drying temperature, drying time and etc. For hygroscopic plastic, like PA, PET, PEEK, PLA, TPU and etc., dehumdifying dryers are strongly suggested.
24-hour auto start/stop timer, hot air recycler, magnetic base,
micro-switch hopper, hopper magnet, air filter, blower inlet filter, cyclone dust collector
