Large Blower Vacuum Auto Loader Gray Color Separate Type OAL-1S​

OAL-S Seperate type Loader Auto Loading Machine.pd...

Autoloader, Material Loader, Material Loading Machine, Plastic Loader, Plastic Loading Machine, Plastic Loading Equipment, Vacuum Loader, Automatic Loader, Detachable Loader, Detachable Vacuum Loader, Auto Loader

NAMING PRINCIPLE of Plastic Material Loading Machine

OAL- xxS

①      ②

① Orste Auto-Loader

② Motor Power (HP)

S: Separate Type

FEATURES of Plastic Material Loading Machine

• Microprocessor for ease of use and accurate control.
• Stainless hopper receiver ensures no material contamination.
•  Motor overload protector ensures long service life of motor.
• OAL-S loaders adopts stainless steel mesh thus avoids damage to the motor.
• Complete safety protection function device, like electricity indicator, phase-reversing alarm, material shortage and motor overloading alarm.
• Auto De-dusting function is standard equipped for OAL-S series.
• Both micro-switch hopper (OVH) and photo-sensor hopper (OPH) can be directly mounted on the feed port of molding machine.

FUNCTIONAL SCHEME of Plastic Material Loading Machine

The control device starts the vacuum motor to take out the air in the hopper, the material valve is closed meanwhile, thus negative pressure is created. With the function of negative pressure, material in the storage tank is delivered to the hopper through material pipe. The vacuum motor stops working when the suction time comes out, the material valve is opened by material, then material falls into injection machine or other equipment.

PARAMETERS of Plastic Material Loading Machine

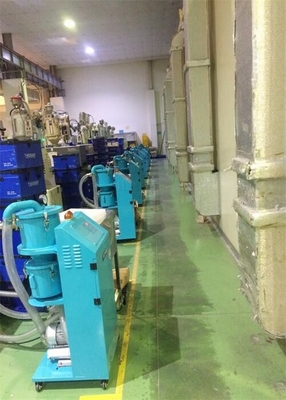

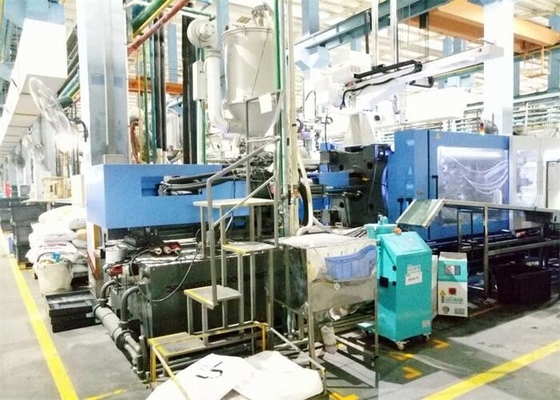

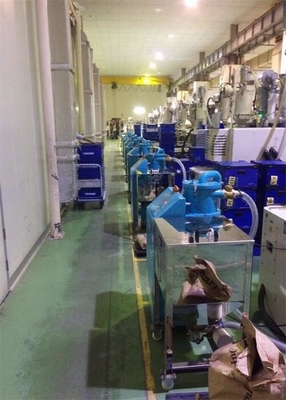

APPLICATION CASES of Plastic Material Loading Machine

OAL-S series vacuum auto loader is usually work with micro-switch hopper receiver or photo-sensor hopper receiver to load the plastic materials to a specific location through the negative air pressure. Our latest OAL-S vacuum loader is standard equipped with auto dust collector function, significantly lower the frequency of filter cleaning and improve the lifespan of the machine.

Matters Needing Attention

Electrical installation of the machine should be done by qualified electricians.

Connecting the cooling water (if needed) after the machine is installed in a appointing place, make sure the inlet and outlet water pipe is in good condition.

Before connecting to AC Power Source, turn power switch to OFF position. While AC power source is connected, make sure specifications and overload protection rating of the power switch are suitable and reliable. When the machine is under care or maintenance, turn off both power switch and automatic operation switch.

Exemption Clause

The following statements clarify the responsibilities and regulations born by any buyer or user who purchases products and accessories from ORSTE (including employees and agents).

ORSTE is exempted from liability for any costs, fees, claims and losses caused by reasons below:

1. Any careless or man-made installations, operation and maintenances upon machines without referring to the Manual prior to machine using.

2. Any incidents beyond human reasonable controls, which include man-made vicious or deliberate damages or abnormal power, and machine faults caused by irresistible natural disasters including fire, flood, storm and earthquake.

3. Any operational actions that are not authorized by ORSTE upon machine, including adding or replacing accessories, dismantling, delivering or repairing.

4. Employing consumables or oil media that are not appointed by ORSTE.
