Plastic Vacuum Automatic Loading Machine Hopper Loader with Green Color OAL-3S

OAL-S Seperate type Loader Auto Loading Machine.pd...

NAMING PRINCIPLE of Plastic Auto Loader

OAL- xxS

① ②

① Orste Auto-Loader

② Motor Power (HP)

S: Separate Type

FEATURES of Plastic Auto Loader

• Microprocessor for ease of use and accurate control.
• Stainless hopper receiver ensures no material contamination.
• Motor overload protector ensures long service life of motor.
• OAL-S loaders adopts stainless steel mesh thus avoids damage to the motor.
• For OAL-S series, auto dust-removing device is standardly equipped which saves labor cost for cleaning of filters and expand the lifespan of the machine.
• Complete safety protection function device, like electricity indicator, phase-reversing alarm, material shortage and motor overloading alarm.
• Both micro-switch hopper (OVH) and photo-sensor hopper (OPH) can be directly mounted on the feed port of molding machine.

FUNCTIONAL SCHEME of Plastic Auto Loader

The control device starts the vacuum motor to take out the air in the hopper, the material valve is closed meanwhile, thus negative pressure is created. With the function of negative pressure, material in the storage tank is delivered to the hopper through material pipe. The vacuum motor stops working when the suction time comes out, the material valve is opened by material, then material falls into injection machine or other equipment.

PARAMETERS of Plastic Auto Loader

Machine Details of Plastic Auto Loader

Simple and good-looking control pannel with both Chinese and English language on it, user-friendly desigh and easy to operate. ORSTE's vacuum auto loader is suitable for loading plastic granules for many circumstances. All electric terminals are of CE standard, all electric parts are of famous brand with good quality. Auto filter cleaning device is standardly equipped for all models.

OAL-S series are specially suitable for plastic resins with dust, the loading capacity varies from 200 kg/h to 1000 kg/h, depends on the horizontal and vertical distance, also the bulk density of the plastic resins.

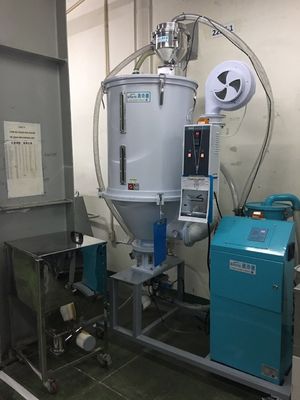

OAL-S is always applied with OHD or OHD-O hoppper dryers for loading materials to them and eliminates the hard labor work by manually loading. It is warmly welcomed by many customers in China and abroad countries.
