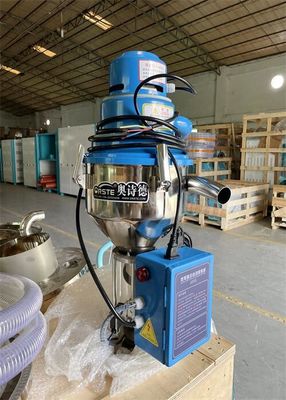

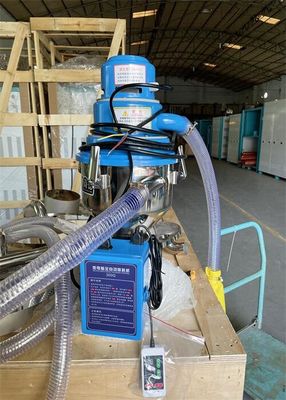

Aluminum Automatic 220V Vacuum Auto Loader Self Contained For Plastic Resin

OAL Self-contained Auto Loader.pdf

Autoloader, Plastic Loader, Plastic Autoloader, Vacuum Loader, Automatic Loader, Loading Machine, Material Autoloader


NAMING PRINCIPLE of Hopper Loader for Plastic

OAL- xxx - xx
①   ②   ③
① Orste Auto-Loader
② Motor Power (HP)
③ Notes
P: Equipped with Photo-sensor hopper receiver

FEATURES of Hopper Loader for Plastic

• OAL adopts carbon brush motor with fast rotating speed and large air quantity.
• Small space occupation and easy movement and installation.
• Wire-control controller is user-friendly,automatic cleaning function is optional.
• Hopper and base mount positions are adjustable.
• Equipped with micro-switch with high sensitivity and stable quality
• Equipped with hinged handle hopper lid that connected by hinges for easy mesh cleaning.
• Complete safety protection function device, like material shortage alarm.
• Completely avoid the danger of manually loading material, thus save manpower cost and improve work efficiency.

FUNCTIONAL SCHEME of Hopper Loader for Plastic

The control device starts the vacuum motor to take out the air in the hopper, the material valve is closed meanwhile, thus negative pressure is created. With the function of negative pressure, material in the storage tank is delivered to the hopper through material pipe. The vacuum motor stops working when the suction time comes out, the material valve is opened by material, then material falls into injection machine or other equipment.

PARAMETERS of Hopper Loader for Plastic

Two Applications of OAL in plastic injection molding process. The left is widely applied in actual situation.


OAL self-contained auto loaded is directly mounted at the top of hopper dryer for feeding plastic resin to the dryer. The plastic resin fall to the feed port of the injection molding machine after drying for production of plastic products. The volume of an OAL is similar to that of an Hopper Receiver, so it saves a lot space for a normal separate-type auto loader which is always placed beside the molding machine.

A Dehumidifier provides dry air with low dew point for the 2 hopper dryers, the 2 sets of OAL auto loader feed plastic resins to the hopper dryer. Hopper dryers are equipped with a valve at the outlet for discharging the dried material.
