Product Details:
|
| Material: | Stainless Steel | Drying Material: | Hygroscopic Plastic |
|---|---|---|---|
| Application: | PA, PET, TPU, PLA, PEEK | Drying Method: | Dry Hot Air |
| Condition: | New | Warranty: | 12 Months |
| After-sales Service Provided: | Overseas Third-party Support Available | Dimension: | Different As Different Specifications |
| High Light: | Rotary Wheel Dehumidifying Hopper Dryer,PLA Dehumidifying Hopper Dryer |
||

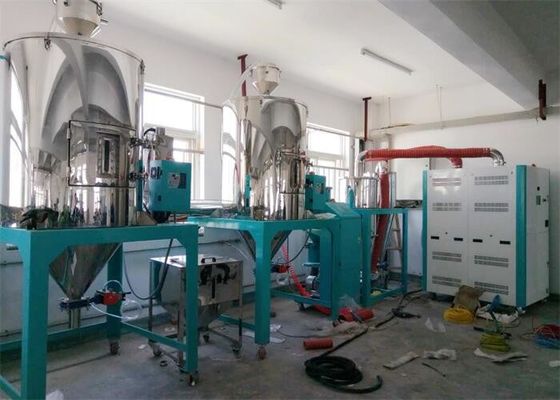

Rotary Wheel Desiccant Dehumidifying Hopper Dryer For PA PET TPU PLA PEEK PC
Dehumidifier, PET Crystalizing Dryer Machine, Plastic Dryer, Honeycomb Plastic Dehumidifier, Industrial Dehumidifier, Dehumidifying Dryer, Dry Air Dryer
ORD – xxxH
① ②
① Orste Rotary Honeycomb Dehumidifier
② Drying Air Flow (m3/hr), H: Honeycomb Rotor
1. P.I.D temperature controller to accurately control regenerative temperature.
2. Adopt Japan Nichias molecular sieve honeycomb rotor which ensures good stable dehumidifying effect.
3. Detachable cooler is equipped for over-sized model, easy for maintenance and keeps a low return air temperature.
4. High density return air filter ensures no contamination to the honeycomb.
5. Temperature indication function for dehumidified outlet air temperature.
6. Efficient oil filter is optional, 99% of oil can be removed, thus product quality can be greatly improved.
7. Dew point of air after dehumidified can be lower than -40oC.
8. For Models below ORD-400H, air-cooling is optional ensures low energy consumption and high efficiency.
ORD-H series rotary honeycomb dehumidifiers are mainly used to dry hygroscopic engineering plastics or regrind materials. Under ideal conditions, the dew-point of dehumidified dry air can be lower than -40oC, the largest of which can provide dry air up to a quantity of 4,000 m3/hr.
The main part of honeycomb rotor is made by ceramic fiber and organic additives, sintered under high temperature with molecular sieve or silica gel as basic material to bond together with inside of honeycomb to form the honeycomb-like structure. Unlike common desiccant or rotary molecular sieve, then, when aging, will produce dust, followed by process air to drying hopper, to pollute plastic material. Honeycomb rotor offers unlimited long service life and can be cleaned and not like usual molecular sieve which is easy to get saturated or requiring regular replacement. The moisture of return air is quickly absorbed by molecular sieves when passing through numerous holes within honeycomb rotor. So when coming out of rotor, can form low dew-point air. Regenerating and dehumidifying have similar principle and run simultaneously. The only difference is that the two process winds are in opposite direction.
|
Model ORD- |
60H |
80H |
120H |
150H |
200H |
300H |
400H |
500H |
700H |
1000H |
1500H |
2000H |
3000H |
4000H |
|
|
Rege. Heater (kw) |
2.5 |
2.5 |
2.5 |
2.5 |
2.5 |
8 |
8 |
12 |
12 |
15 |
20 |
20 |
32 |
40 |
|
|
Rege. Blower (kw) |
0.2 |
0.2 |
0.2 |
0.2 |
0.4 |
0.7 |
0.7 |
1.3 |
1.6 |
1.6 |
2.2 |
3 |
2.2*2 |
3×2 |
|
|
Process Heater (kw) * |
2.5 |
4 |
6 |
8 |
12 |
15 |
18 |
21 |
24 |
32 |
58 |
80 |
96 |
128 |
|
|
Process Blower (kw) |
0.4 |
0.7 |
0.7 |
1.3 |
1.1 |
3 |
4 |
5.5 |
5.5 |
8.5 |
12.5 |
18.5 |
12.5×2 |
15×2 |
|
|
Drying Air Quantity (m3/hr) |
60 |
80 |
120 |
150 |
200 |
300 |
400 |
500 |
700 |
1000 |
1500 |
2000 |
3000 |
4000 |
|
|
Pipe Dia. (inch) |
2〞 |
2〞 |
2〞 |
2〞 |
2〞 |
3〞 |
3〞 |
4〞 |
5〞 |
5〞 |
6〞 |
8〞 |
8〞 |
12〞 |
|
|
Dimension |
H (mm) |
1260 |
1510 |
1360 |
1560 |
1560 |
1745 |
1745 |
1935 |
1935 |
2145 |
2060 |
2060 |
2240 |
2060 |
|
W (mm) |
480 |
600 |
600 |
660 |
660 |
900 |
700 |
900 |
900 |
1300 |
1410 |
1410 |
2035 |
2750 |
|
|
D (mm) |
755 |
761 |
761 |
1050 |
1050 |
1100 |
1255 |
1380 |
1380 |
1550 |
2150 |
2150 |
2160 |
2250 |
|
|
Weight (kg) |
145 |
170 |
220 |
260 |
285 |
320 |
330 |
470 |
480 |
700 |
1010 |
1300 |
1600 |
2200 |
|
Notes:
“*” stands for drying heater is optional for working with “optical” hoppers.
