Product Details:
|
| Material: | Stainless Steel | Function: | Drying Of Hygroscopic Plastic |
|---|---|---|---|
| Color: | Green And White | Application: | Hygroscopic Plastic Material Drying |
| Usage: | Plastic Industry(dehumidifying Dryer) | Name: | Drying Machine |
| Suitable For: | Drying All Kinds Of Plastic Material | Dehumidifier Dew Point: | - 45 ℃ |
| High Light: | Industrial Honeycomb Dehumidifying Dryer,Plastic Honeycomb Dehumidifying Dryer |
||
Plastic Dryer, Dehumidifier, Dehumidifying Dryer, Industrial Dehumidifier, Industrial Dryer, Dry Air Dryer, Hot Air Dryer, Drying Machine
ODD-xxx/xxxH
① ② ③
① Orste Dehumidifying Dryer
② Hopper Capacity (L)
③ Dehumidifying Air Quantity (m3/hr), H: Honeycomb
1. The ODD dehumidifying dryers use honeycomb dehumidifiers with an elegant semi-integral appearance.
2. Combines the two functions of dehumidifying and drying into one machine, occupy little space which ensures the whole arrange of the workshop.
3. Insulated drying hopper features dry air down-blowing and cyclone exhaust design. This improves drying efficiency and reduces energy consumption while maintaining a steady drying effect.
4. Compact in size for ease of movement.
5. Microprocessor is standard equipment, ensures convenient operation.
The sealed honeycomb rotor is divided into dehumidifying, regenerative and cooling zones in the rotary dehumidifier. Damp and hot air from dry material hopper is blown into rotor after cooled. Moisture from the air is absorbed by rotor and is then absorbed by regeneration heating air. Two strands of airflow function on the rotor. And with the rotation of the rotor, moisture from the air is absorbed and expelled after absorbed regeneration air to form stable low dew-point air, which is dries to the drying temperature and then is blown into drying hopper to closed circle to dry material.
|
Model ODD- |
Regen. Heater (kw) |
Regen. Blower (kw) |
Drying Heater (kw) |
Drying Blower (kw) |
Dry Air Volume (m3/hr) |
Insulated Hopper (L) |
Dimension H*W*D (mm) |
Weight (kg) |
|
20/40H |
4 |
0.2 |
4 |
0.12 |
40 |
20 |
1260*960*860 |
150 |
|
40/40H |
4 |
0.2 |
4 |
0.12 |
40 |
40 |
1260*960*860 |
165 |
|
80/40H |
4 |
0.2 |
4 |
0.12 |
40 |
80 |
1650*1060*860 |
190 |
|
120/80H |
3 |
0.2 |
6 |
0.75 |
80 |
120 |
1780*1220*855 |
250 |
|
160/80H |
3 |
0.2 |
6 |
0.75 |
80 |
160 |
1740*1220*855 |
255 |
|
160/120H |
3 |
0.2 |
6 |
0.75 |
120 |
160 |
1740*1220*855 |
265 |
|
230/120H |
3 |
0.2 |
6 |
0.75 |
120 |
230 |
2010*1220*855 |
295 |
|
300/200H |
4 |
0.4 |
12 |
1.5 |
200 |
300 |
2040*1450*1050 |
420 |
|
450/200H |
4 |
0.4 |
12 |
1.5 |
200 |
450 |
2040*1450*1050 |
550 |
|
600/400H |
7.2 |
0.75 |
18 |
3.75 |
400 |
600 |
2380*1745*1255 |
620 |
|
750/400H |
7.2 |
0.75 |
18 |
3.75 |
400 |
750 |
2610*1745*1255 |
650 |
|
900/700H |
10 |
1.5 |
24 |
5.5 |
700 |
900 |
2640*2140*1380 |
830 |
|
1200/700H |
10 |
1.5 |
24 |
5.5 |
700 |
1200 |
3070*2140*1380 |
870 |

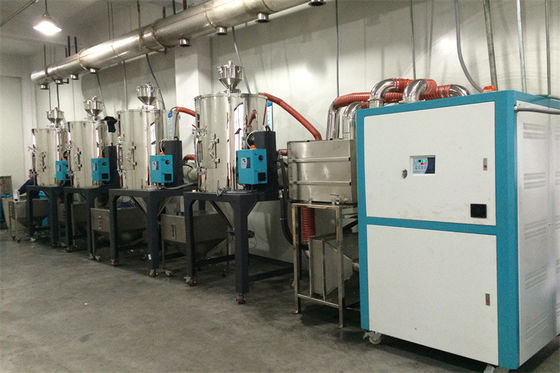

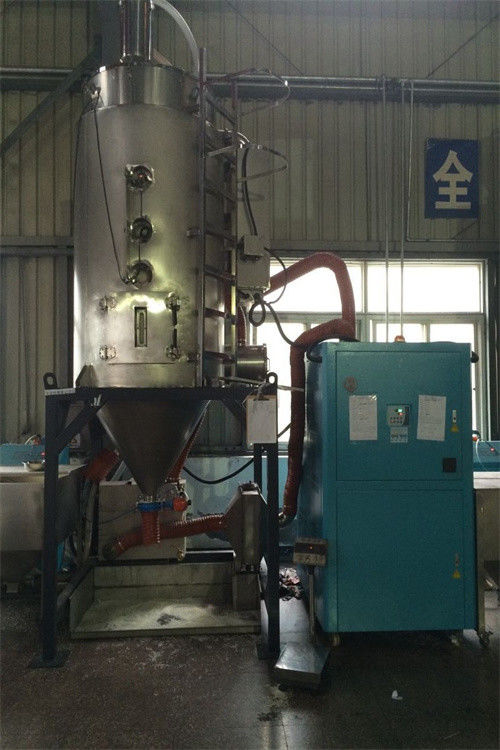

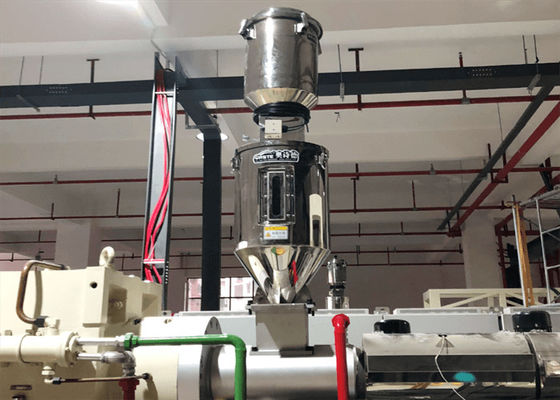

Inner structure of ORD-H dehumidifier, in which honeycomb rotor which is the key part of the machine, provides the dry air for the hopper dryer, the plastic materials in the hopper dryer is dried continuously for some time, and then be loaded to the other container or to the Injection machine for products production by the vacuum auto loader. ODD-H dehumidifying dryers are always applied with auto loader to form a whole drying & feeding system for plastic processing.
