Product Details:
|
| Material: | Stainless Steel | Color: | Can Be Customized |
|---|---|---|---|
| Application: | Plastic Material Feeding | Options: | Drying, Mixing |
| Function: | Drying Mixing Feeding Of Plastic | Mainly Applied: | In Plastic Injection Factories |
| Voltage: | 3 Phase / 380 V / 50 Hz | Warranty: | 12 Months As Usual |
| Highlight: | Drying Centralized Feeding System,Mixing Centralized Feeding System |
||
OMCS Central Feeding System.pdf
Central Drying & Feeding System
Utilizing the method of vacuum conveying, Orste Central Material Feeding/Conveying System (OMCS) transports plastic materials from storage silos to the central dehumidifying & drying system through centralized piping, and then convey the dried material to each molding machine. OMCS is suitable for the integrity of the material of huge capacity, eliminates waste and improves the cost effectiveness of the factory.
Utilizing the method of vacuum conveying, Orste Central Material Feeding/Conveying System (OMCS) transports plastic materials from storage silos to the central dehumidifying & drying system through centralized piping, and then convey the dried material to each molding machine. OMCS is suitable for the integrity of the material of huge capacity, eliminates waste and improves the cost effectiveness of the factory.
Continuous auto-operation.
Various dosing & mixing for different colors and materials.
Effective instant recycling which can mix regrind and new material flexibly.
Offer you the most flexibility to easily be expanded or modified equipment, make sure your production safer and more reliable and keep the best working environment.
OMCS Control Station
Ideal design of integrating the monitoring panel and the control panel.
Friendly interface and accurate control.
Operating and monitoring by a single personnel and can be linked with a PC.
Conveying time, material types, and pipe cleaning time of each station are adjusted by the control station.
Displaying panel shows you how stations, dryers and storage silos work, such as on/off, full or lack of material, and material types of each station.
Extensive interface allows easy expansions up to 40 stations for future demands.
Compact and durable.
Microprocessor touch-style control panel
Operating status:
Display the operating status of machines.
Set-up status:
Display the set up status, such as working stations, material types, material conveying time, and pipe cleaning time.
Abnormal:
Display abnormal machines and material type.
Ideal design of integrating the monitoring panel and control panel, User-friendly interface, Compact & Durable, Small space to make more productive use of factory floor space.
High-pressure Blower
Pressure air adjustable.
Maximum conveying distance can be 150 meters.
Suitable for conveying the material of large capacity.
Material Selector
Stainless steel made to avoid pollution of materials. Quick coupling devices for quick set-up or easy disconnected with pipes.
Dust-removing Combination: Vortex Cylone & Pulse Dust Collector
Collect dust from the conveying system efficiently.
Double protections for high-pressure blower in operation. Easy to maintain: only to change the filter on time and clean conveniently.
Dedicated and compact design.
Material Cut-off Valve: Stainless steel made, durable device design.
Air Cut-off Valve: Stainless steel made, reliable device design.
Compression Couples: Stainless steel made, connect pipes to construct the completely-closed central vacuum conveying system.
| Model | Blower (Hp) | IMMs (set) | Material | Throughput (Kg/H) | Feeding Point (pcs) | Max. Feeding Distance (m) | Max. Feeding Height (m) | Remarks |
| OMCS-5 | 5 | 5 | 1 | 500 | 5 | 20 | 5 | To be Customized |
| OMCS-10 | 7.5 | 7 | 4 | 800 | 10 | 50 | 8 | To be Customized |
| OMCS-20 | 10 | 14 | 6 | 800 | 20 | 80 | 10 | To be Customized |
| OMCS-30 | 10 | 22 | 8 | 800 | 30 | 80 | 10 | To be Customized |
| OMCS-50 | 10 | 42 | 8 | 800 | 50 | 80 | 10 | To be Customized |
| OMCS-80 | 15 | 70 | 10 | 1500 | 80 | 200 | 20 | To be Customized |
| OMCS-100 | 20 | 88 | 12 | 2000 | 100 | 300 | 30 | To be Customized |
Notes:
1. The above parameters is only for reference, the actual parameters is made according to the actual requirement and site condition.
2. Power: 3 Phase / 380 V /50 Hz (Can be customized)
Central Material Room (Central Control Station, Electric Cabinet, Central Blower, Material Dryer)

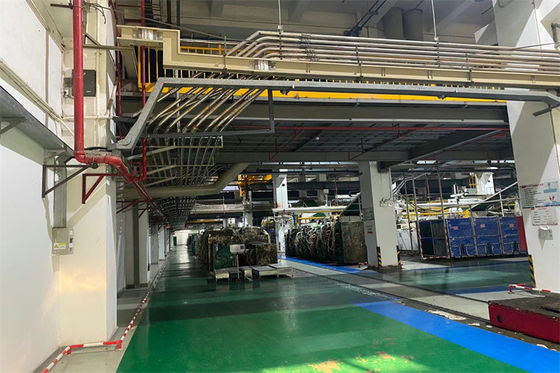

Central Piping System (with vacuum air pipe, material pipe, pipe clamps, bends, supporting frames and etc)

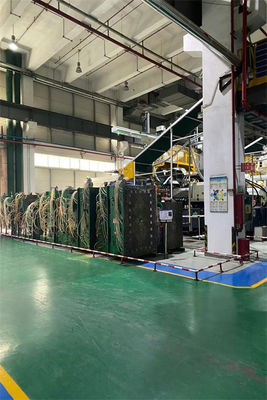

Soft pipes for connecting the SUS pipes to the hopper receiver at the feed port of each IMMs (Material cut-off device, Air cut-off device, hopper receivers)

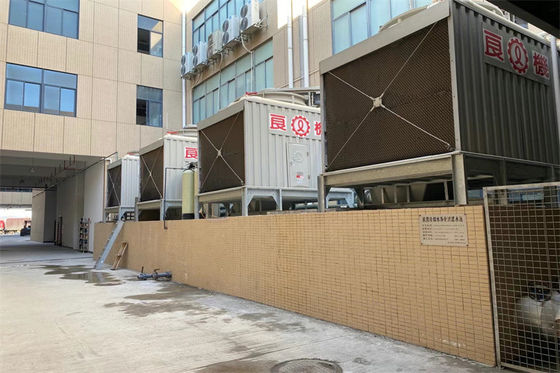

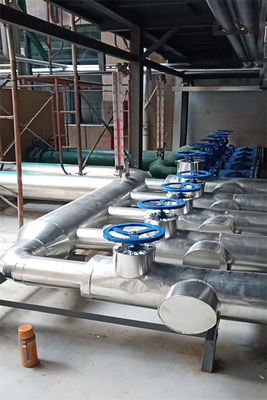

ORSTE’s large scale Central Material Conveying System and cooling water circulation system including three major systems of centralized raw material drying, water temperature control and metering & mixing, are extensively applied in plastic injection molding industry.
The main products of the company are a series of high-tech products including Desiccant Honeycomb Dehumidifiers, Hopper Dryers, “Three-in-one” Compact Dryers, Auto / Semi-auto Weighing & Packing Machine (for plastic 25kg packages), Auto-loaders, Mold Temperature Controllers, Industrial Chillers, Mixers and Blenders, Masterbatch Dosers, Granulators, and Vibrating Screens.
