Product Details:
|
| Name: | Central Feeding System For Plastic | Material: | Stainless Steel |
|---|---|---|---|
| Color: | Can Be Customized | Application: | Plastic Material Feeding |
| Options: | Drying, Mixing | Voltage: | 3 Phase / 380V / 50 Hz |
| Key Selling Point: | Intelligent, Easy To Operate, Low Energy Consumption, Improve Production Efficiency | Warranty: | 12 Months |
| Highlight: | Stainless Steel Centralized Feeding System,Material Handling Centralized Feeding System,SGS Central Drying Systems |
||
OMCS Central Feeding System.pdf
Utilizing the method of vacuum conveying, Orste Central Material Feeding/Conveying System (OMCS) transports plastic materials from storage silos to the central dehumidifying & drying system through centralized piping, and then convey the dried material to each molding machine. OMCS is suitable for the integrity of the material of huge capacity, eliminates waste and improves the cost effectiveness of the factory.
Utilizing the method of vacuum conveying, Orste Central Material Feeding/Conveying System (OMCS) transports plastic materials from storage silos to the central dehumidifying & drying system through centralized piping, and then convey the dried material to each molding machine. OMCS is suitable for the integrity of the material of huge capacity, eliminates waste and improves the cost effectiveness of the factory.
Continuous auto-operation.
Various dosing & mixing for different colors and materials.
Effective instant recycling which can mix regrind and new material flexibly.
Offer you the most flexibility to easily be expanded or modified equipment, make sure your production safer and more reliable and keep the best working environment.
Ideal design of integrating the monitoring panel and the control panel.
Friendly interface and accurate control.
Operating and monitoring by a single personnel and can be linked with a PC.
Conveying time, material types, and pipe cleaning time of each station are adjusted by the control station.
Displaying panel shows you how stations, dryers and storage silos work, such as on/off, full or lack of material, and material types of each station.
Extensive interface allows easy expansions up to 40 stations for future demands.
Compact and durable.
Operating status:
Display the operating status of machines.
Set-up status:
Display the set up status, such as working stations, material types, material conveying time, and pipe cleaning time.
Abnormal:
Display abnormal machines and material type.
Ideal design of integrating the monitoring panel and control panel, User-friendly interface, Compact & Durable, Small space to make more productive use of factory floor space.
Pressure air adjustable.
Maximum conveying distance can be 150 meters.
Suitable for conveying the material of large capacity.
Stainless steel made to avoid pollution of materials. Quick coupling devices for quick set-up or easy disconnected with pipes.
Collect dust from the conveying system efficiently.
Double protections for high-pressure blower in operation. Easy to maintain: only to change the filter on time and clean conveniently.
Dedicated and compact design.
Material Cut-off Valve: Stainless steel made, durable device design.
Air Cut-off Valve: Stainless steel made, reliable device design.
Compression Couples: Stainless steel made, connect pipes to construct the completely-closed central vacuum conveying system.
| Model | Blower (Hp) | IMMs (set) | Material | Throughput (Kg/H) | Feeding Point (pcs) | Max. Feeding Distance (m) | Max. Feeding Height (m) | Remarks |
| OMCS-5 | 5 | 5 | 1 | 500 | 5 | 20 | 5 | To be Customized |
| OMCS-10 | 7.5 | 7 | 4 | 800 | 10 | 50 | 8 | To be Customized |
| OMCS-20 | 10 | 14 | 6 | 800 | 20 | 80 | 10 | To be Customized |
| OMCS-30 | 10 | 22 | 8 | 800 | 30 | 80 | 10 | To be Customized |
| OMCS-50 | 10 | 42 | 8 | 800 | 50 | 80 | 10 | To be Customized |
| OMCS-80 | 15 | 70 | 10 | 1500 | 80 | 200 | 20 | To be Customized |
| OMCS-100 | 20 | 88 | 12 | 2000 | 100 | 300 | 30 | To be Customized |
Notes:
1. The above parameters is only for reference, the actual parameters is made according to the actual requirement and site condition.
2. Power: 3 Phase / 380 V /50 Hz (Can be customized)

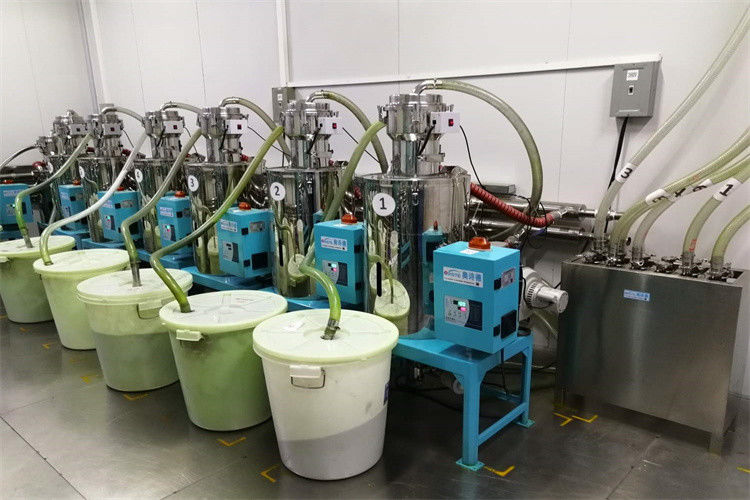

Central Material Room (Central Control Station, Electric Cabinet, Central Blower, Material Dryer)
PLC Touch Screen (with many screens for different functions) of Central Control Station

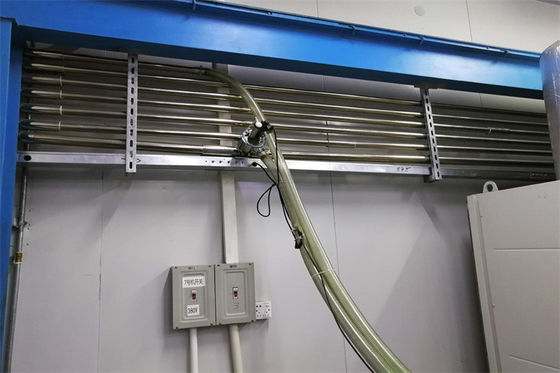

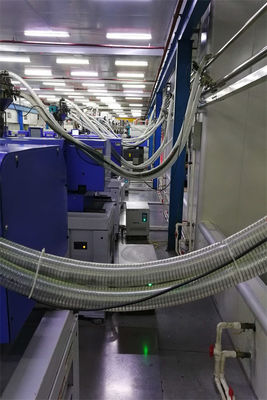

Central Piping System (with vacuum air pipe, material pipe, pipe clamps, bends, supporting frames and etc)
DONGGUAN ORSTE MACHINERY EQUIPMENT CO., LTD. was established in 2007 in “Made in China” City--Dongguan. After many years of growth and development, ORSTE has become a technology-driven and innovative joint-stock enterprise with independent design and development ability, integrating technical development, product design, manufacturing, sales and maintenance, market development.
ORSTE now owns one manufacturing factory and many sales agent service centers in Southern, Northern, Eastern and Southwest part of China. With a foothold set in Southern China, we are serving global markets. ORSTE devotes itself to improving the product quality and working environment, optimizing production flow of plastic processing and upgrading processing technic with environmental protection and energy saving design for plastic factories by supplying integral automation systems to them.
Electrical installation of the machine should be done by qualified electricians.
Connecting the cooling water (if needed) after the machine is installed in a appointing place, make sure the inlet and outlet water pipe is in good condition.
Before connecting to AC Power Source, turn power switch to OFF position. While AC power source is connected, make sure specifications and overload protection rating of the power switch are suitable and reliable. When the machine is under care or maintenance, turn off both power switch and automatic operation switch.
The following statements clarify the responsibilities and regulations born by any buyer or user who purchases products and accessories from ORSTE (including employees and agents).
ORSTE is exempted from liability for any costs, fees, claims and losses caused by reasons below:
1. Any careless or man-made installations, operation and maintenances upon machines without referring to the Manual prior to machine using.
2. Any incidents beyond human reasonable controls, which include man-made vicious or deliberate damages or abnormal power, and machine faults caused by irresistible natural disasters including fire, flood, storm and earthquake.
3. Any operational actions that are not authorized by ORSTE upon machine, including adding or replacing accessories, dismantling, delivering or repairing.
4. Employing consumables or oil media that are not appointed by ORSTE.
