OMCS-80 Centralized Dehumidification Drying Feeding System Granulating Plastic Processing

OMCS-80 Centralized Dehumidification Drying Feeding System Granulating Plastic Processing
OMCS-80 Centralized Dehumidification Drying Feeding System Granulating Plastic Processing
OMCS-80 Centralized Dehumidification Drying Feeding System Granulating Plastic Processing OMCS-80 Centralized Dehumidification Drying Feeding System Granulating Plastic Processing OMCS-80 Centralized Dehumidification Drying Feeding System Granulating Plastic Processing OMCS-80 Centralized Dehumidification Drying Feeding System Granulating Plastic Processing OMCS-80 Centralized Dehumidification Drying Feeding System Granulating Plastic Processing

Large Image :  OMCS-80 Centralized Dehumidification Drying Feeding System Granulating Plastic Processing

Product Details:
Place of Origin: Dongguan, China
Brand Name: ORSTE
Certification: CE, ISO, SGS
Model Number: OMCS-80
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set / Order
Price: USD 59980/SET
Packaging Details: Standard Export Packing
Delivery Time: 7-15 days
Payment Terms: TT, LC, Paypal, West Union, Cash
Supply Ability: 500-3000 Sets / Year

OMCS-80 Centralized Dehumidification Drying Feeding System Granulating Plastic Processing

Description
Material: SUS Steel Application: Plastic Processing
Function: Combination Of Multi Purpose Voltage: 380V/50Hz/3Phase As Usual
Condition: New Warranty: 1 Year+Lifetime Technical Support
Conveying Capacity: 0.5-2T/H Type: Roots Blower With CE
Highlight:

Plastic Central Dehumidification System

,

Feeding Central Dehumidification System

OMCS-80 Centralized Dehumidification Drying Feeding System Granulating Plastic Processing

OMCS Central Feeding System.pdf



INTRODUCTION of Central Feeding System



Utilizing the method of vacuum conveying, Orste Central Material Conveying System (OMCS) transports plastic materials from storage silos to the central dehumidifying & drying system through centralized piping, and then convey the dried material to each molding machine. OMCS is suitable for the integrity of the material of huge capacity, eliminates waste and improves the cost effectiveness of the factory.



OMCS not only presents the substantially auto-operation in production, but also controls the high standard of production, various dosing & mixing, or effective instant recycling which can mix regrind and new material flexibility. Offer you the most flexibility to easily be expanded or modified equipment as your business grows or changes. Besides, make sure your production safer and more reliable and keep the best working environment.



Features of Central Feeding System



Continuous auto-operation.

Various dosing & mixing for different colors and materials.

Effective instant recycling which can mix regrind and new material flexibly.

Offer you the most flexibility to easily be expanded or modified equipment, make sure your production safer and more reliable and keep the best working environment.



Components of Central Feeding System



OMCS Control Station of Central Feeding System



Ideal design of integrating the monitoring panel and the control panel.

Friendly interface and accurate control.

Operating and monitoring by a single personnel and can be linked with a PC.

Conveying time, material types, and pipe cleaning time of each station are adjusted by the control station.

Displaying panel shows you how stations, dryers and storage silos work, such as on/off, full or lack of material, and material types of each station.

Extensive interface allows easy expansions up to 40 stations for future demands.

Compact and durable.



Microprocessor touch-style control panel of Central Feeding System



Operating status:

Display the operating status of machines.

Set-up status:

Display the set up status, such as working stations, material types, material conveying time, and pipe cleaning time.

Abnormal:

Display abnormal machines and material type.



“OMCS” Control Unit

Ideal design of integrating the monitoring panel and control panel, User-friendly interface, Compact & Durable, Small space to make more productive use of factory floor space.



High-pressure Blower

Pressure air adjustable.

Maximum conveying distance can be 150 meters.

Suitable for conveying the material of large capacity.

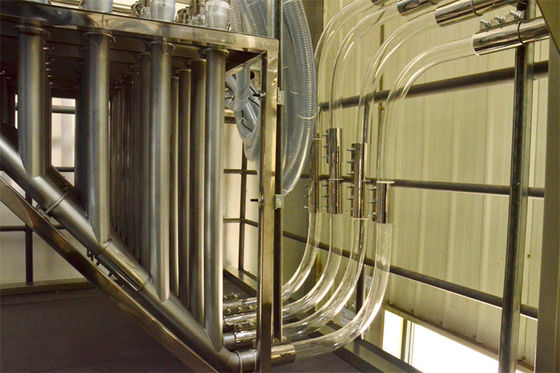

Material Selector

Stainless steel made to avoid pollution of materials. Quick coupling devices for quick set-up or easy disconnected with pipes.



Dust-removing Combination: Vortex Cylone & Pulse Dust Collector

Collect dust from the conveying system efficiently.

Double protections for high-pressure blower in operation. Easy to maintain: only to change the filter on time and clean conveniently.

Dedicated and compact design.



Material Cut-off Valve: Stainless steel made, durable device design.

Air Cut-off Valve: Stainless steel made, reliable device design.

Compression Couples: Stainless steel made, connect pipes to construct the completely-closed central vacuum conveying system.



Parameters of Central Feeding System



Model Blower (Hp) IMMs (set) Material Throughput (Kg/H) Feeding Point (pcs) Max. Feeding Distance (m) Max. Feeding Height (m) Remarks
OMCS-5 5 5 1 500 5 20 5 To be Customized
OMCS-10 7.5 7 4 800 10 50 8 To be Customized
OMCS-20 10 14 6 800 20 80 10 To be Customized
OMCS-30 10 22 8 800 30 80 10 To be Customized
OMCS-50 10 42 8 800 50 80 10 To be Customized
OMCS-80 15 70 10 1500 80 200 20 To be Customized
OMCS-100 20 88 12 2000 100 300 30 To be Customized

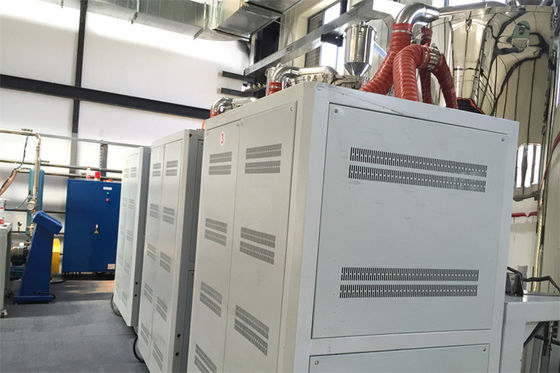

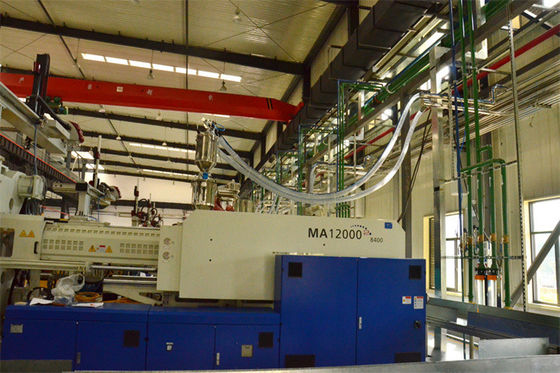

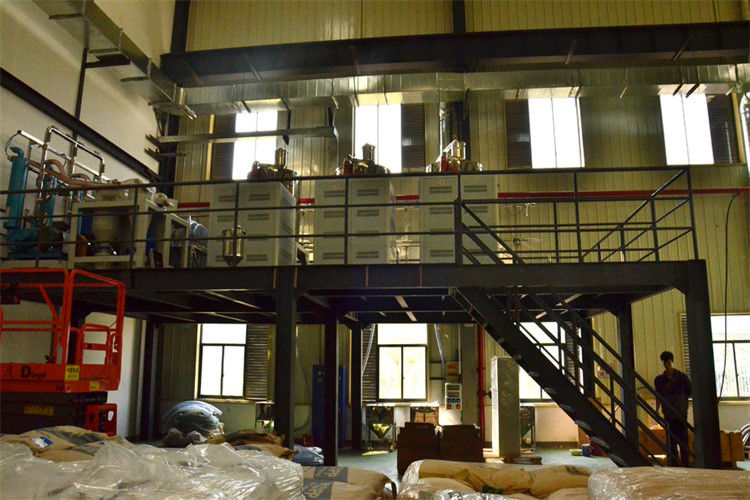

Application Cases of Central Feeding System



OMCS-80 Centralized Dehumidification Drying Feeding System Granulating Plastic Processing 0



Electric Cabinet of the Central Feeding System combines all the electric connection in 1 single electric cabinet, include the electric cable of all machines, signal wire of OMHs, OPHs, Air Cut-off Device, Material Cut-off Device and etc. It is an important part for the central feeding system.
