Product Details:
|
Material: | Stainless Steel | Function: | For Mixing Plastic Material |
---|---|---|---|
Color: | Gray Or Polished | Extra: | Add Drying Function |
Application: | Machinery & Hardware,Chemical | Voltage: | 220V/380V |
Automatic Grade: | Semi-Automatic | After-sales Service Provided: | Video Technical Support,Online Support,Engineers Available To Service Machinery Overseas,Field Maintenance And Repair Service |
Condition: | New | Delivery: | 20 Days |
Highlight: | Granules Plastic Mixing Machine,Resin Plastic Mixing Machine,Polished Vertical Mixing Machine |
OVM Vertical Mixer Plastic Mixing Machine.pdf
Material-contact surface are all made of stainless steel ensures no contamination to the material.
Vertical screw features fast and even mixing.
Detachable top lid design makes it convenient for cleaning and maintenance.
Auto timing device can set auto-stop within the range from 0 hr to 300 hrs.
Adopt the working method of loading while mixing, thus the purpose of saving mixing time and improving working efficiency can be achieved.
Protection devices like main power switch and safety interlock ensure the safety of the operator.
OVM vertical mixer is mainly applicable in the mixing of large quantity of plastic materials like raw materials, masterbatch and recycled materials. OVM can not be used to deal with plastic powder and all kinds of foods, chemicals, and inflammable, explosive and volatile materials.
Model |
Motor Power (kw) |
Capacity (Ton) |
Outer Dimension (Diameter * Height) (cm) |
Weight (kg) |
OVM-500 |
3 |
0.5 |
Ф120 * 235 |
450 |
OVM-1000 |
4 |
1 |
Ф140 * 235 |
660 |
OVM-2000 |
5.5 |
2 |
Ф175 * 355 |
780 |
OVM-3000 |
7.5 |
3 |
Ф210 * 375 |
890 |
OVM-5000 |
11 |
5 |
Ф243 * 435 |
1100 |
OVM-6000 |
11 |
6 |
Ф260 * 455 |
1270 |
OVM-7000 |
11 |
7 |
Ф270 * 470 |
1560 |
OVM-8000 |
11 |
8 |
Ф275 * 495 |
1750 |
OVM-10000 |
11 |
10 |
Ф290 * 525 |
1860 |
OVM-12000 |
11 |
12 |
Ф310 * 545 |
2015 |
OVM-15000 |
15 |
15 |
Ф330 * 585 |
2180 |

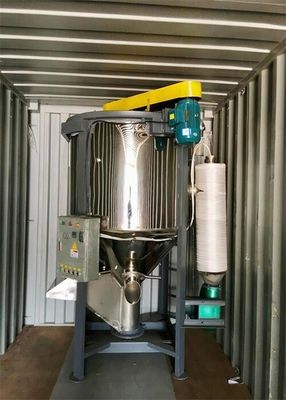

The above picture, OVM-1000 vertical mixer is equipped with 1 heater and 1 blower (optional) for mixing and drying of mild hygroscopic plastic resins. If the plastic material contains more moisture and the production requires less moisture content, then heater and blower are optional for fast drying and good product manufacturing.
Notes for Installation and Positioning:
1) Machine just can be mounted in vertical position. Make sure there’s no pipe, fixed structure or other objects above the installing location and around the machine which may block machine’s installation, hit objects or injure human person.
2) In order to maintain convenient operation, it’s suggested to keep 1m space around the machine. Please keep at least 2m distance between the device and the inflammable goods.
3) This series of models only could be applied in working environment with good ventilation.
