Masterbatch Color Plastic Mixing Machine Plastic Extrusion Volumetric Doser

Masterbatch Color Plastic Mixing Machine Plastic Extrusion Volumetric Doser
Masterbatch Color Plastic Mixing Machine Plastic Extrusion Volumetric Doser Masterbatch Color Plastic Mixing Machine Plastic Extrusion Volumetric Doser Masterbatch Color Plastic Mixing Machine Plastic Extrusion Volumetric Doser Masterbatch Color Plastic Mixing Machine Plastic Extrusion Volumetric Doser

Large Image :  Masterbatch Color Plastic Mixing Machine Plastic Extrusion Volumetric Doser

Product Details:
Place of Origin: Dongguan, China
Brand Name: ORSTE
Certification: CE, ISO, SGS
Model Number: OVD30-24 ~ OVD-D-50/50
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set / Order
Price: USD1000~4000/Set
Packaging Details: Standard Export Packing
Delivery Time: 7-15 days
Payment Terms: TT, LC, Paypal, West Union, Cash
Supply Ability: 500-3000 Sets / Year

Masterbatch Color Plastic Mixing Machine Plastic Extrusion Volumetric Doser

Description
Material: SUS Steel Function: Volumetric Dosing
Application: Dosing And Mixing Voltage: 220V,50/60HZ
Automatic Grade: Automatic After-sales Service Provided: Video Technical Support,Online Support,Engineers Available To Service Machinery Overseas
Condition: New Key Selling Points: Easy To Operate,High-accuracy,Multifunctional,Automatic,Energy Saving
Highlight:

Masterbatch Color Plastic Mixing Machine

,

SGS Plastic Mixing Machine

,

Plastic Extrusion Volumetric Doser

Masterbatch Color Plastic Mixing Machine Plastic Extrusion Volumetric Doser​

OVD Volumetric Doser Masterbatch Dosing Machine.pd...



NAMING PRINCIPLE of Plastic Volumetric Doser



OVD - xx - xx - x

① ② ③ ④

① Orste Volumetric Doser

② D=Double Color Dosers

③ Gear Ratio of Motor

④ Screw Dia. (mm)



FEATURES of Plastic Volumetric Doser



  1. Unit is comprised of standard modules for ease of cleaning, disassembly and interchangeability.

  2. Adopt efficient brushless DC motor and free from maintenance.

  3. Dosing screws are made of 304 stainless steel for precision and durability.

  4. Hopper magnets are equipped in standard base to avoid molding machine screw damage.

  5. External signals can be directly input to control box.

  6. The current mode can be recorded without interrupted by power failure.

  7. Compulsory material cleaning makes it easier to replace masterbatch.

  8. Both masterbatch blockage and overload can be detected, then machine will halt and sound an alarm.



OPTIONS of Plastic Volumetric Doser



Heavy base, low level sensor



Application of Plastic Volumetric Doser



OVD series volumetric dosers are suitable for auto-proportional mixing of virgin materials, regrinds, master batch or additives. The color additives are added according to the preset proportion and parameters, error limit is within 1%. There are two modes of OVD which is separately applied to injection molding and extrusion molding. A gear motor with various gear ration is coupled to a dosing screw of 12, 16, 20, 24mm in diameter to give several models with output ranging from 0.1kg/hr to 110kg/hr. Three-color and four-color dosers are available for customers to use in various fields.



Functional Scheme of Plastic Volumetric Doser



Signals from the digital control cabinet are sent to motor, and motor begins to work. The rotating force is transferred to the dosing screw through shaft connector. Color additives in the hopper fall into the groove of conveying screw, then are taken to hopper base by rotating action of the screw.



Parameters of Plastic Volumetric Doser



Model

Single Color Unit

Double Color Unit

OVD-30-24

OVD-30-20

OVD-30-16

OVD-30-12

OVD-50-20



OVD-D-30/30

OVD-D-30/50

OVD-D-50/50

Motor Power (w)

30

30

30

30

30

30×2

30×2

30×2

Motor Rotating Speed (rpm)

3000

3000

3000

3000

3000

3000

3000

3000

Output Power of Mixer (w)

90※

90※

90※

90※

90※

90※

90※

90※

Screw External Dia. (mm)

24

20

16

12

20

*

*

*

Output Capacity (kg/h)

1.4-50

0.9-40.3

0.3-12.3

0.1-3.8

0.2- 24

**

**

**

Storage Hopper (L)

12

12

12

12

12

12×2

12×2

12×2

Gear Ratio

30:1

30:1

30:1

30:1

50:1

30:1 / 30:1

30:1 / 50:1

50:1 / 50:1

Dimension

H (mm)

520

520

520

520

520



615

615

615

W (mm)

610

610

610

610

610

1045

1045

1045

D (mm)

335

335

335

335

335

335

335

335

Weight (kg)

15

15

15

15

15

33

33

33

We reserve the right to change parameters without prior notice.



Notes:

(1) All output capacities of above models are based on data from bulk density 1.2kg/L, dia. 2-3mm masterbatch in a test criteria of continuous running, which is only for reference. Max. capacity of the machine is subject to the size and composition of the material.

(2) “※”means that mixer base is optional.

(3) “*” stands for external dia. of screw is up to model selected.

(4) “**” stands for the output capacity depends on model selected, data of the single color doser can be a reference. For example: OVD-D-30-24, output capacity 1.4-50kg/hr.

(5) Power: 1ф, 115/230VAC, 50Hz, but it will be 3ф, 230/400/460/575VAC, 50/60Hz when being equipped with mixer.

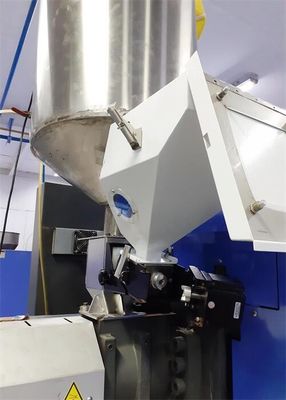

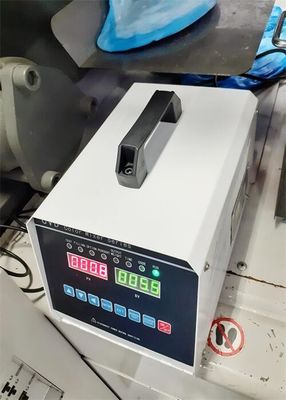

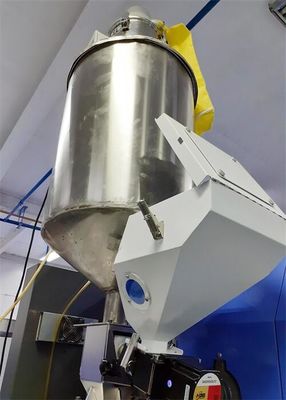

Application Case of Single Color Volumetric Doser for Injection Molding



Masterbatch Color Plastic Mixing Machine Plastic Extrusion Volumetric Doser 0
