Amorphous PLA PET Crystallizer Dryer Machine OCR-450 Customized Color

OCR Crystalizer PET Crystallizing Drying Machine.p...

Plastic Crystallizer, Crystallizer, PET Crystallizer, Industrial Crystallizer, Crystallizing Dryer, PET Dryer, Plastic Dryer

“OCR” Orste PET Crystallizers

NAMING PRINCIPLE of PET Dehumidifying Dryers

OCR-xxx

① ②

① Orste PET Crystallizer

② Hopper Capacity (L)

FEATURES of PET Dehumidifying Dryers

• Simplify and improve drying efficiency.
• Fixed speed of agitator makes materials not lump together during the crystallization.
• Materials can be dried under high temperature to improve drying efficiency.
• Cyclone dust collector is standard equipped, which is applied to dust-rich place. Can effectively reduce the load on filter bag, and reduce the numbers of filter bag cleaning, thus extend the life span of the filter bag.
• With double overheat protector, it can reduce the possibility of either mechanical or man-made problems.
• Equipped with rotary valve with good sealing performance, which can output crystallized material accurately.
• Equipped with material level switch, which can detect material level accurately and make operation reliable.
• Equipped with negative pressure tester to immediately test the ventilation of the filter. Given an alarm when the negative pressure is higher than the setting value, clean the filter to avoid blockage.

OPTIONS of PET Dehumidifying Dryers

Dehumidifier, hopper receiver, auto-loader, magnetic base, suction box, screw feeder.

APPLICATION of PET Dehumidifying Dryers

OCR closed-loop crystallizers are used for constant crystallization of un-crystallized PET regrinds or pellets. Processed materials can then be dried and dehumidified directly. This system mainly consists of heating elements, insulated hopper and agitator screw mixing device. After un-crystallized PET materials fed into the hopper, the system starts crystallization and agitator starts blending to prevent formation in lumps. Crystallized materials can be conveyed to material storage bin or into drying hopper.

FUNCTIONAL SCHEME of PET Dehumidifying Dryers

Once material filling starts, heat blower starts up and material heating begins. Control cabinet would stop sending signals to auto loader when material filling amount is higher than material level switch. Then material heating lasts for a while. When temperature sensing needle detects the value of reaching the set crystallized temperature, material would be conveyed out via feeding device; meanwhile, as material level in hopper lowers gradually, filling device starts to supply the uncrystallized material accordingly to realize the continuous crystallization process.

When temperature sensing needle detects the temperature value of stopping material conveying, feeding device halts. If temperature rises again to reach the set crystallized temperature, feeding device will be activated to work so that the continuous crystallization process can be realized through this kind of circle.

PARAMETERS of PET Dehumidifying Dryers

We reserve the right to change parameters without prior notice.

Notes:

(1) Above Max.processing capacity is based on pellet material of 0.85kg/L in bulk density and 3-5mm in diameter.

(2) Power: 3ф, 230/400/460/575VAC, 50/60Hz.

Company Profile

DONGGUAN ORSTE MACHINERY EQUIPMENT CO., LTD. was established in 2007 in “Made in China” City--Dongguan. After many years of growth and development, ORSTE has become a technology-driven and innovative joint-stock enterprise with independent design and development ability, integrating technical development, product design, manufacturing, sales and maintenance, market development.

ORSTE now owns one manufacturing factory and many sales agent service centers in Southern, Northern, Eastern and Southwest part of China. With a foothold set in Southern China, we are serving global markets. ORSTE devotes itself to improving the product quality and working environment, optimizing production flow of plastic processing and upgrading processing technic with environmental protection and energy saving design for plastic factories by supplying integral automation systems to them.

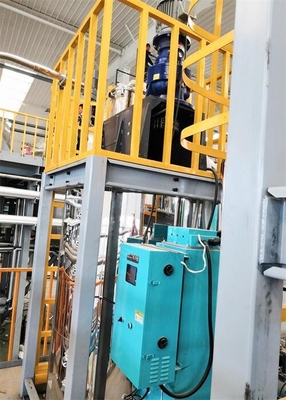

Application Cases of PET Dehumidifying Dryers

FAQ

Q1: What kind of company are you? Trading company or manufacturer?
A: We are a manufacturing company with more than 12 years design and manufacturing experience in Dongguan, Guangdong Province, China.

Q2: How long is the delivery time?
A: 7-30 days after order confirmed. Based on the actual requirement.

Q3: What's the MOQ?
A: 1 set per order.

Q4: What is your terms of payment?
A: For order amount ≤ 2000 USD, 100% in advance; For order amount ≥ 2000 USD, T/T 50% as order, balance 50% T/T before shipping. We will show you the pictures and videos of the machines for the order.

Q5: What are the trading terms?
A: EXW, FOB and CIF.

Q6: Can you do OEM?
A: Yes, OEM and ODM service are provided.

Q7: Do you test all your machines before packing and delivery?
A: Yes, we haved tested all our machines well before delivery.

Q8: How to provide the after-sales service?
A: 1st, our machines are manufactured in strict quality control system to make sure there is few faulties occur after installation, but if any faulty, we can send new spare parts for free in 12 months warranty time.
2nd, our technician will periodically follow up customer to help to do maintenance and ensure equipment operation 7/24 be guaranteed.

3rd, we have over 30 3rd-party cooperation agents or service centers around the world to proivde in-time after-sales service for the customers nearby.

Q9: How can get the shipping cost?
A: We can calculate the shipping cost for you if you provide us your destination port.
