Industrial TPU PET Crystallizer Dryer For Plastic Crystallization And Drying SUS

OCR Crystalizer PET Crystallizing Drying Machine.p...

Plastic Crystallizer, Crystallizer, PET Crystallizer, Industrial Crystallizer, Crystallizing Dryer, PET Dryer, Plastic Dryer

“OCR” Orste PET Crystallizers

NAMING PRINCIPLE of Plastic Drying Machine

OCR-xxx

① ②

① Orste PET Crystallizer

② Hopper Capacity (L)

FEATURES of Plastic Drying Machine

• Simplify and improve drying efficiency.
• Fixed speed of agitator makes materials not lump together during the crystallization.
• Materials can be dried under high temperature to improve drying efficiency.
• Cyclone dust collector is standard equipped, which is applied to dust-rich place. Can effectively reduce the load on filter bag, and reduce the numbers of filter bag cleaning, thus extend the life span of the filter bag.
• With double overheat protector, it can reduce the possibility of either mechanical or man-made problems.
• Equipped with rotary valve with good sealing performance, which can output crystallized material accurately.

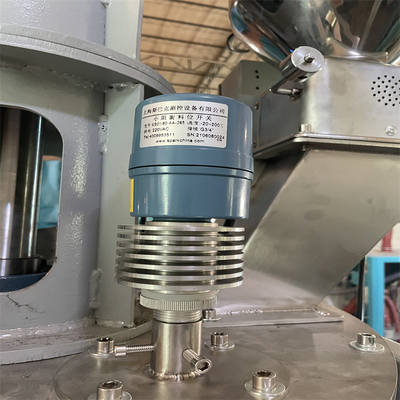

• Equipped with material level switch, which can detect material level accurately and make operation reliable.
• Equipped with negative pressure tester to immediately test the ventilation of the filter. Given an alarm when the negative pressure is higher than the setting value, clean the filter to avoid blockage.

OPTIONS of Plastic Drying Machine

Dehumidifier, hopper receiver, auto-loader, magnetic base, suction box, screw feeder.

APPLICATION of Plastic Drying Machine

OCR closed-loop crystallizers are used for constant crystallization of un-crystallized PET regrinds or pellets. Processed materials can then be dried and dehumidified directly. This system mainly consists of heating elements, insulated hopper and agitator screw mixing device. After un-crystallized PET materials fed into the hopper, the system starts crystallization and agitator starts blending to prevent formation in lumps. Crystallized materials can be conveyed to material storage bin or into drying hopper.

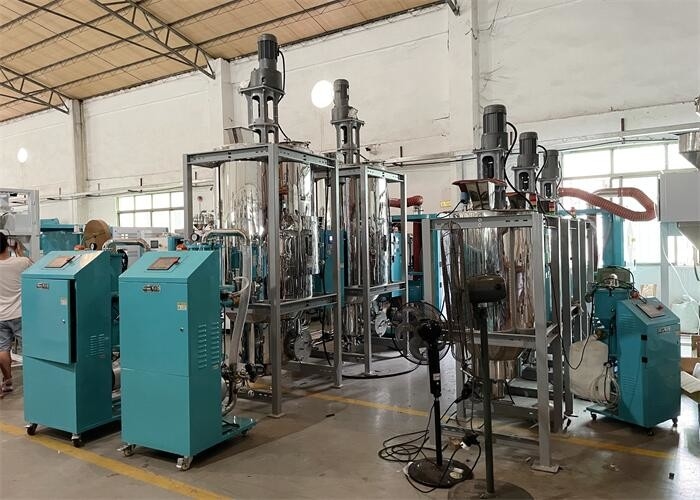

Application Cases of Plastic Drying Machine

FUNCTIONAL SCHEME of Plastic Drying Machine

Once material filling starts, heat blower starts up and material heating begins. Control cabinet would stop sending signals to auto loader when material filling amount is higher than material level switch. Then material heating lasts for a while. When temperature sensing needle detects the value of reaching the set crystallized temperature, material would be conveyed out via feeding device; meanwhile, as material level in hopper lowers gradually, filling device starts to supply the uncrystallized material accordingly to realize the continuous crystallization process.

When temperature sensing needle detects the temperature value of stopping material conveying, feeding device halts. If temperature rises again to reach the set crystallized temperature, feeding device will be activated to work so that the continuous crystallization process can be realized through this kind of circle.

PARAMETERS of Plastic Drying Machine

We reserve the right to change parameters without prior notice.

Notes:

(1) Above Max.processing capacity is based on pellet material of 0.85kg/L in bulk density and 3-5mm in diameter.

(2) Power: 3ф, 230/400/460/575VAC, 50/60Hz.

Matters Needing Attention

Electrical installation of the machine should be done by qualified electricians.

Connecting the cooling water (if needed) after the machine is installed in a appointing place, make sure the inlet and outlet water pipe is in good condition.

Before connecting to AC Power Source, turn power switch to OFF position. While AC power source is connected, make sure specifications and overload protection rating of the power switch are suitable and reliable. When the machine is under care or maintenance, turn off both power switch and automatic operation switch.
