Product Details:
|
| Color: | Customized | Material: | SUS Steel |
|---|---|---|---|
| Function: | Volumetric Dosing | Application: | Dosing And Mixing |
| Automatic Grade: | Automatic | Type: | Multi-Function Packaging Machine |
| After-sales Service Provided: | Video Technical Support,Online Support,Free Spare Parts,Engineers Available To Service Machinery Overseas,Field Maintenance And Repair Service | Condition: | New |
| Highlight: | Color Additive Volumetric Dosing System,Plastic Injection Volumetric Dosing System |
||

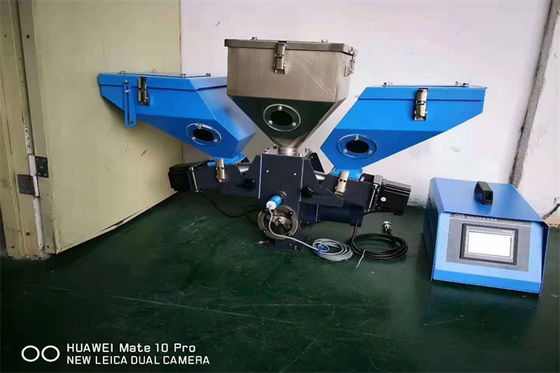

OVD Volumetric Doser Masterbatch Dosing Machine.pd...
OVD - xx - xx - x
① ② ③ ④
① Orste Volumetric Doser
② D＝Double Color Dosers
③ Gear Ratio of Motor
④ Screw Dia. (mm)

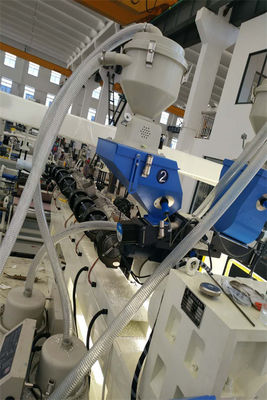

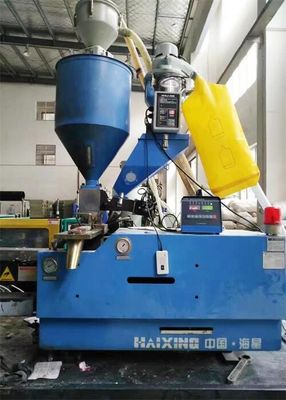

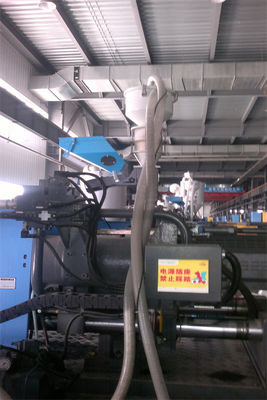

Heavy base, low level sensor
OVD series volumetric dosers are suitable for auto-proportional mixing of virgin materials, regrinds, master batch or additives. The color additives are added according to the preset proportion and parameters, error limit is within 1%. There are two modes of OVD which is separately applied to injection molding and extrusion molding. A gear motor with various gear ration is coupled to a dosing screw of 12, 16, 20, 24mm in diameter to give several models with output ranging from 0.1kg/hr to 110kg/hr. Three-color and four-color dosers are available for customers to use in various fields.
Signals from the digital control cabinet are sent to motor, and motor begins to work. The rotating force is transferred to the dosing screw through shaft connector. Color additives in the hopper fall into the groove of conveying screw, then are taken to hopper base by rotating action of the screw.
| Model | Single Color Unit | Double Color Unit | ||||||||
| OVD-30-24 | OVD-30-20 | OVD-30-16 | OVD-30-12 | OVD-50-20 | OVD-D-30/30 | OVD-D-30/50 | OVD-D-50/50 | |||
| Motor Power (w) | 30 | 30 | 30 | 30 | 30 | 30×2 | 30×2 | 30×2 | ||
| Motor Rotating Speed (rpm) | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | ||
| Output Power of Mixer (w) ※ | 90※ | 90※ | 90※ | 90※ | 90※ | 90※ | 90※ | 90※ | ||
| Screw External Dia. (mm) | 24 | 20 | 16 | 12 | 20 | * | * | * | ||
| Output Capacity (kg/h) | 1.4-50 | 0.9-40.3 | 0.3-12.3 | 0.1-3.8 | 0.2- 24 | ** | ** | ** | ||
| Storage Hopper (L) | 12 | 12 | 12 | 12 | 12 | 12×2 | 12×2 | 12×2 | ||
| Gear Ratio | 30:1 | 30:1 | 30:1 | 30:1 | 50:1 | 30:1 / 30:1 | 30:1 / 50:1 | 50:1 / 50:1 | ||
| Dimension | ||||||||||
| H (mm) | 520 | 520 | 520 | 520 | 520 | 615 | 615 | 615 | ||
| W (mm) | 610 | 610 | 610 | 610 | 610 | 1045 | 1045 | 1045 | ||
| D (mm) | 335 | 335 | 335 | 335 | 335 | 335 | 335 | 335 | ||
| Weight (kg) | 15 | 15 | 15 | 15 | 15 | 33 | 33 | 33 | ||
We reserve the right to change parameters without prior notice.
Notes:
(1) All output capacities of above models are based on data from bulk density 1.2kg/L, dia. 2-3mm masterbatch in a test criteria of continuous running, which is only for reference. Max. capacity of the machine is subject to the size and composition of the material.
(2) “※”means that mixer base is optional.
(3) “*” stands for external dia. of screw is up to model selected.
(4) “**” stands for the output capacity depends on model selected, data of the single color doser can be a reference. For example: OVD-D-30-24, output capacity 1.4-50kg/hr.
(5) Power: 1ф, 115/230VAC, 50Hz, but it will be 3ф, 230/400/460/575VAC, 50/60Hz when being equipped with mixer.
