Manual / Automatic Vertical Plastic Pellet Mixer Blender Machine OVM-5000​

OVM Vertical Mixer Plastic Mixing Machine.pdf

NAMING PRINCIPLE of Plastic Material Mixer Machine

OVM-xxx

① ②

① Orste Vertical Mixer

② Mixer Capacity (kg)

FEATURES of Plastic Material Mixer Machine

• Material-contact surface are all made of stainless steel ensures no contamination to the material.

• Vertical screw features fast and even mixing.

• Detachable top lid design makes it convenient for cleaning and maintenance.

• Auto timing device can set auto-stop within the range from 0 hr to 300 hrs.

• Adopt the working method of loading while mixing, thus the purpose of saving mixing time and improving working efficiency can be achieved.

• Protection devices like main power switch and safety interlock ensure the safety of the operator.

APPLICATION of Plastic Material Mixer Machine

OVM Vertical Mixer is mainly applicable in the mixing of large quantity of plastic materials like raw materials, masterbatch and recycled materials. OVM can not be used to deal with plastic powder and all kinds of foods, chemicals, and inflammable, explosive and volatile materials.

FUNCTIONAL SCHEME of Plastic Material Mixer Machine

To achieve the aim of mixing material, screw blades are used to generate vortex. Materials are sucked towards mixing screws at the center of hopper bottom by vortex, the materials whirl upward to the top and fall down in the form of umbrella, it works in such a recycle, so that the evenly mixing can be fulfilled in a short period.

PARAMETERS of Plastic Material Mixer Machine

We reserve the right to change parameters without prior notice.

Notes:

(1) Above loading capacity is based on pellet material of 0.65kg/L in bulk density and 3-5mm in diameter.

(2) Power: 3ф, 230/400/460/575VAC, 50/60Hz.

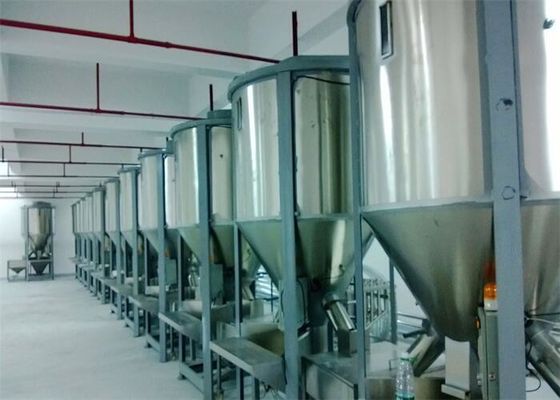

Application Cases of Plastic Material Mixer Machine

In the above picture, the OVM vertical mixer is applied to mix virgin plastic granules and recycled plastic film flakes and masterbatch, the materials are fed into the feedport of OVM in batches, the screw of the mixer take the materials to the top of the hopper and spray them to all directions. In this way, different materials are mixed evenly. Then you can open the outlet of the machine to discharge the mixed material manually. And the materials can be loaded for production by the OAL-S vacuum auto loaders or by hand.
