Product Details:
|
| Application: | Drying Of Hygroscopic Plastic Material | Material: | Stainless Steel |
|---|---|---|---|
| Color: | Green And White | Function: | Drying Of PET PA TPU |
| Name: | Dehumidifying Drying Machine | Effect: | Moisture Content Lower Than 200ppm |
| After-sales Service Provided: | Overseas Service Center Available | Capacity: | 100kg |
| High Light: | TPU Plastic Dehumidifying Dryer,Resin Plastic Dehumidifying Dryer,Low Dew Point Desiccant Rotor Dehumidifier |
||
Honeycomb Dehumidifier, Desiccant Dehumidifier, Dehumidifying Dryer, Plastic Dryer, Plastic Drying Machinery, Honeycomb Dryer, PET Dryer, PA Dryer, TPU Dryer
OCD – xx/xxxH
① ② ③
① Orste “Three-in-one” Compact Dryer
② Hopper Capacity (L)
③ Dehumidifying Air Quantity (m3/hr)
H: Honeycomb Rotor Type
1. The OCD compact dryers can be equipped with up to four fully insulated drying bins to suit the required total throughput.
2. OCD compact dryers are the most effective way of conditioning hygroscopic plastic granules for processing and removing surface moisture.
3. The use of corrosion resistant stainless steel ensures a long lifetime and avoids contamination of the plastic granules.
4. Transparent window design for filter makes it convenient to monitor the condition of filter.
5. Material-contact surface of hopper is specially made of dust-free mirror-like stainless steel, it is suitable for the production of optical lens or food standard plastic products production.
6. High-density return air filter ensures no contamination to the material in the conveying of materials.
7. For models below OCD-450/200H, air-cooling methods is applied, which ensures low energy-saving and convenient for movement.

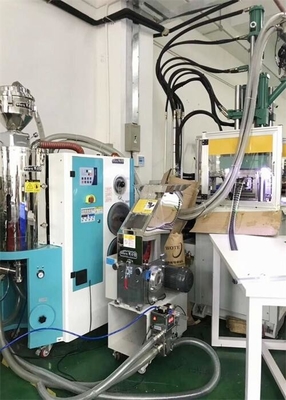

ORSTE “Optical” Dehumidifying Dryers provides the advantages of a consistent dew point and maximum energy efficiency. They combine the function of dehumidifying, drying and two-stage conveying into one compact machine, specified for the production of “optical class” and “food standard” products, such as lens, LGP, disposable lunch box etc. The quality desiccant honeycomb rotor provides continuous and constant low dew-point air which can be lower than -40 oC under ideal conditions.
|
Model OCD- |
20/40H |
40/40H |
80/80H |
120/80H |
160/120H |
230/120H |
300/200H |
450/200H |
600/400H |
750/400H |
|
|
Drying System |
|||||||||||
|
Hopper Capacity (kg) |
12 |
25 |
50 |
75 |
100 |
150 |
200 |
300 |
400 |
500 |
|
|
Drying Heating Power (kw) |
4 |
4 |
4 |
4 |
6 |
6 |
12 |
12 |
18 |
18 |
|
|
Drying Blower Power (kw) |
0.4 |
0.4 |
0.7 |
0.7 |
0.7 |
0.7 |
1.5 |
1.5 |
3.75 |
3.75 |
|
|
Dehumidifying System |
|||||||||||
|
Dehumidifying Air Quantity (m3/hr) |
40 |
40 |
80 |
80 |
120 |
120 |
200 |
200 |
400 |
400 |
|
|
Regenerative Heater Power (kw) |
2.5 |
2.5 |
2.5 |
2.5 |
2.5 |
2.5 |
5.4 |
5.4 |
7.2 |
7.2 |
|
|
Regenerative Blower Power (kw) |
0.2 |
0.2 |
0.2 |
0.2 |
0.2 |
0.2 |
0.4 |
0.4 |
0.75 |
0.75 |
|
|
Feeding System |
|||||||||||
|
Feeding Blower Power(kw) |
0.75 |
0.75 |
1.1 |
1.1 |
1.1 |
1.1 |
1.5 |
1.5 |
2.2 |
2.2 |
|
|
Dia. of Material Pipe (inch) |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
|
|
Dia. of Return Air Pipe (inch) |
2 |
2 |
2 |
2 |
2.5 |
2.5 |
2.5 |
2.5 |
3 |
3 |
|
|
OMH (L) |
7.5 |
7.5 |
7.5 |
7.5 |
7.5 |
12 |
12 |
12 |
12 |
30 |
|
|
OPH (L) |
3 |
3 |
3 |
3 |
3 |
7.5 |
7.5 |
7.5 |
12 |
12 |
|
|
Dimension |
H (mm) |
1490 |
1870 |
2010 |
2100 |
2260 |
2370 |
2370 |
2410 |
2520 |
2570 |
|
W (mm) |
1000 |
1050 |
1180 |
1180 |
1340 |
1340 |
1440 |
1460 |
1645 |
1645 |
|
|
D (mm) |
730 |
730 |
780 |
780 |
810 |
810 |
940 |
940 |
1145 |
1145 |
|
|
Weight (kg) |
280 |
295 |
325 |
340 |
505 |
515 |
570 |
610 |
650 |
700 |
|
The following statements clarify the responsibilities and regulations born by any buyer or user who purchases products and accessories from ORSTE (including employees and agents).
ORSTE is exempted from liability for any costs, fees, claims and losses caused by reasons below:
1. Any careless or man-made installations, operation and maintenances upon machines without referring to the Manual prior to machine using.
2. Any incidents beyond human reasonable controls, which include man-made vicious or deliberate damages or abnormal power, and machine faults caused by irresistible natural disasters including fire, flood, storm and earthquake.
3. Any operational actions that are not authorized by ORSTE upon machine, including adding or replacing accessories, dismantling, delivering or repairing.
4. Employing consumables or oil media that are not appointed by ORSTE.
