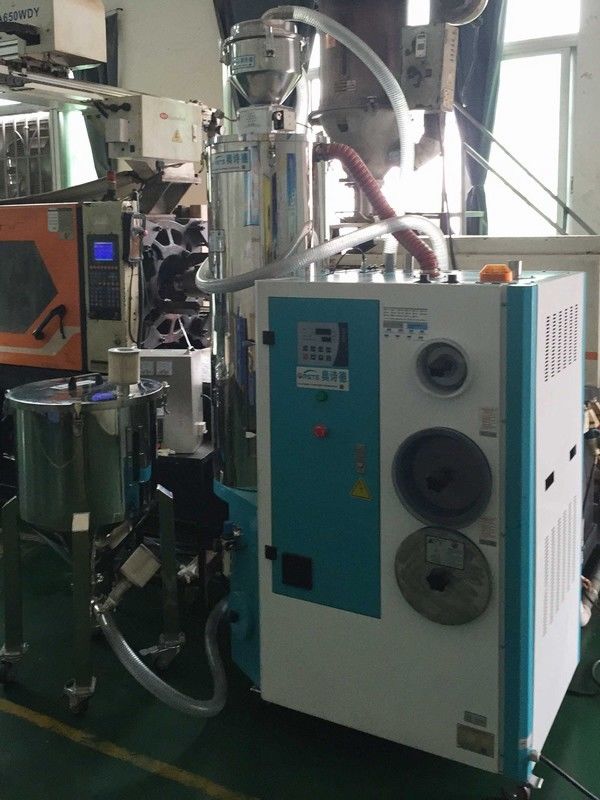

Hot Air Desiccant Plastic Dehumidifying Dryer 3 In 1 OCD-80/80H

Plastic Dryer, Plastic Drying Machine, Plastic Dehumidifier, Dehumidifier, Industrial Dehumidifier, Compact Dryer, Dehumidifying Dryer, Drying Machine

NAMING PRINCIPLE of Desiccant Rotor Dehumidifier

OCD – xx/xxxH

①    ②  ③

①Orste “Three-in-one” Compact Dryer

②Hopper Capacity (L)

③Dehumidifying Air Quantity (m³/hr)

H: Honeycomb Rotor Type

Product Features of Desiccant Rotor Dehumidifier

• The OCD compact dryers can be equipped with up to four fully insulated drying bins to suit the required total throughput.

• OCD compact dryers are the most effective way of conditioning hygroscopic plastic granules for processing and removing surface moisture.

• The use of corrosion resistant stainless steel ensures a long lifetime and avoids contamination of the plastic granules.

• Transparent window design for filter makes it convenient to monitor the condition of filter.

• Material-contact surface of hopper is specially made of dust-free mirror-like stainless steel, it is suitable for the production of optical lens or food standard plastic products production.

• High-density return air filter ensures no contamination to the material in the conveying of materials.

• For models below OCD-400/300H, air-cooling methods is optional, which ensures low energy-saving and convenient for movement.

Application of Desiccant Rotor Dehumidifier

ORSTE “Optical” Dehumidifying Dryers provides the advantages of a consistent dew point and maximum energy efficiency. They combine the function of dehumidifying, drying and two-stage conveying into one compact machine, specified for the production of “optical class” and “food standard” products, such as lens, LGP, disposable lunch box etc. The quality desiccant honeycomb rotor provides continuous and constant low dew-point air which can be lower than -40 ^oC under ideal conditions.

Product Specification / Parameters of Desiccant Rotor Dehumidifier

Machine Details of Desiccant Rotor Dehumidifier

The electric parts of OCD-H are all installed in the electric cabinet in well arrangement. The application of brand power switch, electric contactors, SSR solid state relay, transformers, fuses and other parts ensures the stable and good condition of the whole machine.

The double-layer wall of the hopper dryer with insulation layer ensures good heat preservation for the plastic material drying, it saves much energy due to its good insulating effect. The inner wall of the hopper is polished and suitable for drying optical and food-grade plastic resins. The inspection door is well sealed by the strong fasteners with large screws, there is no possibility for the air leakage for the machine. The good drying effect of the plastic resins are guaranteed.
