Product Details:
|
| Material: | SUS Steel | Application: | Plastic Sprues |
|---|---|---|---|
| Motor: | Slow Speed Type | Capacity: | 20 Kg/H |
| Volume: | Compact Size | Voltage: | 3 Phase / 380 V / 50 Hz As Standard |
| Condition: | Brand New | Warranty: | 24 Months |
| Highlight: | Low Speed Grinder Crusher Granulator,Industrial Grinder Crusher Granulator |
||
OG-LS Low-speed Granulator Granulating Machine.pdf...
1. For OG- series granulators, teeth cutter and cutting blades are integrally fitted in one cutting chamber. Regrinds could be used with virgin materials.
2. Newtype inclined teeth cutter reduces the possibility of stress concentration, enhance bearing capacity and converts force direction so that cutter lifespan can be prolonged.
3. The material collector is located outside the cutting chamber to avoid leakage.
4. Optimum cutting angle makes resistance small and avoid blockage to improve cutting efficiency.
5. Optimal design can effectively reduce vibration during operation of granulator.
6. Cutting chamber is made of mirror finished stainless steel, which is durable and elegant.
7. Low speed granulating ensures well-proportioned granules and low dust level.
8. Low speed and sound-proof material hopper brings a quiet operation environment.
9. Easy access to maintenance and cleaning.

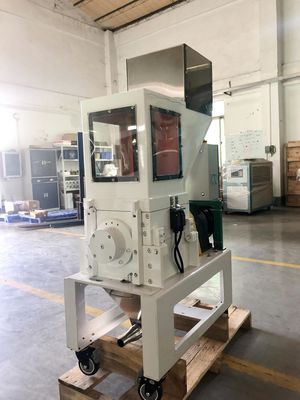

10. Small in size with castors for easy moving.

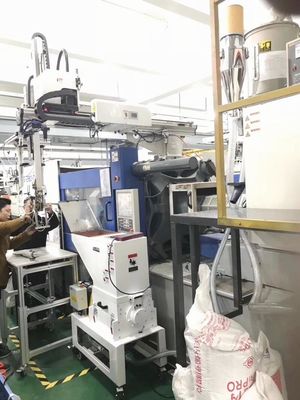

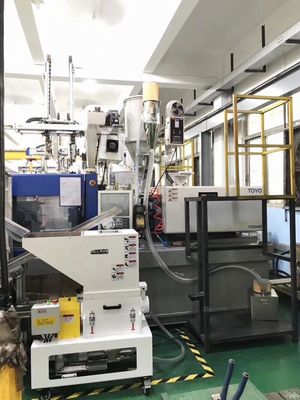

OG series granulators are applied to granulate sprues or few defects. They are always collocated with robots or belt conveyors beside the injection moulding machine. They feature low speed, big driving torque, low noise, few dust and easy operation.
| Model | Motor Power | Hopper Size (mm) | Qty. of Staggered Cutter | Qty. of Teeth Cutter | Rotating Speed (rpm) | Max. Capacity (kg/hr) | Dimension L*W*H (mm) | Weight (kg) | |
| kw | hp | ||||||||
| OG-1217-1LS | 0.75 | 1 | 230*165 | 1 | 2 | 27~35 | 15 | 540*320*880 | 165 |
| OG-2326-2LS | 1.5 | 2 | 230*255 | 2 | 3 | 27~35 | 20 | 540*400*900 | 200 |
| OG-2626-3LS | 2.2 | 3 | 260*261 | 2 | 3 | 27~35 | 20 | 540*400*900 | 220 |
| OG-2636-3LS | 2.2 | 3 | 260*360 | 3 | 4 | 27~35 | 25 | 610*500*920 | 250 |
| OG-2636-5LS | 3.75 | 5 | 260*360 | 3 | 4 | 27~35 | 25 | 610*500*920 | 270 |
| OG-3136-5LS | 3.75 | 5 | 310*360 | 3 | 4 | 27~35 | 30 | 610*500*920 | 300 |
With many years of experience and accumulation in scientific researching and designing of our five series products: Dehumidifying and Drying, Feeding and Conveying, Dosing and Mixing, Heating and Cooling, Granulating and Recycling, and upholding the principle of “Focusing on Product Details, Pursuing Excellent Quality”, “Perfect Product Comes From Endless Innovation”.
ORSTE spares no efforts to innovate its technology while improving product quality, and now it is an industry leader with its mature technology, professional research and development ability, quick marketing capability and qualified site construction team in peripheral equipment of plastic molding.
ORSTE’s large scale Central Material Conveying System and cooling water circulation system including three major systems of centralized raw material drying, water temperature control and metering & mixing, are extensively applied in plastic injection molding industry.
The main products of the company are a series of high-tech products including Desiccant Honeycomb Dehumidifiers, Hopper Dryers, “Three-in-one” Compact Dryers, Auto / Semi-auto Weighing & Packing Machine (for plastic 25kg packages), Auto-loaders, Mold Temperature Controllers, Industrial Chillers, Mixers and Blenders, Masterbatch Dosers, Granulators, and Vibrating Screens.
