Product Details:
|
| Name: | Industrial Plastic Pellet Hopper Dryer In China | Function: | Dehumdifying Drying And Loading |
|---|---|---|---|
| Application: | Plastic Connectors Production | Color: | Customized |
| Structure: | Compact | Condition: | New |
| Warranty: | 12 Months | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| High Light: | PLA Plastic Material Hopper Loader,Energy Saving Plastic Material Hopper Loader,Good Drying Honeycomb Dehumidifier Dryer |
||
OCD – xx/xxxH
① ② ③
① Orste “Three-in-one” Compact Dryer
② Hopper Capacity (L)
③ Dehumidifying Air Quantity (m3/hr)
H: Honeycomb Rotor Type
1. The OCD compact dryers can be equipped with up to four fully insulated drying bins to suit the required total throughput.
2. OCD compact dryers are the most effective way of conditioning hygroscopic plastic granules for processing and removing surface moisture.
3. The use of corrosion resistant stainless steel ensures a long lifetime and avoids contamination of the plastic granules.
4. Transparent window design for filter makes it convenient to monitor the condition of filter.
5. Material-contact surface of hopper is specially made of dust-free mirror-like stainless steel, it is suitable for the production of optical lens or food standard plastic products production.
6. High-density return air filter ensures no contamination to the material in the conveying of materials.
7. For models below OCD-160/120H, air-cooling methods is applied, which ensures low energy-saving and convenient for movement.

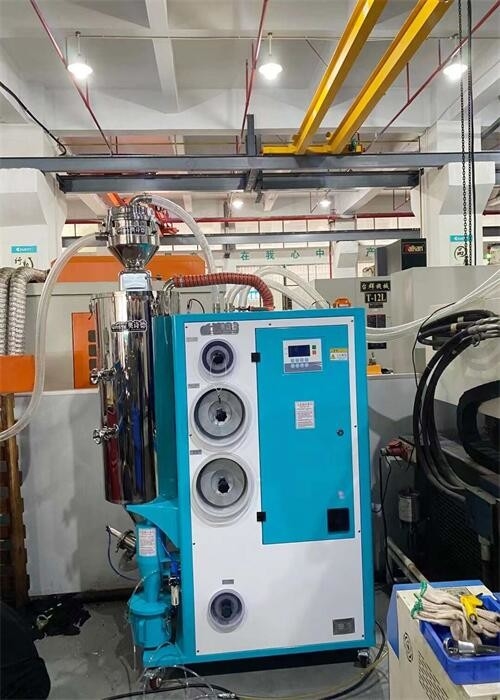

ORSTE “Optical” Dehumidifying Dryers provides the advantages of a consistent dew point and maximum energy efficiency. They combine the function of dehumidifying, drying and two-stage conveying into one compact machine, specified for the production of “optical class” and “food standard” products, such as lens, LGP, disposable lunch box etc. The quality desiccant honeycomb rotor provides continuous and constant low dew-point air which can be lower than -40 oC under ideal conditions.
|
Model OCD- |
20/40H |
40/40H |
80/80H |
120/80H |
160/120H |
230/120H |
300/200H |
450/200H |
600/400H |
750/400H |
|
|
Drying System |
|||||||||||
|
Hopper Capacity (kg) |
12 |
25 |
50 |
75 |
100 |
150 |
200 |
300 |
400 |
500 |
|
|
Drying Heating Power (kw) |
4 |
4 |
4 |
4 |
6 |
6 |
12 |
12 |
18 |
18 |
|
|
Drying Blower Power (kw) |
0.4 |
0.4 |
0.7 |
0.7 |
0.7 |
0.7 |
1.5 |
1.5 |
3.75 |
3.75 |
|
|
Dehumidifying System |
|||||||||||
|
Dehumidifying Air Quantity (m3/hr) |
40 |
40 |
80 |
80 |
120 |
120 |
200 |
200 |
400 |
400 |
|
|
Regenerative Heater Power (kw) |
2.5 |
2.5 |
2.5 |
2.5 |
2.5 |
2.5 |
5.4 |
5.4 |
7.2 |
7.2 |
|
|
Regenerative Blower Power (kw) |
0.2 |
0.2 |
0.2 |
0.2 |
0.2 |
0.2 |
0.4 |
0.4 |
0.75 |
0.75 |
|
|
Feeding System |
|||||||||||
|
Feeding Blower Power(kw) |
0.75 |
0.75 |
1.1 |
1.1 |
1.1 |
1.1 |
1.5 |
1.5 |
2.2 |
2.2 |
|
|
Dia. of Material Pipe (inch) |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
|
|
Dia. of Return Air Pipe (inch) |
2 |
2 |
2 |
2 |
2.5 |
2.5 |
2.5 |
2.5 |
3 |
3 |
|
|
OMH (L) |
7.5 |
7.5 |
7.5 |
7.5 |
7.5 |
12 |
12 |
12 |
12 |
30 |
|
|
OPH (L) |
3 |
3 |
3 |
3 |
3 |
7.5 |
7.5 |
7.5 |
12 |
12 |
|
|
Dimension |
H (mm) |
1490 |
1870 |
2010 |
2100 |
2260 |
2370 |
2370 |
2410 |
2520 |
2570 |
|
W (mm) |
1000 |
1050 |
1180 |
1180 |
1340 |
1340 |
1440 |
1460 |
1645 |
1645 |
|
|
D (mm) |
730 |
730 |
780 |
780 |
810 |
810 |
940 |
940 |
1145 |
1145 |
|
|
Weight (kg) |
280 |
295 |
325 |
340 |
505 |
515 |
570 |
610 |
650 |
700 |
|
The interior of OCD-H is well arranged in its design, every part is fixed in its place stably and can be easily to replace if some parts broke and need to be repaired. It is human friendly for the future maintenance and operating. The 3 blowers are tightly installed at the bottom plate of the machine with suitable space among them, the chiller with good heat exchange effect is placed next to the rear side of the machine.
The air cut-off device is installed at the top of the machine with outlets extends to the outer of the plate for convenient connection to the vacuum air pipes. The device use high quality silicone gel for the sealing, it features good sealing effect and long life span.
The OCD-H series are suitable for drying hygroscopic plastic resins, like PET, TPU, PA, PETG, PLA, PEEK and other mild hygroscopic resins. It is of great importance for producing good-quality products.
Please feel free to contact us to more details.
