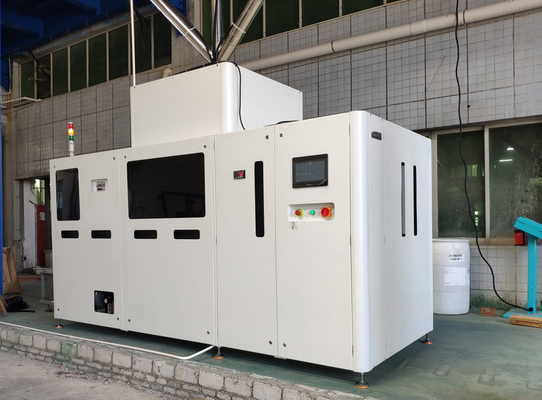

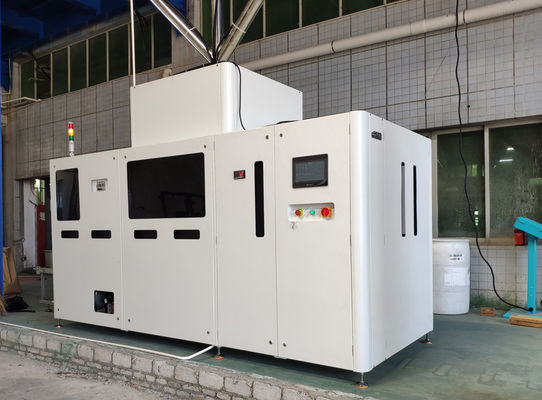

Plastic TPU PVC ABS Weighing Pellet Packing Machine White Color For 25kg Bag

Fully-automatic Intelligent Packing Machine, Auto Bag-picking, bag-opening, weighing, discharging and hot-melting, connecting to auto stacking system.

Features of Weighing & Packing Machine

1. Fully-automatic running of the whole system can greatly lower the labor cost.

There is only one step for manual operation, that is to put the material containing bag in good condition in the bag place, touch screen interactive operation is easy and convenient for operator, 1 staff can operate more production lines, saves much labor.

2. Intelligent identification and auto-regulation

OIM-V3 is equipped with adaptive algorithms of independent research & design, it can be compatible to different type of materials, there is no worries of calibration for material changing.

3. High-precision

Adopting corrugated pipe weighing sensor and Y-type independent weighing system with independent R&D, features stable structure, high-efficiency filtration with precision of ±10g.

4. Flexible for connecting with other equipment

One auto packing machine can equipped with several production lines, the customer can choose vacuum pump or normal air exhausting function, hot-melting or stitches closing of bags, manual or auto stacking, auto film winding and other suitable equipment.

Features of Software of Weighing & Packing Machine

1. Human-computer interaction control method with simple and clean operating screen.

2. Integrated control of several production line. Auto-choosing by one-click, production line interlocking and etc.

3. Residual material cleaning function. The operator can choose auto residual material cleaning when the machine alarms material shortage.

4. Timing reminding function. Can set auto reminding after N (1-24) hours to start running.

5. Quantity auto counting function. Can set auto stop of the machine after N (1-10000) bags of material in the system.

6. Weighing abnormality alarm. The machine will sound alarm to check whether material shortage or bridging occurs when the weighing process didn’t finish with N seconds.

7. Alarm for weight value error. The machine will sound alarm when the error value exceeds the set value.

8. Bag-opening alarm. The machine will suspend to prevent material spilling when the bag-opening sensor sounds alarm.

9. Machine error self-inspection. The machine will alarm when the sensors information is incorrect.

Applications of Weighing & Packing Machine

Fully-auto packing machine + human assistance stacking system

1. Application of 1 - to - 2 packing and human assistance stacking system.

2. Only 1 operator for 2 packing machine and human assistance stacking system.

3. Total output (4 production lines) is 3 T/H, 750 Kg/H for each line.

4. Weighing & packing precision: Plastic pellet, 25KG±10g.

Fully-auto packing machine + Manual stacking system

1. Application of 1 - to - 3 packing and manual stacking system (auto stacking system is optional)

2. Only 1 operator for 3 production lines, packing and manual stacking system

3. Total output is 3 T/H.

4. Weighing & packing precision: Plastic pellet, 25KG±10g.

Parameters of Weighing & Packing Machine

Exemption Clause

The following statements clarify the responsibilities and regulations born by any buyer or user who purchases products and accessories from ORSTE (including employees and agents).

ORSTE is exempted from liability for any costs, fees, claims and losses caused by reasons below:

1. Any careless or man-made installations, operation and maintenances upon machines without referring to the Manual prior to machine using.

2. Any incidents beyond human reasonable controls, which include man-made vicious or deliberate damages or abnormal power, and machine faults caused by irresistible natural disasters including fire, flood, storm and earthquake.

3. Any operational actions that are not authorized by ORSTE upon machine, including adding or replacing accessories, dismantling, delivering or repairing.

4. Employing consumables or oil media that are not appointed by ORSTE.

Note of Maintenance

1) Turn off the main switch and control switch and unplug the cord from power supply before service and maintenance.

2) Be sure not to modify electrical wiring or reassemble the electrical components inside of the control box.

3) Always refer to the electrical diagram of this manual to check and maintain the electrical wiring problems.

4) Service and maintenance of the electrical parts should only be carried out by qualified electricians.
