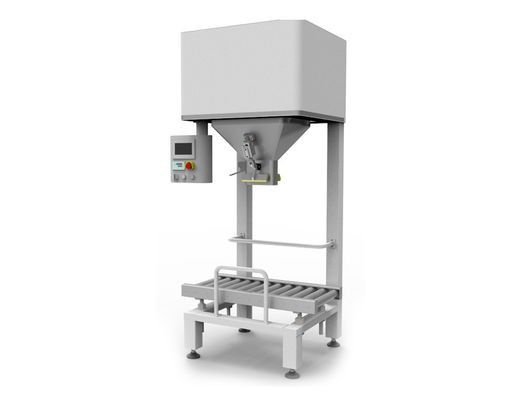

PLC Control Stacking Weighing Packaging Machine Semi Auto For Plastic Pellet

PLC Control Stacking Weighing Packaging Machine Semi Auto For Plastic Pellet
PLC Control Stacking Weighing Packaging Machine Semi Auto For Plastic Pellet
PLC Control Stacking Weighing Packaging Machine Semi Auto For Plastic Pellet PLC Control Stacking Weighing Packaging Machine Semi Auto For Plastic Pellet PLC Control Stacking Weighing Packaging Machine Semi Auto For Plastic Pellet PLC Control Stacking Weighing Packaging Machine Semi Auto For Plastic Pellet PLC Control Stacking Weighing Packaging Machine Semi Auto For Plastic Pellet

Large Image :  PLC Control Stacking Weighing Packaging Machine Semi Auto For Plastic Pellet

Product Details:
Place of Origin: Dongguan, China
Brand Name: ORSTE
Certification: CE, ISO, SGS
Model Number: OWP-S
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set / Order
Price: USD 12000 /  SET
Packaging Details: Standard Export Packing
Delivery Time: 7-15 days
Payment Terms: TT, LC, Paypal, West Union, Cash
Supply Ability: 500-3000 Sets / Year

PLC Control Stacking Weighing Packaging Machine Semi Auto For Plastic Pellet

Description
Material: SUS Steel Application: Pellet Weighing Packing
Color: Can Be Customized Options: Robots, Sealing Machine
Warranty: 12 Months Condition: New
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Overseas Third-party Support Available,Overseas Service Center Available Capacity: 3 T/H Max.
Highlight:

Stacking Weighing Packaging Machine

,

Plastic Pellet Weighing Packaging Machine

PLC Control Stacking Weighing Packaging Machine Semi Auto For Plastic Pellet



Intelligent Weighing Packing Machine



The material discharge valve is installed next to the material discharge outlet, the machine starts auto-weighing when the bag is successfully placed and starts the switch, the discharge valve opens automatically, the material weight is synchronously transferred to to the PLC controller by the weighing sensor, the controller calculates the opening angle of the material discharge valve, closing time and other parameters,then the setting valve is achieved. The PLC control will renew the control parameters after each bag of material is finished packing. The more bags of material is finished, the faster the weighing and packing speed is.



Notes: Once re-start, the system will default that the new material is going to be weighed and packed, it will auto identify the property of the material and the weighing speed will go from slow to fast.



Parameter:



Interactive Mode PLC + touch screen input Weighing Precision ±0.02%(25KG±5g)
Control Valve Stepping Motor Control Packing Capacity 4T/H (Subject to the material)
Weighing Algorithm Optimization Iteration Method Voltage 220V
Weighing Target 5-40 KG (Adjustable) Total Power

<1.0KW



Features:



1. It saves much labor cost by auto loading, auto weighing & packing of the materials.

2. More precise than traditional weighing method, and achieves the accuracy of 25KG±5g.

3. Large weighing & packing capacity, the maximum capacity can be up to 4 T / H.

4. Intelligent identification of materials, can be compatible to all pellets, like PP, PC, ABS and etc., no need manually correction of the weighing parameters.

5. The material discharge valve is controlled by high-torque stepping motor with high-precision parts, there is no problems like material leakage, material blocking.

6. The machine can auto calculating the total output and warning of over-packing. You can reset and re-start weighing and packing after the setting value.

7. Touch screen input makes it is easy to operate.

8. Inspection & cleaning window ensures easy cleaning when changing materials.

9. The machine height, ON/ OFF button are designed based on ergonomics, comfortable for operating.

10. Optional for vacuum pump, hot melting, stitches and auto piling line.

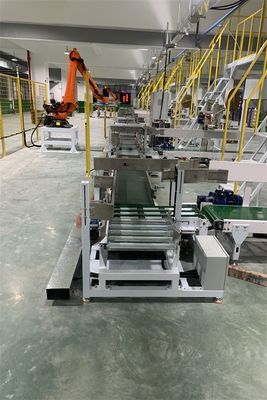

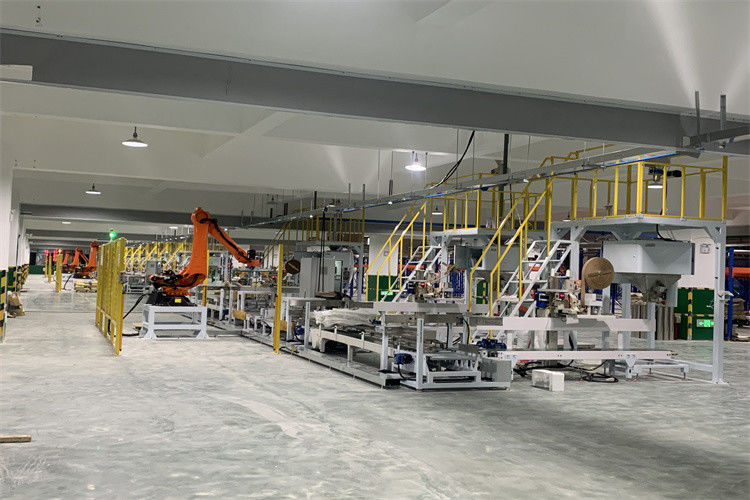

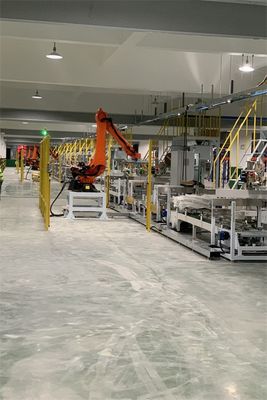

Application Cases:



PLC Control Stacking Weighing Packaging Machine Semi Auto For Plastic Pellet 0PLC Control Stacking Weighing Packaging Machine Semi Auto For Plastic Pellet 1
