Product Details:
|
Application: | Plastic Pellet Weighing Packing | Color: | White |
---|---|---|---|
Material: | SUS Steel | Control: | PLC Control |
Screen: | Touch Screen | System: | Mitsubishi |
After-sales Service: | 12 Months | Delivery: | 30 Days |
Highlight: | Intelligent Pellet Packing Machine,Stacking Pellet Packing Machine,Intelligent Auto Weighing Packing Machine |

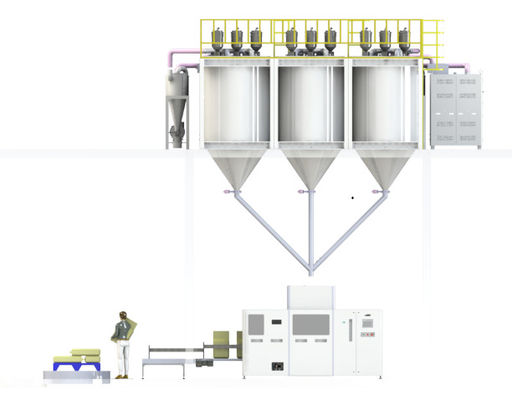

Intelligent Auto Plastic Pellet Packing Machine Weighing Stacking For 25kg Bag
Fully-automatic Intelligent Packing Machine, Auto Bag-picking, bag-opening, weighing, discharging and hot-melting, connecting to auto stacking system.
Features:
1. Fully-automatic running of the whole system can greatly lower the labor cost.
There is only one step for manual operation, that is to put the material containing bag in good condition in the bag place, touch screen interactive operation is easy and convenient for operator, 1 staff can operate more production lines, saves much labor.
2. Intelligent identification and auto-regulation
OIM-V3 is equipped with adaptive algorithms of independent research & design, it can be compatible to different type of materials, there is no worries of calibration for material changing.
3. High-precision
Adopting corrugated pipe weighing sensor and Y-type independent weighing system with independent R&D, features stable structure, high-efficiency filtration with precision of ±10g.
4. Flexible for connecting with other equipment
One auto packing machine can equipped with several production lines, the customer can choose vacuum pump or normal air exhausting function, hot-melting or stitches closing of bags, manual or auto stacking, auto film winding and other suitable equipment.
Features of Software
1. Human-computer interaction control method with simple and clean operating screen.
2. Integrated control of several production line. Auto-choosing by one-click, production line interlocking and etc.
3. Residual material cleaning function. The operator can choose auto residual material cleaning when the machine alarms material shortage.
4. Timing reminding function. Can set auto reminding after N (1-24) hours to start running.
5. Quantity auto counting function. Can set auto stop of the machine after N (1-10000) bags of material in the system.
6. Weighing abnormality alarm. The machine will sound alarm to check whether material shortage or bridging occurs when the weighing process didn’t finish with N seconds.
7. Alarm for weight value error. The machine will sound alarm when the error value exceeds the set value.
8. Bag-opening alarm. The machine will suspend to prevent material spilling when the bag-opening sensor sounds alarm.
9. Machine error self-inspection. The machine will alarm when the sensors information is incorrect.
Applications:
Fully-auto packing machine + human assistance stacking system
1. Application of 1 - to - 2 packing and human assistance stacking system.
2. Only 1 operator for 2 packing machine and human assistance stacking system.
3. Total output (4 production lines) is 3 T/H, 750 Kg/H for each line.
4. Weighing & packing precision: Plastic pellet, 25KG±10g.
Fully-auto packing machine + Manual stacking system
1. Application of 1 - to - 3 packing and manual stacking system (auto stacking system is optional)
2. Only 1 operator for 3 production lines, packing and manual stacking system
3. Total output is 3 T/H.
4. Weighing & packing precision: Plastic pellet, 25KG±10g.
Parameters
Packing Bag Type | Single or Double Layer Open Bag | Weighing Precision | ±0.02% 25KG±10g |
Material Form | Pellet or Recycled Material | Packing Capacity | >3T/H |
Air-exhausting Method | Mechanical Air-exhausting | Voltage | 220 |
Sealing Method | Compressed Air | 0.6 Mpa | |
Weighing Target | 5-40 KG (Adjustable) | Total Power | 2 Kw |
Company Profile
DONGGUAN ORSTE MACHINERY EQUIPMENT CO., LTD. was established in 2007 in “Made in China” City--Dongguan. After many years of growth and development, ORSTE has become a technology-driven and innovative joint-stock enterprise with independent design and development ability, integrating technical development, product design, manufacturing, sales and maintenance, market development.
ORSTE now owns one manufacturing factory and many sales agent service centers in Southern, Northern, Eastern and Southwest part of China. With a foothold set in Southern China, we are serving global markets. ORSTE devotes itself to improving the product quality and working environment, optimizing production flow of plastic processing and upgrading processing technic with environmental protection and energy saving design for plastic factories by supplying integral automation systems to them.
Company Products Advantages
With many years of experience and accumulation in scientific researching and designing of our five series products: Dehumidifying and Drying, Feeding and Conveying, Dosing and Mixing, Heating and Cooling, Granulating and Recycling, and upholding the principle of “Focusing on Product Details, Pursuing Excellent Quality”, “Perfect Product Comes From Endless Innovation”.
ORSTE spares no efforts to innovate its technology while improving product quality, and now it is an industry leader with its mature technology, professional research and development ability, quick marketing capability and qualified site construction team in peripheral equipment of plastic molding.
