Product Details:
|
| Material: | Stainless Steel | Color: | Customized |
|---|---|---|---|
| Delivery: | 1 Month | Pro. Material: | PP Resin Or Recycled Material |
| Application: | Produce PET PP Packing Blet | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Video Technical Support |
| Voltage: | 380V 50HZ 3Phase(Customized) | Condition: | New |
| High Light: | SGS Plastic Strap Production Line,Extrusion Plastic Strap Production Line,White PP Packing Strap Making Machine |
||

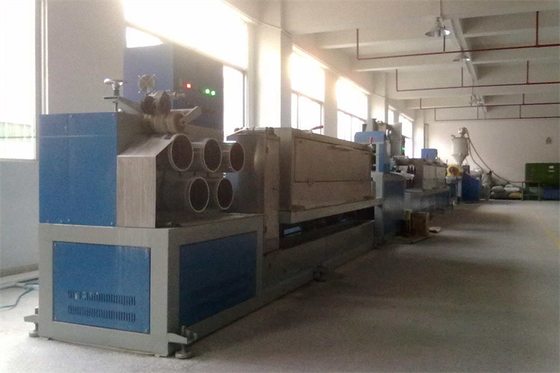

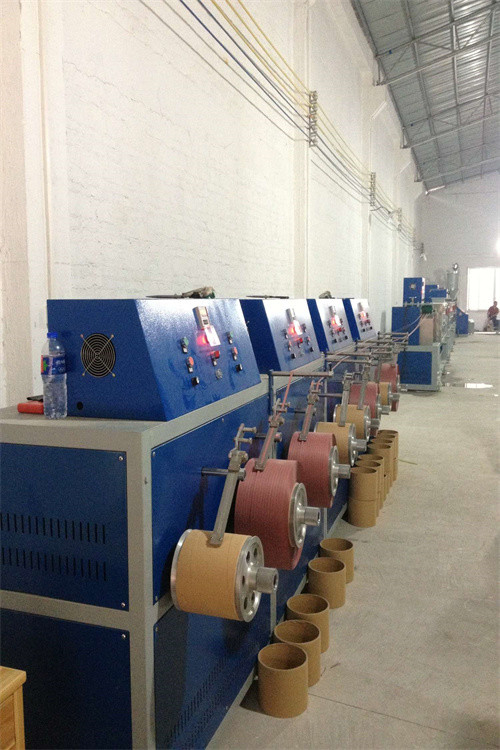

PP Packing Strap Making Machine is specially designed for the production of PP Strapping bands with different width and thickness.
The production line can produce 2 - 8 PP Straps at the same time if choose different extruders models, in this way, the energy consumption is 20-50 % less than traditional strap making machine.
PLC Intelligent Controller by touching keys with Chinese & English language, which is safe and easy to operate that keeps good situation of all part while running, and ensures the stable performance of whole production line and continuous production of PP packing belt without stop.
Extruder → Die Head (Mold) → Self-cleaning melt filter system → Water Cooling Bath → Slow godet → Stretching oven → Printer Machine → Embosser → Stabilisation oven → Stabilisation godet → Winder
| Production Material/ Model | PP-2 | PP-3 | PP-4 | PP-6 | PP-8 | PP-2-2 | PP--2-4 |
| No. of Tapes | 2 | 3 | 4 | 6 | 8 | 4 | 6 |
| Tape Width (mm) | 5-19 | 5-19 | 5-19 | 5-19 | 5-19 | 5-19 | 5-19 |
| Tape Thickness (mm) | 0.4-1.2 | 0.4-1.2 | 0.4-1.2 | 0.4-1.2 | 0.4-1.2 | 0.4-1.2 | 0.4-1.2 |
| Extrusion Capacity (kg/h) | 120 | 180 | 240 | 360 | 480 | 120 | 240 |
| Max. Linear Speed (m/min) | ≧250 | ≧250 | ≧250 | ≧250 | ≧250 | ≧250 | ≧250 |
| Control System | PLC Control | PLC Control | PLC Control | PLC Control | PLC Control | PLC Control | PLC Control |
| Screw Dia.(mm) | 90 | 100 | 110 | 125 | 135 | 90/65 | 110/75 |
| Reducer Model | 200 | 200 | 225 | 250 | 280 | 200/173 | 225/173 |
| Hopper Dryer (kg) | 100 | 100 | 150 | 200 | 250 | 100/100 | 100/150 |
| Screen Changer | Manual / Auto | Manual / Auto | Manual / Auto | Manual / Auto | Manual / Auto | Manual / Auto | Manual / Auto |
| Production Capacity / 24H (T) | 2.8 | 4.3 | 5.7 | 8.6 | 11.5 | 2.8 | 5.7 |
Packing＆Delivery:

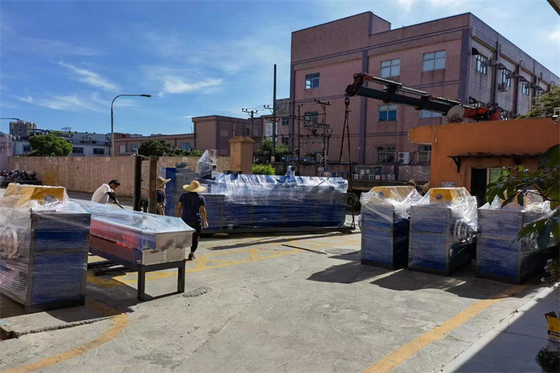

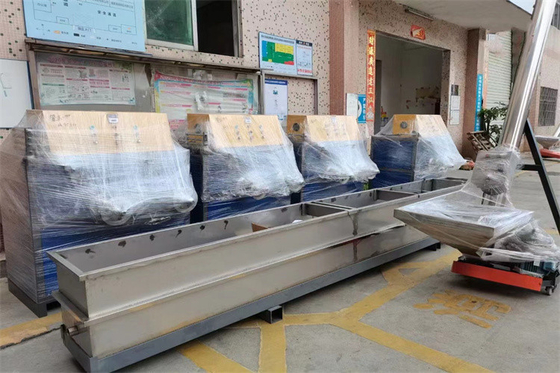

We test the whole production line for at least 24 hours to make sure that the line works smoothly. Our staffs pack the whole set in several stages carefully to keep the machines arrive at the customers’ site safely and completely.
LCL (Less than Container Load): WOOD CASE Packing + Film Wrapped + PET packing best fixed+ Oil Against Rust Process
FCL (Full Container Load) : Film Wrapped + PET packing best fixed + Oil Against Rust Process
PP Packing Strap Production Line
This unit is a special equipment for direct extrusion molding hollow lattice board material, the products surface is bright and clean, good looking, pressure resisted, widely used in construction, packaging and decoration industry in many fields, by changing sizing system can produce LDPE hollow lattice board, also can produce agricultural, building pervious to light insulation PP, PE, PC hollow lattice board.
