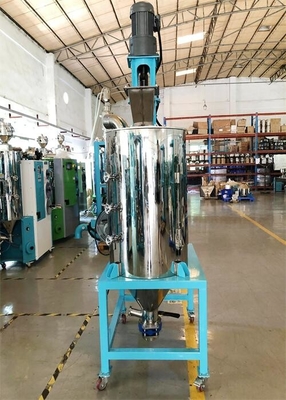

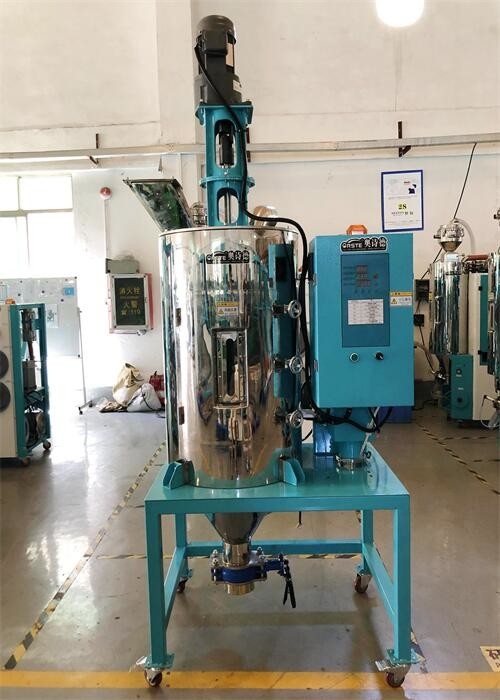

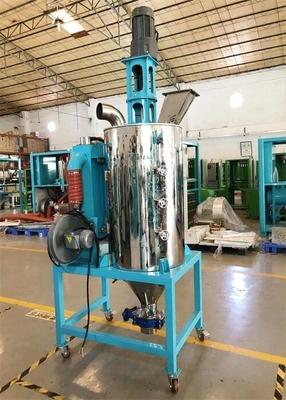

Closed Loop PET Crystallizer Dryer Machine Crystallization Dryer OCR-160 12 Kw

OCR Crystalizer PET Crystallizing Drying Machine.p...

Plastic Crystallizer, Crystallizer, PET Crystallizer, Industrial Crystallizer, Crystallizing Dryer, PET Dryer, Plastic Dryer

“OCR” Orste PET Crystallizers

NAMING PRINCIPLE of Crystallizing Machine

OCR-xxx

① ②

① Orste PET Crystallizer

② Hopper Capacity (L)

FEATURES of Crystallizing Machine

• Simplify and improve drying efficiency.
• Fixed speed of agitator makes materials not lump together during the crystallization.
• Materials can be dried under high temperature to improve drying efficiency.
• Cyclone dust collector is standard equipped, which is applied to dust-rich place. Can effectively reduce the load on filter bag, and reduce the numbers of filter bag cleaning, thus extend the life span of the filter bag.
• With double overheat protector, it can reduce the possibility of either mechanical or man-made problems.
• Equipped with rotary valve with good sealing performance, which can output crystallized material accurately.
• Equipped with material level switch, which can detect material level accurately and make operation reliable.
• Equipped with negative pressure tester to immediately test the ventilation of the filter. Given an alarm when the negative pressure is higher than the setting value, clean the filter to avoid blockage.

APPLICATION of Crystallizing Machine

OCR closed-loop crystallizers are used for constant crystallization of un-crystallized PET regrinds or pellets. Processed materials can then be dried and dehumidified directly. This system mainly consists of heating elements, insulated hopper and agitator screw mixing device. After un-crystallized PET materials fed into the hopper, the system starts crystallization and agitator starts blending to prevent formation in lumps. Crystallized materials can be conveyed to material storage bin or into drying hopper.

FUNCTIONAL SCHEME of Crystallizing Machine

Once material filling starts, heat blower starts up and material heating begins. Control cabinet would stop sending signals to auto loader when material filling amount is higher than material level switch. Then material heating lasts for a while. When temperature sensing needle detects the value of reaching the set crystallized temperature, material would be conveyed out via feeding device; meanwhile, as material level in hopper lowers gradually, filling device starts to supply the uncrystallized material accordingly to realize the continuous crystallization process.

When temperature sensing needle detects the temperature value of stopping material conveying, feeding device halts. If temperature rises again to reach the set crystallized temperature, feeding device will be activated to work so that the continuous crystallization process can be realized through this kind of circle.

PARAMETERS of Crystallizing Machine

We reserve the right to change parameters without prior notice.

Q&A

1. Why do we need a PET Crystallizer?

PET Crystallizer (also called PET crystallizing machine, PET crystallizing drying machine, PET crystallizing dryer) features in its uniquely designed structure. With high-torque motor mounting at the top of the machine, rotating rod with horizontally placed blades, it ensures the evely drying of the sticky un-crystallized PET or other plastic materials. While crystallizing the plastic pellet with hot air, the materials in the drying hopper is lightly stirred and are not possible to be blocked like in normal hopper dryers.

Even for the plastic materials which are not sticky, the application of PET crystallizer is better than normal plastic hopper dryers in the drying effect with less drying time required.

2. Do we need other machines to be used with a PET crystallizer?

Normally a vacuum auto loader (OAL or OAL-S) should be applied with PET crystallizer to convey the plastic material into the crystallizer automacticly, and load the dried material from the crystallizer to the other container or molding machine for production.

Honeycomb Dehumidifiers (ORD-H) are always suggested to be used to provide low dew-point dry air for the PET crystallizer, in this way, less drying and crystallizing time and good drying effect can be achieved.

3. Is the maintenance cost expensive?

ORSTE PET crystallizer features optimized structure and long service life with its good quality parts and excellent processing skills. No special comsumbles are required for the maintenance. Only fuses, electric contactors have to be replaced after 2-3 years running, regular checking for the air pipe, electric cables.

4. How to clean the PET crystallizer when we want to change drying materials?

An compressed air gun is suggested to blow the dust in the inner wall of the drying hopper, a white clean cloth with white oil is always used to wipe the wall after blowing by air gun. We don't suggest to clean the machine by water, especially for the electric parts.

There is not dead angle in the drying hopper and other material contact surface, no need to worry about the material residual.

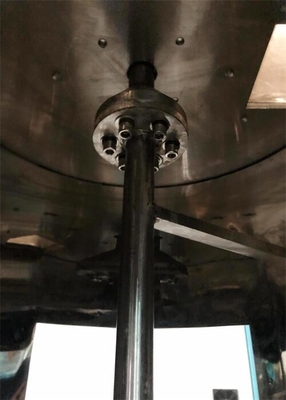

Inner Structure of Crystallizing Machine

Company Profile

With many years of experience and accumulation in scientific researching and designing of our five series products: Dehumidifying and Drying, Feeding and Conveying, Dosing and Mixing, Heating and Cooling, Granulating and Recycling, and upholding the principle of “Focusing on Product Details, Pursuing Excellent Quality”, “Perfect Product Comes From Endless Innovation”.

ORSTE spares no efforts to innovate its technology while improving product quality, and now it is an industry leader with its mature technology, professional research and development ability, quick marketing capability and qualified site construction team in peripheral equipment of plastic molding.

Matters Needing Attention

Electrical installation of the machine should be done by qualified electricians.

Connecting the cooling water (if needed) after the machine is installed in a appointing place, make sure the inlet and outlet water pipe is in good condition.

Before connecting to AC Power Source, turn power switch to OFF position. While AC power source is connected, make sure specifications and overload protection rating of the power switch are suitable and reliable. When the machine is under care or maintenance, turn off both power switch and automatic operation switch.
