Oil Type Plastic Mold Temperature Controller Unit 3 Phase 380V 50Hz

Oil Type Plastic Mold Temperature Controller Unit 3 Phase 380V 50Hz
Oil Type Plastic Mold Temperature Controller Unit 3 Phase 380V 50Hz Oil Type Plastic Mold Temperature Controller Unit 3 Phase 380V 50Hz Oil Type Plastic Mold Temperature Controller Unit 3 Phase 380V 50Hz Oil Type Plastic Mold Temperature Controller Unit 3 Phase 380V 50Hz

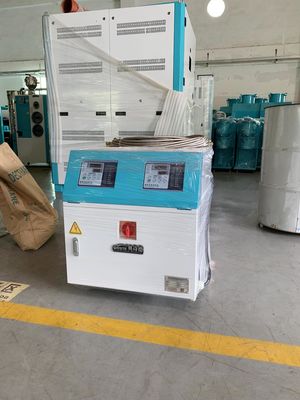

Large Image :  Oil Type Plastic Mold Temperature Controller Unit 3 Phase 380V 50Hz

Product Details:
Place of Origin: Dongguan, China
Brand Name: ORSTE
Certification: CE, ISO, SGS
Model Number: OMT-610-O
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set / Order
Price: 1,200~2,300USD/Set
Packaging Details: Standard Export Packing
Delivery Time: 7-15 days
Payment Terms: TT, LC, Paypal, West Union, Cash
Supply Ability: 500-3000 Sets / Year
Minimum Order Quantity: 1 Set

Oil Type Plastic Mold Temperature Controller Unit 3 Phase 380V 50Hz

Description
Material: SUS Steel Heating Method: Heating With Oil
Function: For Mold Temperature Heating Application: Plastic Injection Or Extrusion
Condition: Brand New Voltage: 3 Phase 380V 50Hz
Waranty: 12 Months Origin: China
Highlight:

Oil Type Plastic Mold Temperature Controller

,

380V Plastic Mold Temperature Controller

,

50Hz Oil Temperature Control Unit

Oil Type Plastic Mold Temperature Controller Unit 3 Phase 380V 50Hz

OMT-O Mold Temperature Controller Heater.pdf



NAMING PRINCIPLE of Mould Temperature Control



OMT – xxxx – xx



①     ②    ③

①  Orste Mold Temperature Controller

②  First Two Numbers: Heater Power (kw)

    Last Two Numbers: Pump Power (*10-1HP)

③  Notes

HTO:Medium is Oil with High temperature      D: Dual-heating Zones



Product Features of Mould Temperature Control



  • Equipped with the design of one week automatic start/stop timer, screen can be converted between Chinese and English. The unit of temperature can be converted between oF and oC.
  • P. I. D. multi-stage temperature control system can maintain a mold temperature with an accuracy of ±0.5oC.
  • Adopts high efficiency water cycle pump, which can meet the demands of temperature control for precise molds and mold loop with minor diameter to achieve precise temperature control and high efficiency heat exchange. Pump inside adopts stainless steel to avoid explosion.
  • Multiple safety devices including power reverse phase protection, pump overload protection, overheat protection and low level protection that can automatically detect abnormal performance and indicate this via visible alarm.
  • For standard OMT-W, the heating temperature can reach 200oC, while for OMT-HT, it can reach 300oC.
  • Equipped with high pressure protection, safety pressure relieving, automatic water supplying and air exhausting.
  • Adopts indirect cooling makes temperature control more precise and make heat exchange faster.



Application of Mould Temperature Control



OMT-O series water heaters are widely used in the production of plastic product. They are mainly applied to heat upthe mold and maintain temperature, also they can be used in other similar fields. Through the indirect cooling, the high temp. oil returned from the mold is cooled and then pressured and sent to the mold after being heated to achieve to meet the requirement of heat and maintaining temperature. They can shorten the product mold cycle and improve production efficiency.



FUNCTIONAL SCHEME of Mould Temperature Control



The high temp. oil returns to the machine and then be pressured by pump to the heaters. After being heated, oil will be forced to the mold and continue the circle. In the process, if the oil temperature is too high, system will activate the solenoid valve to let cooling water cool down high temperature oil indirectly until the temperature is down to the system requirement. If the temperature keeps increasing and reaches to the set point of EGO, the system will sound alarm and stop operation. The system will have low level alarm and stop working if oil level falls down below the set point.



PARAMETERS of Mould Temperature Control



Model

Max Temp. (℃)

Pipe Heater (kw)

Pump Power (kw)

Max. Pump Flow (L/Min)

Max. Pump Pressure (bar)

Heating Tank Number

Cooling Method

Cooling Water Pipe (inch)

Circulating Water pipe (inch)

Dimensions (H*W*D) (mm)


Weight (kg)

OMT-605-O

200

6

0.375

42

2.5

1

Indirect Cooling

1/2"



3/8"



730*300*660

36

OMT-605-OD

200

6*2

0.375*2

42*2

2

980*390*860

72

OMT-910-O

200

9

0.75

56

1

730*300*660

36

OMT-910-OD

200

6*2

0.75*2

56*2

2

980*390*860

72

OMT-1220-O

200

12

1.5

235

1

980*390*860

68

OMT-2430-O

200

24

2.2

315

2

980*390*860

75

OMT-3650-O

200

36

3.75

495

3

980*390*860

83

OMT-1220-HTO

300

12

1.5

230



1

980*390*860

72

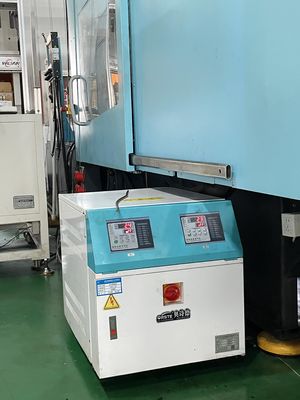

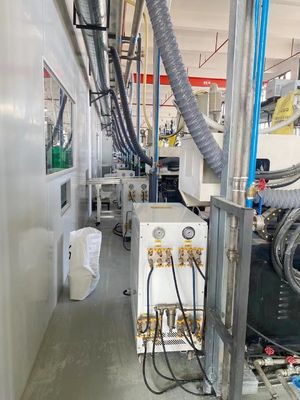

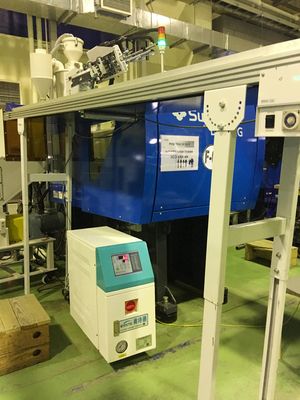

Applicaiton Cases of Mould Temperature Control



Oil Type Plastic Mold Temperature Controller Unit 3 Phase 380V 50Hz 0Oil Type Plastic Mold Temperature Controller Unit 3 Phase 380V 50Hz 1



Company Profile



DONGGUAN ORSTE MACHINERY EQUIPMENT CO., LTD. was established in 2007 in “Made in China” City--Dongguan. After many years of growth and development, ORSTE has become a technology-driven and innovative joint-stock enterprise with independent design and development ability, integrating technical development, product design, manufacturing, sales and maintenance, market development.



ORSTE now owns one manufacturing factory and many sales agent service centers in Southern, Northern, Eastern and Southwest part of China. With a foothold set in Southern China, we are serving global markets. ORSTE devotes itself to improving the product quality and working environment, optimizing production flow of plastic processing and upgrading processing technic with environmental protection and energy saving design for plastic factories by supplying integral automation systems to them.



Exemption Clause



The following statements clarify the responsibilities and regulations born by any buyer or user who purchases products and accessories from ORSTE (including employees and agents).

ORSTE is exempted from liability for any costs, fees, claims and losses caused by reasons below:

1. Any careless or man-made installations, operation and maintenances upon machines without referring to the Manual prior to machine using.

2. Any incidents beyond human reasonable controls, which include man-made vicious or deliberate damages or abnormal power, and machine faults caused by irresistible natural disasters including fire, flood, storm and earthquake.

3. Any operational actions that are not authorized by ORSTE upon machine, including adding or replacing accessories, dismantling, delivering or repairing.

4. Employing consumables or oil media that are not appointed by ORSTE.


Notes of Maintenance



1) Turn off the main switch and control switch and unplug the cord from power supply before service and maintenance.

2) Be sure not to modify electrical wiring or reassemble the electrical components inside of the control box.

3) Always refer to the electrical diagram of this manual to check and maintain the electrical wiring problems.

4) Service and maintenance of the electrical parts should only be carried out by qualified electricians.
