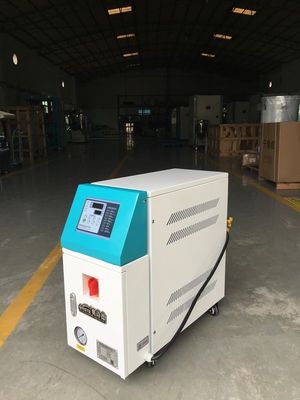

Water Heater Plastic Injection Mold Temperature Controller Unit OMT-910-W

OMT-W Mold Temperature Controller Water Heater.pdf...

Product Features of Mould Temperature Controller

• Equipped with the design of one week automatic start/stop timer, screen can be converted between Chinese and English.
• P. I. D. multi-stage temperature control system can maintain a mold temperature with an accuracy of ±1^oC.
• Adopts high efficiency water cycle pump, which can meet the demands of temperature control for precise molds and mold loop with minor diameter to achieve precise temperature control and high efficiency heat exchange. Pump inside adopts stainless steel to avoid explosion.
• Multiple safety devices including power reverse phase protection, pump overload protection, overheat protection and low level protection that can automatically detect abnormal performance and indicate this via visible alarm.
• For standard OMT-W, the heating temperature can reach 120^oC, while for OMT-HT, it can reach 160^oC.
• Equipped with high pressure protection, safety pressure relieving, automatic water supplying and air exhausting.
• For OMT-W, direct cooling is adopted. Automatic water supplying device ensures fast heat exchange.

Application of Mould Temperature Controller

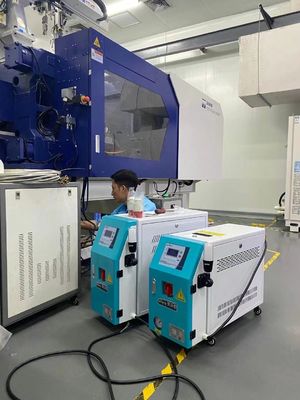

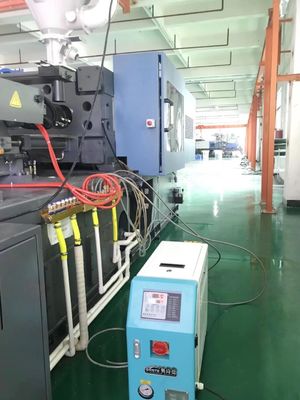

OMT-W series water heaters are widely used in the production of plastic product. They are mainly applied to heat up the mold and maintain temperature, also they can be used in other similar fields. Through the principle of heat exchange, they can shorten the product mold cycle and improve production efficiency.


PARAMETERS of Mould Temperature Controller

Machine Details of Mould Temperature Controller

Reference formula of Mold Controllers model selection

Reference formula of Mold Controllers model selection

Heater Power (kw) = mold weight (kg) * mold specific heat (kcal/kg^oC) * temperature difference between mold and environment (^oC) * safety coefficient/heating duration/860

Notes: safety coefficient range 1.3 - 1.5

Flow Rate (L/min) = heater power (kw) * 860/[heating medium specific (kcal/kg^oC) * heating medium density (kg/L) * in/outlet temperature difference (^oC) * time (60)]

Notes: Water specific heat = 1kcal/kg^oC

Heating medium Water specific heat = 0.49kcal/kg^oC

Water density = 1kg/L

Heating medium Water density = 0.843kg/L

Time for heating = the time needed to heat from room temperature to set temperature
