OOD Oven Dryer Cabinet Dryer.pdf
Plastic Dryer, Plastic Drying Machine, Plastic Equipment, Oven Dryer, Cabinet Dryer; Tray Dryer
OOD - xxx
① ②

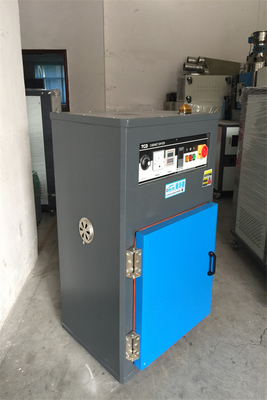

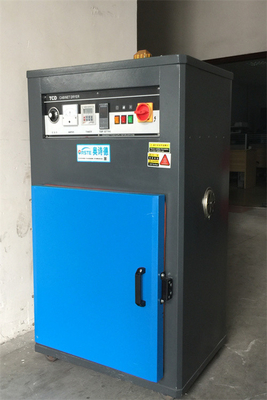

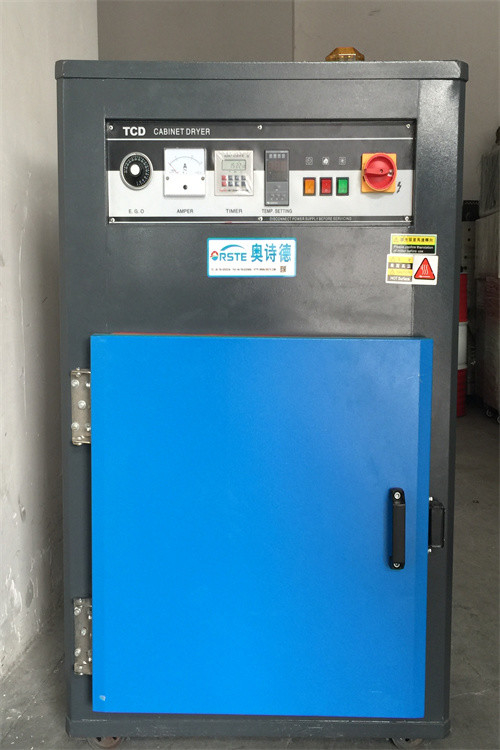

① Orste Oven Dryer
② Quantity of Trays
1. Accurate P.I.D temperature controller to achieve even drying effect.
2. Air-proofed insulated door can effectively avoid heat loss to reduce energy consumption
3. Stainless steel tray and liner bring no contamination to materials. OOD series can dry several materials at the same time, time-saving and efficient.
4. 24 hours timer which is easy to operate to preset the drying time.
5. Multilevel protection measures like overheat protector and alarm light can reduce mechanical and human error accidents.

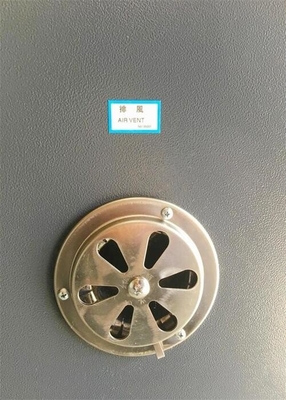

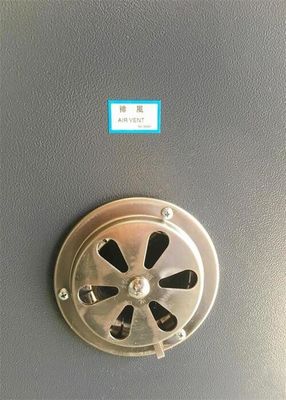

6. Adjustable air inlet and outlet design, air volume can be adjusted according to customer’s actual needs.
OOD series of oven dryers are mostly used for simultaneous drying of different kinds of polymers in small quantities or for drying materials for trial molding. For tempering after plastic molding, it can increase product tenacity and improve product quality. The oven dryer can also be applied in preheating and drying of agricultural and food (grain, garlic, tea, and etc.), electric motor and part, electroplating, pharmaceutical, paint, printing and others.
|
Model
|
OOD-5
|
OOD-9
|
OOD-20
|
|
External dimension
L*W*H (mm)
|
820×630×1260
|
820×630×1480
|
820×1500×1750
|
|
Internal dimension
L*W*H (mm)
|
500×600×600
|
500×600×900
|
500×1150×1200
|
|
Motor Power(kw)
|
0.375
|
0.375
|
1.5
|
|
Heater (kw)
|
4.5
|
6
|
6*2
|
|
No. of Trays
|
5
|
9
|
20
|
|
Tray Dimensions
L*W*H (mm)
|
600×500×50
|
600×500×50
|
600×500×50
|
|
Capacity (kg)
|
50
|
90
|
200
|
|
Material
|
SUS304 stainless steel plate
|
|
Temperature range
|
40oC ～180oC
|
|
Accuracy
|
±5%
|
|
Weight (kg)
|
148
|
178
|
415
|
Company Product Introduction
ORSTE’s large scale Central Material Conveying System and cooling water circulation system including three major systems of centralized raw material drying, water temperature control and metering & mixing, are extensively applied in plastic injection molding industry.
The main products of the company are a series of high-tech products including Desiccant Honeycomb Dehumidifiers, Hopper Dryers, “Three-in-one” Compact Dryers, Auto / Semi-auto Weighing & Packing Machine (for plastic 25kg packages), Auto-loaders, Mold Temperature Controllers, Industrial Chillers, Mixers and Blenders, Masterbatch Dosers, Granulators, and Vibrating Screens.
