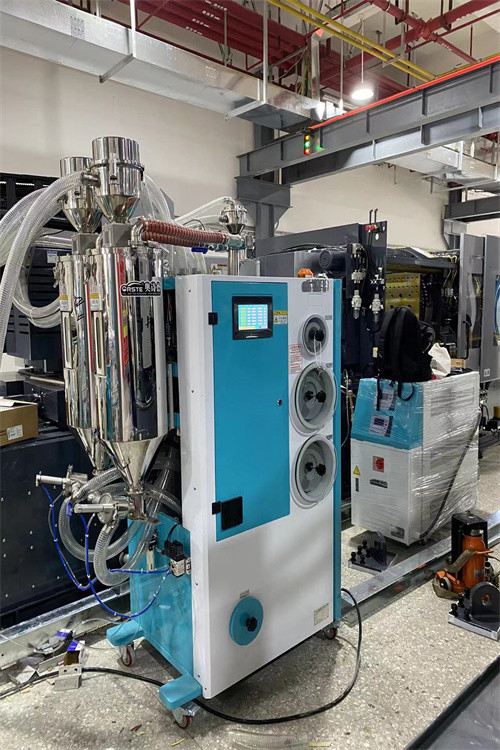

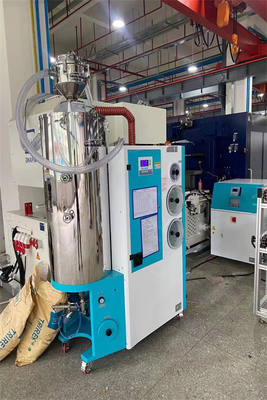

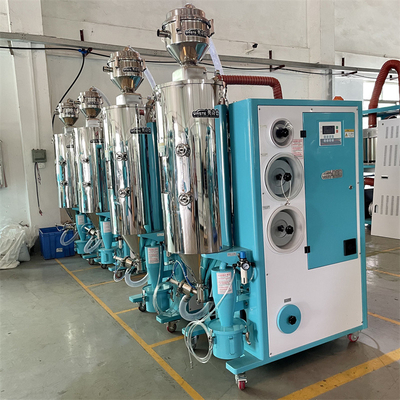

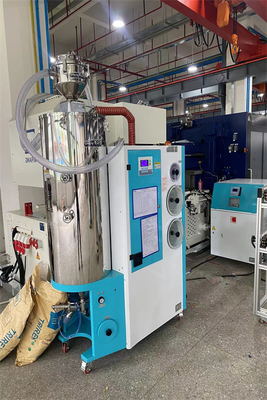

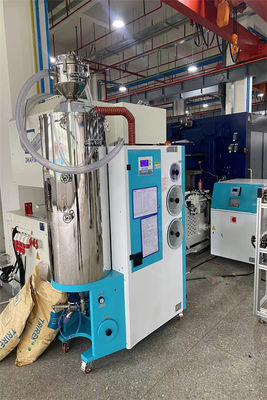

PET PA TPU Plastic Dehumidifying Dryers Hopper Energy Saving Easy Installation

Honeycomb Dehumidifier, Dehumidifying Dryer, Plastic Dryer, Plastic Drying Machinery, Honeycomb Dryer

NAMING PRINCIPLE of Plastic Drying Machine

OCD – xx/xxxH

①    ②  ③

① Orste “Three-in-one” Compact Dryer

② Hopper Capacity (L)

③ Dehumidifying Air Quantity (m³/hr)

H: Honeycomb Rotor Type

Product Features of Plastic Drying Machine

1. The OCD compact dryers can be equipped with up to four fully insulated drying bins to suit the required total throughput.

2. OCD compact dryers are the most effective way of conditioning hygroscopic plastic granules for processing and removing surface moisture.

3. The use of corrosion resistant stainless steel ensures a long lifetime and avoids contamination of the plastic granules.

4. Transparent window design for filter makes it convenient to monitor the condition of filter.

5. Material-contact surface of hopper is specially made of dust-free mirror-like stainless steel, it is suitable for the production of optical lens or food standard plastic products production.

6. High-density return air filter ensures no contamination to the material in the conveying of materials.

7. For models below OCD-450/200H, air-cooling methods is applied, which ensures low energy-saving and convenient for movement.

Application of Plastic Drying Machine

ORSTE “Optical” Dehumidifying Dryers provides the advantages of a consistent dew point and maximum energy efficiency. They combine the function of dehumidifying, drying and two-stage conveying into one compact machine, specified for the production of “optical class” and “food standard” products, such as lens, LGP, disposable lunch box etc. The quality desiccant honeycomb rotor provides continuous and constant low dew-point air which can be lower than -40 ^oC under ideal conditions.

Product Specification / Parameters of Plastic Drying Machine

Machine Details of Plastic Drying Machine

Greenco Blowers are applied for OCD-H compact dehumidifying dryers to ensure stable and constant running of the machine, Greenco blower is one the best blowers in China, it features good quality and long lifespan, which is same as that of ORSTE machines.

Matters Needing Attention

Electrical installation of the machine should be done by qualified electricians.

Connecting the cooling water (if needed) after the machine is installed in a appointing place, make sure the inlet and outlet water pipe is in good condition.

Before connecting to AC Power Source, turn power switch to OFF position. While AC power source is connected, make sure specifications and overload protection rating of the power switch are suitable and reliable. When the machine is under care or maintenance, turn off both power switch and automatic operation switch.

Note of Maintenance

1) Turn off the main switch and control switch and unplug the cord from power supply before service and maintenance.

2) Be sure not to modify electrical wiring or reassemble the electrical components inside of the control box.

3) Always refer to the electrical diagram of this manual to check and maintain the electrical wiring problems.

4) Service and maintenance of the electrical parts should only be carried out by qualified electricians.
