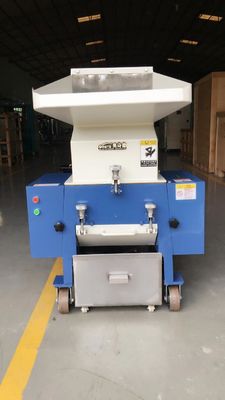

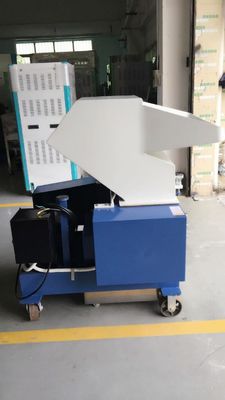

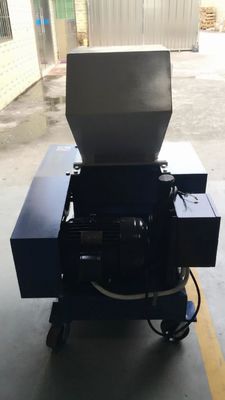

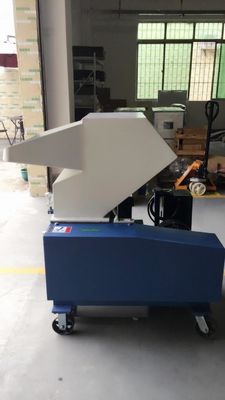

7.5KW Plastic Defects High Speed Granulator Pulverizer Machine OG-10FS Gray Color

OG-FS Fast-speed Central Granulator Granulating Ma...

FEATURES of Plastic Granulating Machine

• Optimized structure and full-closed sound-proofing design ensures low noise level.
• Cutting chamber is made of high rigidity material and processed by CNC machine. It has the features like high intensity, super wearability, no contamination, long service life and easy for maintenance and repairing.
• The cutting chamber structure is “fixed plus rotating blades”, the space of which is large enough to grind thick walled objects and sheet.
• Paddle blades with increased cutting design allows good cutting effect.
• The cutters are made of imported high quality steel featuring wearability, high rigidity and reuse after sharpening.
• Equipped with presetting knife jig, rotating blades can be adjusted in the fixture outside the machine instead of machine inside. It makes blades adjustment much easier.
• Cooling water device at the rear plate of the cutting chamber can effectively cool down the cutting chamber and prevent materials from melting-up.
• Equipped with electrical current relay, motor overload protector and multiple safety devices, to ensure safe operation.
• Optional regrind conveying system to convey materials automatically to greatly improve efficiency.
• Optional dust cyclone separator can effectively remove the air from regrind and facilitates material collecting.

OPTION PARTS of Plastic Granulating Machine

Cyclone dust separator is available as an option and the height of its floor stand can be adjusted to meet different requirements.

Separate blower, belt conveyor, material side feed pipe

APPLICATION of Plastic Granulating Machine

OG-FS series is suitable for centralized recycling of waste and rejected parts form injection, blowing molding and extrusion lines. This series features compact design, easy operation and quick blade replacement. Gradually inclined cutting and integrated power design offers a better cutting effect and a lower noise level, ensures low energy consumption.

OPTIONS of Plastic Granulating Machine

Separate Conveying Blower of Plastic Granulating Machine

The blower stands outside the machine. Without restriction of the inner space in the machine, customer can choose different kinds of blowers.

Belt Conveyor of Plastic Granulating Machine

Material feeding for traditional large granulators is quite a difficult matter. They are generally installed at a lower place or a platform must be built for material feeding. We have particularly designed the belt conveyor to easily convey the material into the cutting chamber of OG-FS sound-proof central granulators.

Material Side Feed Pipe of Plastic Granulating Machine

The design of feeding hopper of traditional granulators is not suitable for longer pipes and section bars. We have specially designed material side feed pipe for convenient feeding of long materials.

PARAMETERS of Plastic Granulating Machine

APPLICATION CASES of Plastic Granulating Machine

Maintenance and Repair of Plastic Granulating Machine

All maintenance should be done by professional personnel, so as to avoid personal injury and machine damage.

1. Check whether the emergency stop button works normally. Period: Daily.

2. Check whether the start/stop button works normally. Period: Daily.

3. Check whether the safety switch works normally. Period: Daily.

4. Check whether the gate circuit breaker works normally. Period: Daily.

5. Check the material defender before starting. Period: Daily.

6. Check whether the screws on the feed box and cutting chamber are tighten before starting. Period: Weekly.

7. Check whether there is metal in the cutting chamber before starting. Period: Daily.

8. Check the whether the front door is locked tight before starting. Period: Daily.

9. Check whether the electrical elements in the electric control box are loose. Period: Monthly.

10. Check the screws on both the fixed and the rotary blades are loose. Period: Weekly.

11. Check the belt tension. Period: Monthly.
