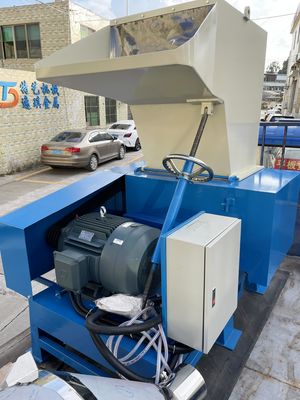

Plastic Central High Speed Granulator Shredder Machine 50 Kg/H - 500 Kg/H Capacity

OG-FS Fast-speed Central Granulator Granulating Ma...

FEATURES of Plastic Shredder Granulator

• Optimized structure and full-closed sound-proofing design ensures low noise level.
• Cutting chamber is made of high rigidity material and processed by CNC machine. It has the features like high intensity, super wearability, no contamination, long service life and easy for maintenance and repairing.
• The cutting chamber structure is “fixed plus rotating blades”, the space of which is large enough to grind thick walled objects and sheet.
• Paddle blades with increased cutting design allows good cutting effect.
• The cutters are made of imported high quality steel featuring wearability, high rigidity and reuse after sharpening.
• Equipped with presetting knife jig, rotating blades can be adjusted in the fixture outside the machine instead of machine inside. It makes blades adjustment much easier.
• Cooling water device at the rear plate of the cutting chamber can effectively cool down the cutting chamber and prevent materials from melting-up.
• Equipped with electrical current relay, motor overload protector and multiple safety devices, to ensure safe operation.
• Optional regrind conveying system to convey materials automatically to greatly improve efficiency.
• Optional dust cyclone separator can effectively remove the air from regrind and facilitates material collecting.

OPTION PARTS of Plastic Shredder Granulator

Cyclone dust separator is available as an option and the height of its floor stand can be adjusted to meet different requirements.

Separate blower, belt conveyor, material side feed pipe

APPLICATION of Plastic Shredder Granulator

OG-FS series is suitable for centralized recycling of waste and rejected parts form injection, blowing molding and extrusion lines. This series features compact design, easy operation and quick blade replacement. Gradually inclined cutting and integrated power design offers a better cutting effect and a lower noise level, ensures low energy consumption.

OPTIONS of Plastic Shredder Granulator

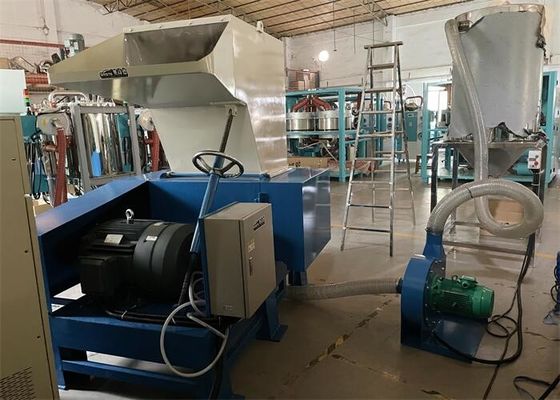

Separate Conveying Blower of Plastic Shredder Granulator

The blower stands outside the machine. Without restriction of the inner space in the machine, customer can choose different kinds of blowers.

Belt Conveyor of Plastic Shredder Granulator

Material feeding for traditional large granulators is quite a difficult matter. They are generally installed at a lower place or a platform must be built for material feeding. We have particularly designed the belt conveyor to easily convey the material into the cutting chamber of OG-FS sound-proof central granulators.

Material Side Feed Pipe of Plastic Shredder Granulator

The design of feeding hopper of traditional granulators is not suitable for longer pipes and section bars. We have specially designed material side feed pipe for convenient feeding of long materials.

PARAMETERS of Plastic Shredder Granulator

Product Details of Plastic Shredder Granulator

Exemption Clause

The following statements clarify the responsibilities and regulations born by any buyer or user who purchases products and accessories from ORSTE (including employees and agents).

ORSTE is exempted from liability for any costs, fees, claims and losses caused by reasons below:

1. Any careless or man-made installations, operation and maintenances upon machines without referring to the Manual prior to machine using.

2. Any incidents beyond human reasonable controls, which include man-made vicious or deliberate damages or abnormal power, and machine faults caused by irresistible natural disasters including fire, flood, storm and earthquake.

3. Any operational actions that are not authorized by ORSTE upon machine, including adding or replacing accessories, dismantling, delivering or repairing.

4. Employing consumables or oil media that are not appointed by ORSTE.

Note of Maintenance

1) Turn off the main switch and control switch and unplug the cord from power supply before service and maintenance.

2) Be sure not to modify electrical wiring or reassemble the electrical components inside of the control box.

3) Always refer to the electrical diagram of this manual to check and maintain the electrical wiring problems.

4) Service and maintenance of the electrical parts should only be carried out by qualified electricians.
