Rotary Industrial Desiccant Dehumidifier Honeycomb Rotor For PA PET TPU PEEK

Rotary Industrial Desiccant Dehumidifier Honeycomb Rotor For PA PET TPU PEEK
Rotary Industrial Desiccant Dehumidifier Honeycomb Rotor For PA PET TPU PEEK
Rotary Industrial Desiccant Dehumidifier Honeycomb Rotor For PA PET TPU PEEK Rotary Industrial Desiccant Dehumidifier Honeycomb Rotor For PA PET TPU PEEK Rotary Industrial Desiccant Dehumidifier Honeycomb Rotor For PA PET TPU PEEK Rotary Industrial Desiccant Dehumidifier Honeycomb Rotor For PA PET TPU PEEK Rotary Industrial Desiccant Dehumidifier Honeycomb Rotor For PA PET TPU PEEK

Large Image :  Rotary Industrial Desiccant Dehumidifier Honeycomb Rotor For PA PET TPU PEEK

Product Details:
Place of Origin: Dongguan, China
Brand Name: ORSTE
Certification: CE, ISO, SGS
Model Number: ORD-2000H
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set / Order
Price: USD 3017 / SET
Packaging Details: Standard Export Packing
Delivery Time: 7-15 days
Payment Terms: TT, LC, Paypal, West Union, Cash
Supply Ability: 500-3000 Sets / Year

Rotary Industrial Desiccant Dehumidifier Honeycomb Rotor For PA PET TPU PEEK

Description
Material: Stainless Steel Drying Material: Hygroscopic Plastic
Application: PA, PET, TPU, PLA, PEEK Drying Method: Dry Hot Air
Voltage: 380V/50Hz/3Phase Condition: New
Warranty: 12~36 Months Certification: CE,ISO
High Light:

PA Industrial Desiccant Dehumidifier

,

PEEK Industrial Desiccant Dehumidifier

,

Honeycomb Rotary Desiccant Dehumidifier

Rotary Industrial Desiccant Dehumidifier Honeycomb Rotor For PA PET TPU PEEK​

ORD-H Honeycomb Desiccant Dehumidifier Dryer.pdf



NAMING PRINCIPLE of Honeycomb Dehumidifying Dryer



ORD – xxxH



① ②



① Orste Rotary Honeycomb Dehumidifier



② Drying Air Flow (m3/hr), H: Honeycomb Rotor



FEATURES of Honeycomb Dehumidifying Dryer



1. P.I.D temperature controller to accurately control regenerative temperature.

2. Adopt Japan Nichias molecular sieve honeycomb rotor which ensures good stable dehumidifying effect.

3. Detachable cooler is equipped for over-sized model, easy for maintenance and keeps a low return air temperature.

4. High density return air filter ensures no contamination to the honeycomb.

5. Temperature indication function for dehumidified outlet air temperature.

6. Efficient oil filter is optional, 99% of oil can be removed, thus product quality can be greatly improved.

7. Dew point of air after dehumidified can be lower than -40oC.

8. For Models below ORD-400H, air-cooling is optional ensures low energy consumption and high efficiency.



APPLICATION of Honeycomb Dehumidifying Dryer



ORD-H series rotary honeycomb dehumidifiers are mainly used to dry hygroscopic engineering plastics or regrind materials. Under ideal conditions, the dew-point of dehumidified dry air can be lower than -40oC, the largest of which can provide dry air up to a quantity of 4,000 m3/hr.



WHAT IS “HONEYCOMB ROTOR”?



The main part of honeycomb rotor is made by ceramic fiber and organic additives, sintered under high temperature with molecular sieve or silica gel as basic material to bond together with inside of honeycomb to form the honeycomb-like structure. Unlike common desiccant or rotary molecular sieve, then, when aging, will produce dust, followed by process air to drying hopper, to pollute plastic material. Honeycomb rotor offers unlimited long service life and can be cleaned and not like usual molecular sieve which is easy to get saturated or requiring regular replacement. The moisture of return air is quickly absorbed by molecular sieves when passing through numerous holes within honeycomb rotor. So when coming out of rotor, can form low dew-point air. Regenerating and dehumidifying have similar principle and run simultaneously. The only difference is that the two process winds are in opposite direction.



PARAMETERS of Honeycomb Dehumidifying Dryer



Model ORD-

60H

80H

120H

150H

200H

300H

400H

500H

700H

1000H

1500H

2000H

3000H

4000H

Rege. Heater (kw)

2.5

2.5

2.5

2.5

2.5

8

8

12

12

15

20

20

32

40

Rege. Blower (kw)

0.2

0.2

0.2

0.2

0.4

0.7

0.7

1.3

1.6

1.6

2.2

3

2.2*2

3×2

Process Heater (kw) *

2.5

4

6

8

12

15

18

21

24

32

58

80

96

128

Process Blower (kw)

0.4

0.7

0.7

1.3

1.1

3

4

5.5

5.5

8.5

12.5

18.5

12.5×2

15×2

Drying Air Quantity (m3/hr)

60

80

120

150

200

300

400

500

700

1000

1500

2000

3000

4000

Pipe Dia. (inch)

2〞

2〞

2〞

2〞

2〞

3〞

3〞

4〞

5〞

5〞

6〞

8〞

8〞

12〞

Dimension

H (mm)

1260

1510

1360

1560

1560

1745

1745

1935

1935

2145

2060

2060

2240

2060

W (mm)

480

600

600

660

660

900

700

900

900

1300

1410

1410

2035

2750

D (mm)

755

761

761

1050

1050

1100

1255

1380

1380

1550

2150

2150

2160

2250

Weight (kg)

145

170

220

260

285

320

330

470

480

700

1010

1300

1600

2200



Notes:

“*” stands for drying heater is optional for working with “optical” hoppers.

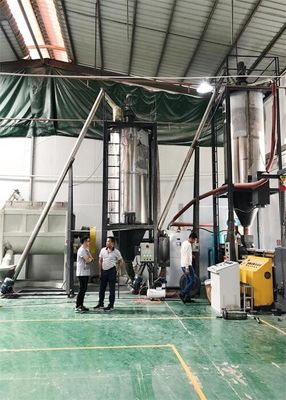

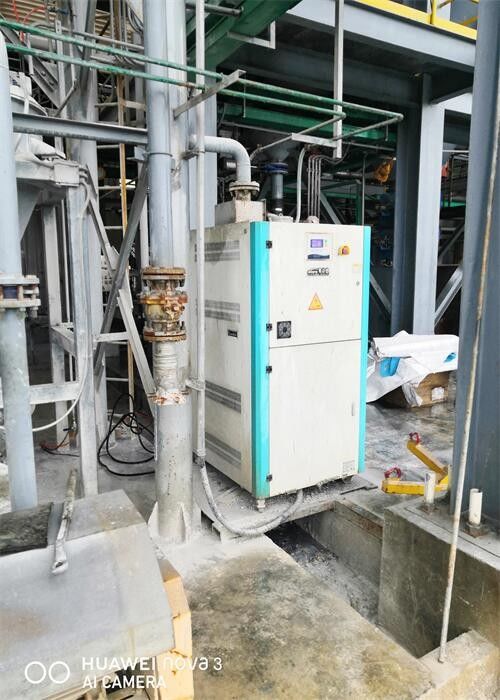

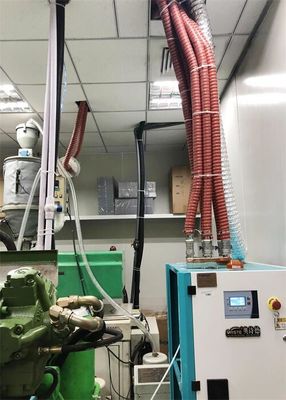

Application Cases of Honeycomb Dehumidifying Dryer



Rotary Industrial Desiccant Dehumidifier Honeycomb Rotor For PA PET TPU PEEK 0Rotary Industrial Desiccant Dehumidifier Honeycomb Rotor For PA PET TPU PEEK 1



Matters Needing Attention



Electrical installation of the machine should be done by qualified electricians.



Connecting the cooling water (if needed) after the machine is installed in a appointing place, make sure the inlet and outlet water pipe is in good condition.



Before connecting to AC Power Source, turn power switch to OFF position. While AC power source is connected, make sure specifications and overload protection rating of the power switch are suitable and reliable. When the machine is under care or maintenance, turn off both power switch and automatic operation switch.
