Plastic TPU PA PC Desiccant Dehumidifier Dehumidifying Dryer Good Drying Effect

NAMING PRINCIPLE of Hot Air Hopper Dryer

OCD – xx/xxxH

① ② ③

① Orste “Three-in-one” Compact Dryer

② Hopper Capacity (L)

③ Dehumidifying Air Quantity (m³/hr)

H: Honeycomb Rotor Type

Product Features of Hot Air Hopper Dryer

• The OCD compact dryers can be equipped with up to four fully insulated drying bins to suit the required total throughput.
• OCD compact dryers are the most effective way of conditioning hygroscopic plastic granules for processing and removing surface moisture.
• The use of corrosion resistant stainless steel ensures a long lifetime and avoids contamination of the plastic granules.
• Transparent window design for filter makes it convenient to monitor the condition of filter.
• Material-contact surface of hopper is specially made of dust-free mirror-like stainless steel, it is suitable for the production of optical lens or food standard plastic products production.
• High-density return air filter ensures no contamination to the material in the conveying of materials.
• For models below OCD-450/300H, air-cooling methods is applied, which ensures low energy-saving and convenient for movement.

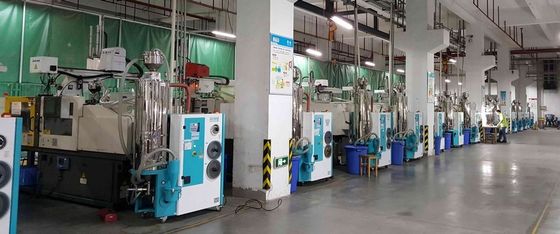

Application of Hot Air Hopper Dryer

ORSTE “Optical” Dehumidifying Dryers provides the advantages of a consistent dew point and maximum energy efficiency. They combine the function of dehumidifying, drying and two-stage conveying into one compact machine, specified for the production of “optical class” and “food standard” products, such as lens, LGP, disposable lunch box etc. The quality desiccant honeycomb rotor provides continuous and constant low dew-point air which can be lower than -40 ^oC under ideal conditions.

Product Specification / Parameters of Hot Air Hopper Dryer

Product Details of Hot Air Hopper Dryer

For models below OCD-160/120H, cyclone dust separators are standardly equipped for removing the dust from the material, in this way, the filters are not easy to be blocked, the blower of the machine can work longer than normal ones. The final product can be better also.

The bottom of the hopper dryer is equipped with a material discharge plate, it is convenient for cleaning the hopper when changing different kinds of plastic materials.

All the electrical parts are located in the electrical cabinets and are all well protected from possible damage by hit and keep danger aways from operators. The electrical cabinet is locked when the machine is running, only the appointed personnel is alowed to open the electrical cabinet for maintenance or repair. Safety comes first when operating the machine.
