Product Details:
|
| Material: | SUS Steel | Application: | Pellet Weighing Packing |
|---|---|---|---|
| Color: | Can Be Customized | Options: | Robots, Sealing Machine |
| Warranty: | 12 Months | Condition: | New |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Overseas Third-party Support Available,Overseas Service Center Available | Capacity: | 3 T/H Max. |
| Highlight: | Intelligent Weighing And Packaging Machine,Pellet Weighing And Packaging Machine |
||

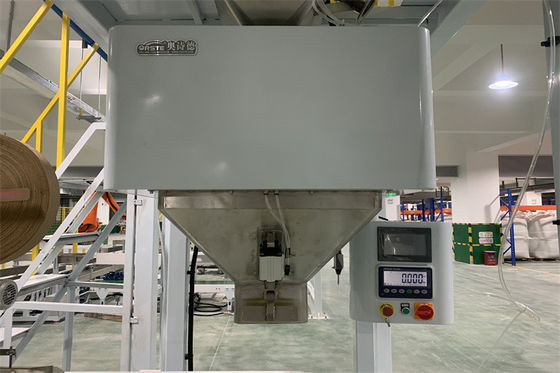

The material discharge valve is installed next to the material discharge outlet, the machine starts auto-weighing when the bag is successfully placed and starts the switch, the discharge valve opens automatically, the material weight is synchronously transferred to to the PLC controller by the weighing sensor, the controller calculates the opening angle of the material discharge valve, closing time and other parameters,then the setting valve is achieved. The PLC control will renew the control parameters after each bag of material is finished packing. The more bags of material is finished, the faster the weighing and packing speed is.
Notes: Once re-start, the system will default that the new material is going to be weighed and packed, it will auto identify the property of the material and the weighing speed will go from slow to fast.
| Interactive Mode | PLC + touch screen input | Weighing Precision | ±0.02%(25KG±5g) |
| Control Valve | Stepping Motor Control | Packing Capacity | 4T/H (Subject to the material) |
| Weighing Algorithm | Optimization Iteration Method | Voltage | 220V |
| Weighing Target | 5-40 KG (Adjustable) | Total Power |
<1.0KW |
1. It saves much labor cost by auto loading, auto weighing & packing of the materials.
2. More precise than traditional weighing method, and achieves the accuracy of 25KG±5g.
3. Large weighing & packing capacity, the maximum capacity can be up to 4 T / H.
4. Intelligent identification of materials, can be compatible to all pellets, like PP, PC, ABS and etc., no need manually correction of the weighing parameters.
5. The material discharge valve is controlled by high-torque stepping motor with high-precision parts, there is no problems like material leakage, material blocking.
6. The machine can auto calculating the total output and warning of over-packing. You can reset and re-start weighing and packing after the setting value.
7. Touch screen input makes it is easy to operate.
8. Inspection & cleaning window ensures easy cleaning when changing materials.
9. The machine height, ON/ OFF button are designed based on ergonomics, comfortable for operating.
10. Optional for vacuum pump, hot melting, stitches and auto piling line.

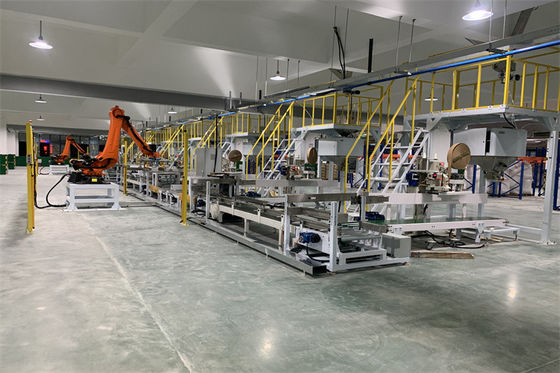

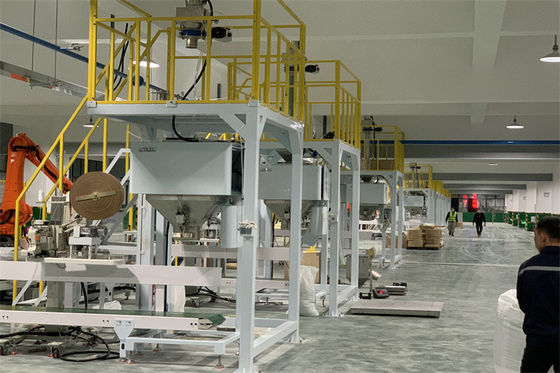

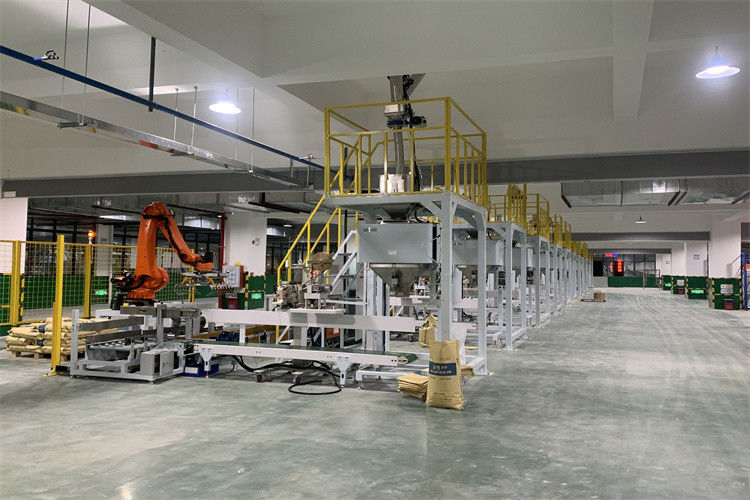

The intelligent pellet weighing packing machine is mainly applied in plastic pellet, fertilizer pellet, rice and other similar applications, the machine can be put directly bellow the hopper dryer or storage silo if the plant height is high enought. It can also be install on the floor and use and vacuum auto loader to feed the pellet to the interim hopper at the feed port of the packing machine, if the plant height is not high.
The pellet weighing packing machine is always customized for different applications, please feel free to contact us if you are interested in it.
